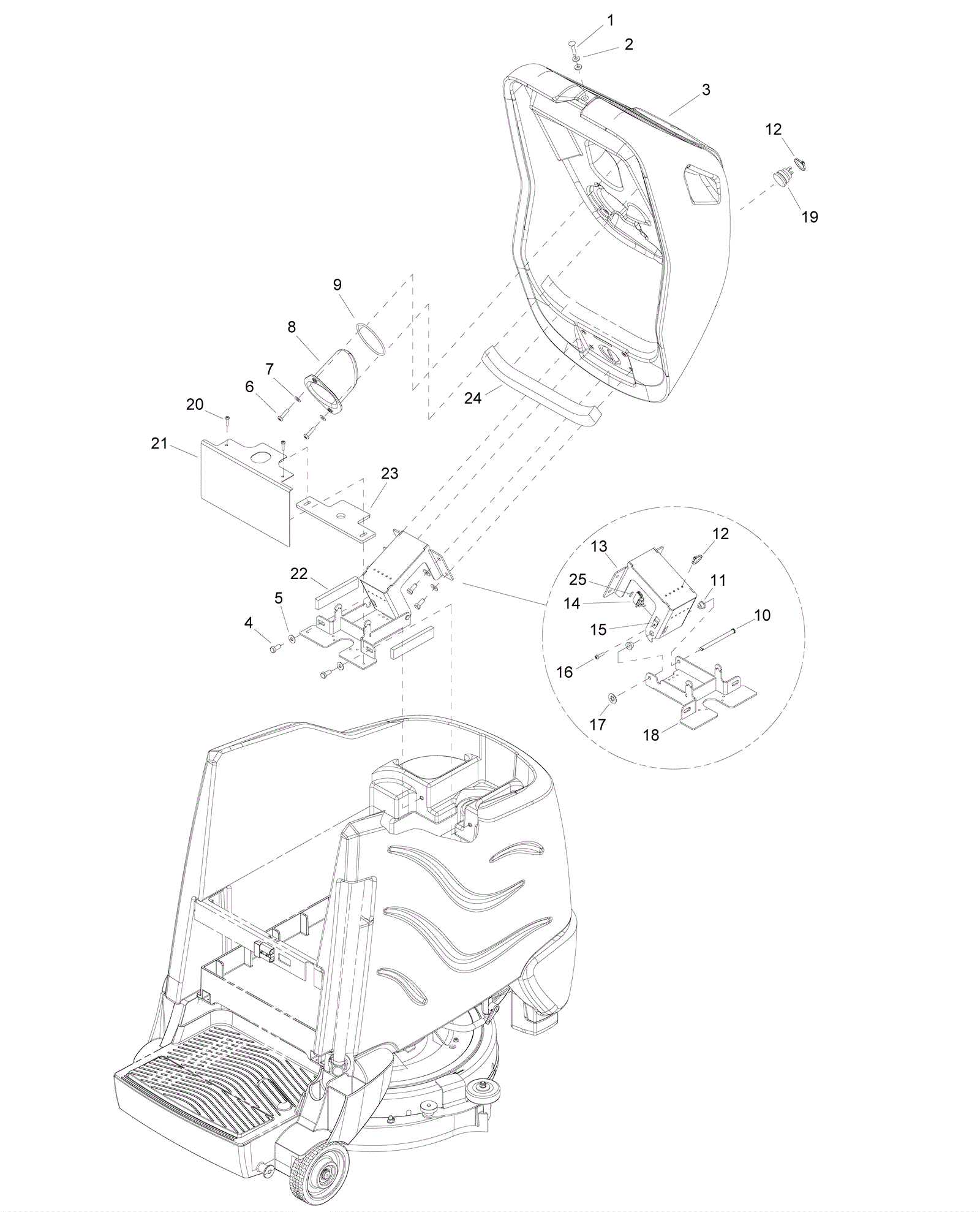

Chariot2 Iscrub20D (Gray) Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-2580 Screw 1/4-20 x 1 1/4 carriage (OBSOLETE) $2.84 1 usually ships 7-19 days
2 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
3a 273-7941 Console $782.10 1 (disk models only) usually ships 7-19 days
3b 273-7942 Console $892.10 1 (deluxe and cylindrical models only) usually ships 7-19 days
4 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 6 ships same day
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
6 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 2 ships same day
7 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
8 173-5953 Dome $59.40 1 usually ships 7-19 days
9 173-5954 Dome gasket $29.59 1 usually ships 7-19 days
10 173-5955 Clevis pin (OBSOLETE) $8.09 1 usually ships 7-19 days
11 273-5628 Flanged bearing $5.50 2 ships same day
12 273-3820 11 inch cable tie $0.41 6 ships same day
13 173-5956 Upper hinge bracket $122.10 1 usually ships 7-19 days
14 273-5414 Interlock switch $19.58 1 ships same day
15 173-2576 Nut 10-24 tinnerman (OBSOLETE) $5.35 1 usually ships 7-19 days
16 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
17 173-5957 Nut 5/16 push lock (OBSOLETE) $1.91 1 usually ships 7-19 days
18 173-5958 Lower hinge bracket $106.15 1 usually ships 7-19 days
19 173-5602 Horn $147.40 1 usually ships 7-19 days
20 999-1990 Screw #10-32 X 1/2 phillips pan head rolling thread zinc $0.99 2 ships same day
21 173-5959 Cover plate $61.05 1 usually ships 7-19 days
22 173-5960 Bracket gasket $8.64 2 usually ships 7-19 days
23 173-5951 Steering shaft gasket $28.16 1 usually ships 7-19 days
24 273-5718 Foam $17.68 1 (deluxe only) usually ships 7-19 days
25 273-4361 Gasket $2.37 1 usually ships 7-19 days
