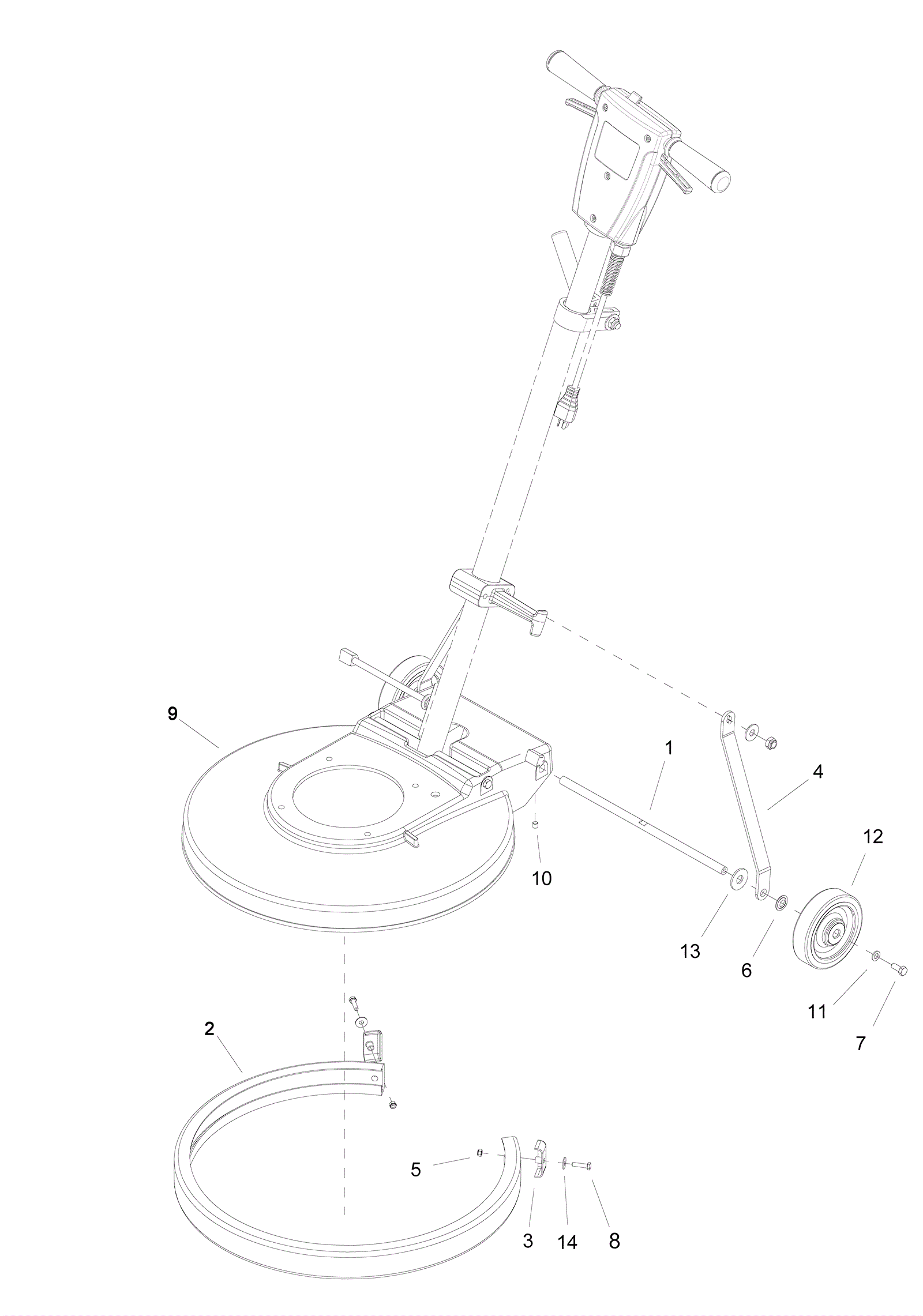

BOLT 17 Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-2829 Main axle $35.20 1 usually ships 7-19 days
2 173-2832 17 inch extrusion bumper (OBSOLETE) $99.00 1 usually ships 7-19 days
3 173-2836 Fixing ram protection $13.64 2 usually ships 7-19 days
4 173-2841 Handle adjustment link $17.63 2 usually ships 7-19 days
5 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
6 173-2834 Nut 1/2 flat push $11.33 2 usually ships 7-19 days
7 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
8 273-4042 Screw M6 1 x 22mm $0.99 2 usually ships 7-19 days
9 273-7708 17 inch deck (gray) $297.00 1 usually ships 7-19 days
10 999-1339 Screw M8-1.25 x 8mm set cup point $0.99 1 ships same day
11 999-1267 Washer M8 flat zinc $0.99 2 ships same day
12 173-4664 Wheel (gray) $37.40 2 usually ships 7-19 days
13 999-0972 Washer M14 flat $2.75 2 ships same day
14 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
