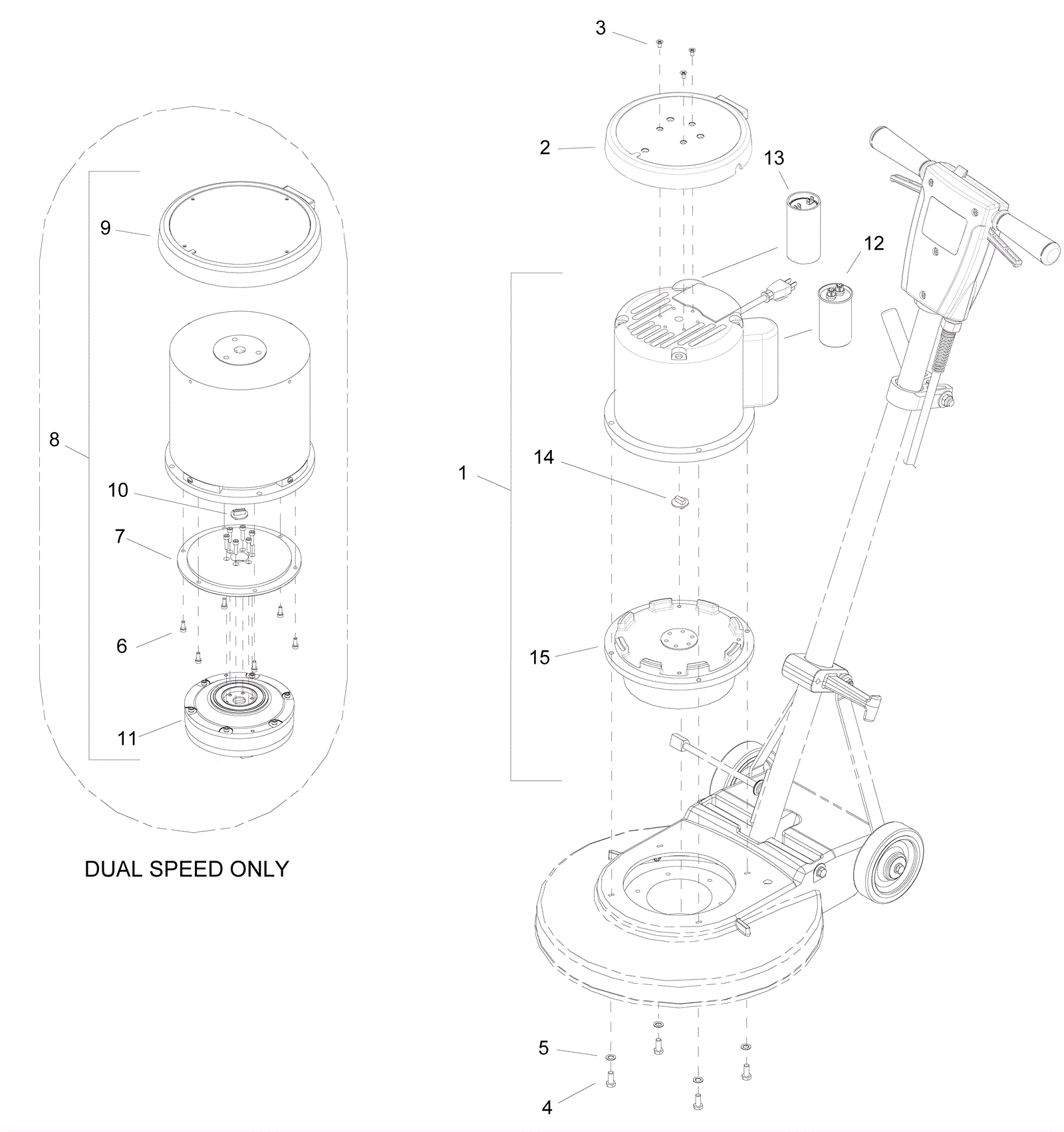

BOLT 17 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-4049 Motor $1,518.00 1 usually ships 7-19 days
2 173-4665 Motor cover $105.06 1 usually ships 7-19 days
3 273-4050 Screw 10-32 $0.99 3 usually ships 7-19 days
4 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
5 999-1053 Washer 5/16 internal star lock stainless steel $0.99 4 ships same day
6 173-4675 Screw M5 x .8 x 15mm socket head $3.58 6 usually ships 7-19 days
7 173-4676 Motor adapter plate (OBSOLETE) $64.35 1 usually ships 7-19 days
8 273-3166 115V 1.75HP 2 speed motor assembly $711.70 1 (includes 6-11) usually ships 1-5 days
9 173-4671 Motor cover assembly $109.45 1 usually ships 7-19 days
10 170-0694 Odum coupling $13.41 1 ships same day
11 273-6464 Gearbox $584.10 1 usually ships 7-19 days
12 273-4051 Capacitor $77.55 1 usually ships 7-19 days
13 273-4052 Start capacitor $46.20 1 usually ships 7-19 days
14 273-4053 Shear coupling $23.76 1 usually ships 7-19 days
15 273-4054 Gearbox $787.60 1 usually ships 7-19 days
