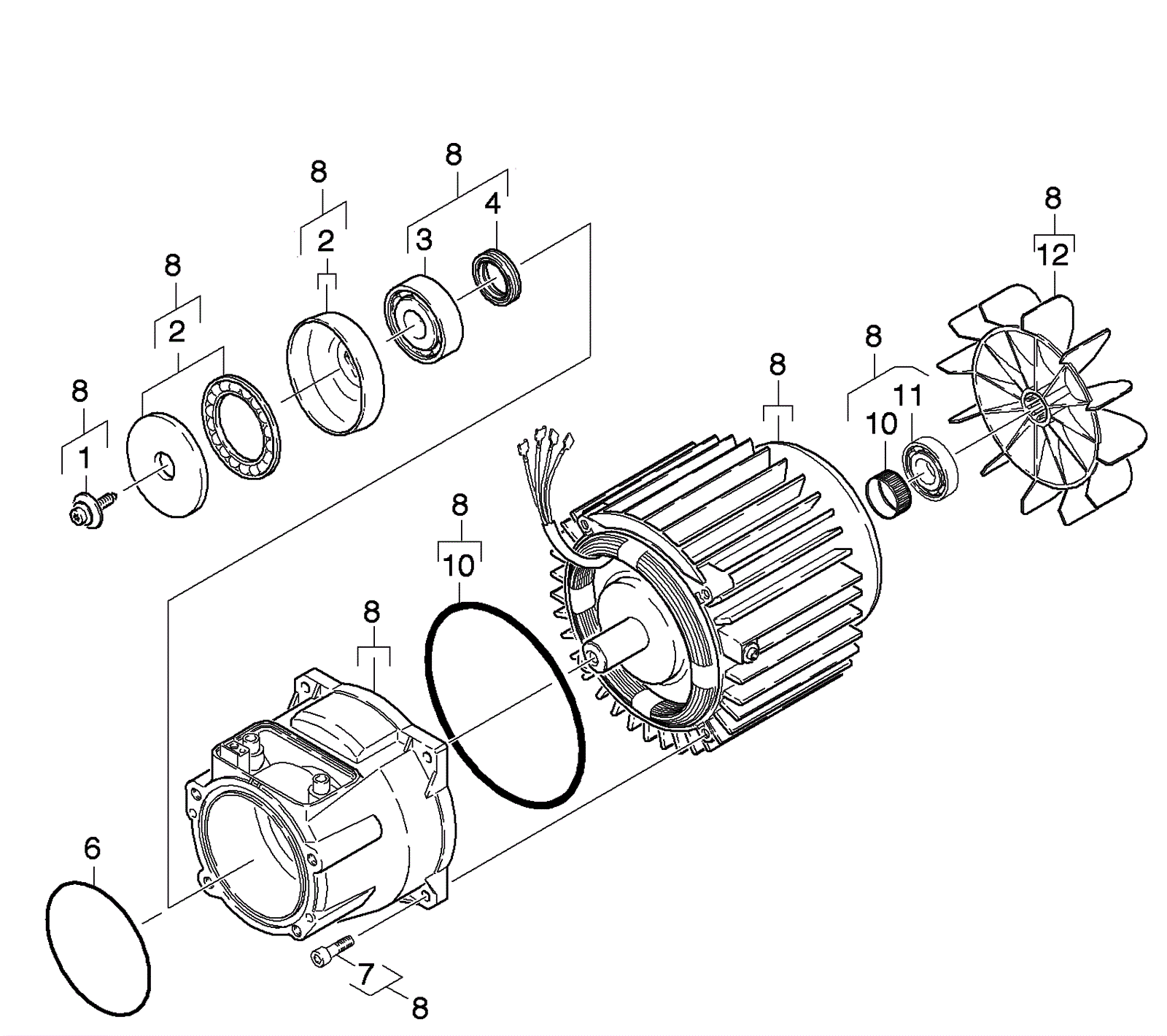

K5.85M Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-2117 Screw M6 x 19mm cylinder head $1.50 1 usually ships 7-19 days
2a 273-2118 Wobble plate $156.15 1 (version 1) usually ships 7-19 days
2b 273-2119 Wobble plate $92.39 1 (version 2) usually ships 7-19 days
3 173-7678 Ball bearing $5.49 1 usually ships 7-19 days
4a 273-2120 Radial shaft seal ring $19.25 1 (version 2) usually ships 7-19 days
4b 273-2121 Grooved ring $13.95 1 (version 1) usually ships 7-19 days
6 273-8020 Gasket $5.17 1 usually ships 7-19 days
7 173-7679 Screw M5 x 20mm st r2r $2.37 4 usually ships 7-19 days
8 273-2122 Motor $495.00 1 (includes 1-4,7,10-12) usually ships 7-19 days
10 273-2124 Joint ring $5.50 1 usually ships 7-19 days
11 173-3082 Ball bearing $51.26 1 ships same day
12 273-2125 Blower wheel $10.99 1 usually ships 7-19 days
N/S 273-2123 Tolerance ring $2.79 1 usually ships 7-19 days
