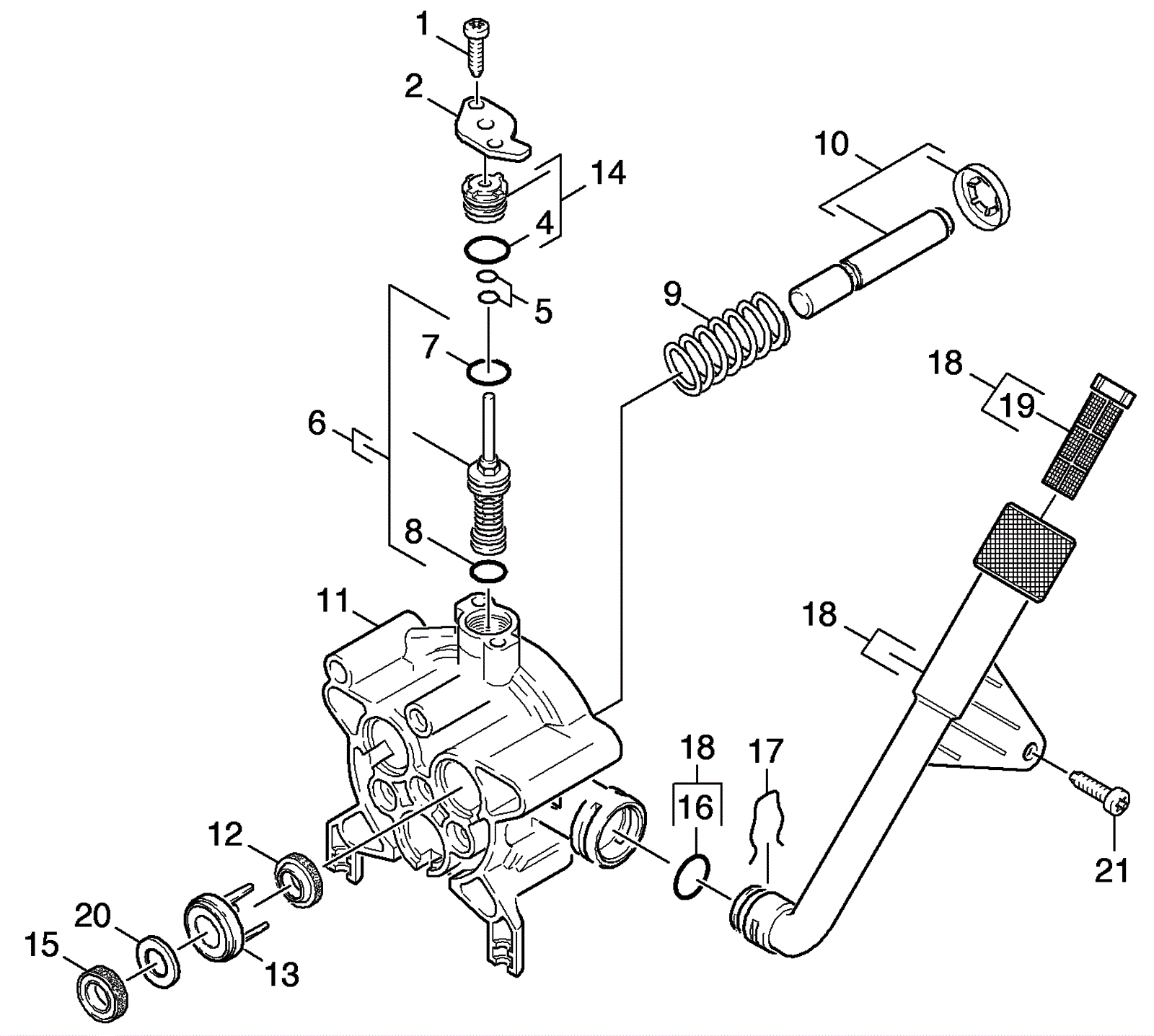

K5.85M Thrust Guidance Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-2092 Screw M6 x 20mm self tapping $0.99 2 usually ships 7-19 days
2 273-2093 Cover $4.38 1 usually ships 7-19 days
4 273-2094 O ring seal $7.10 1 usually ships 7-19 days
5 273-2095 O ring seal $5.03 1 usually ships 7-19 days
6 273-2096 Excess complete $50.92 1 (includes 7-8) usually ships 7-19 days
7 273-2097 O ring seal $1.64 1 usually ships 7-19 days
8 273-2098 O ring seal $0.99 1 usually ships 7-19 days
9 273-7992 Pressure spring $3.56 3 usually ships 7-19 days
10 273-2099 Piston complete $29.70 3 usually ships 7-19 days
11 273-2100 Piston guidance $120.99 1 usually ships 7-19 days
12 273-7996 Grooved ring $5.89 3 usually ships 7-19 days
13 273-2101 Washer $2.35 3 usually ships 7-19 days
14 273-2102 Moulded part complete $7.43 1 (includes 4) usually ships 7-19 days
15 273-7981 Grooved ring $5.47 3 usually ships 7-19 days
16 273-2103 O ring seal $1.76 1 usually ships 7-19 days
17 273-2104 Clamp $1.41 1 usually ships 7-19 days
18 273-2105 Water intake tube $30.88 1 (includes 16 and 19) usually ships 7-19 days
19 273-2106 Filter (OBSOLETE) $2.18 1 usually ships 7-19 days
20 273-7977 Washer $1.45 3 usually ships 7-19 days
21 183-0323 Screw M5-.8 x 10mm stainless steel $1.88 1 usually ships 1-5 days
