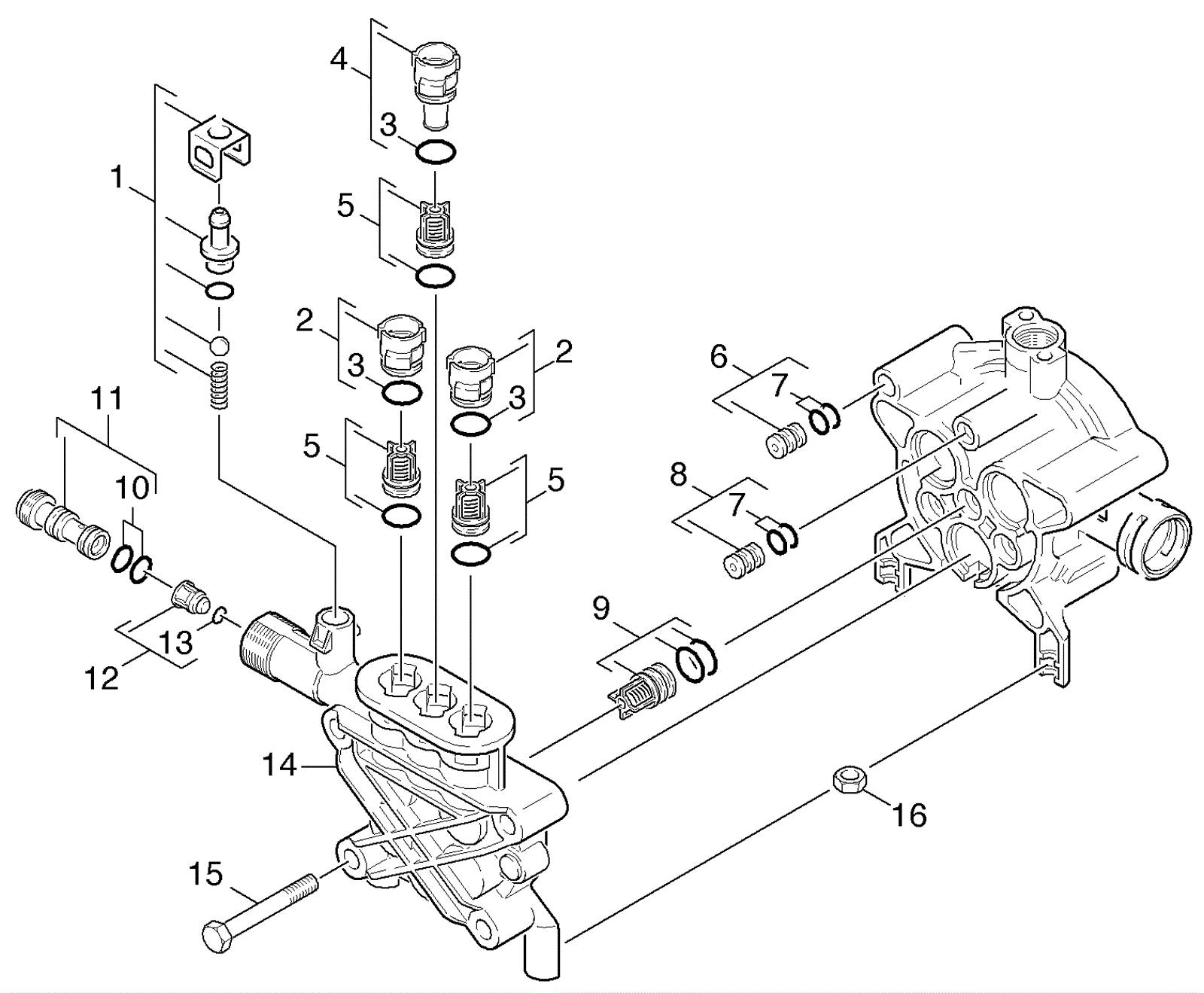

K5.85M Cylinder Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-2083 Spare part set neutrally $24.94 1 usually ships 7-19 days
2 273-7986 Plug $8.49 2 (includes item 3) usually ships 7-19 days
3 273-2084 O ring seal $2.49 3 usually ships 7-19 days
4 273-7985 Plug $8.37 1 (includes item 3) usually ships 7-19 days
5 273-7984 Pressure valve $21.63 1 usually ships 7-19 days
6 273-2086 Throttle $10.12 1 (includes 7) usually ships 7-19 days
7 273-2087 O ring seal $4.24 4 usually ships 7-19 days
8 273-7980 Joining piece $24.35 1 (includes 7) usually ships 7-19 days
9 273-2088 Valve $37.73 1 usually ships 7-19 days
10 273-7976 Gasket $4.48 2 usually ships 7-19 days
11 273-2089 Nozzle insert $27.17 1 (includes 10) usually ships 7-19 days
12 273-2090 Valve pin $11.00 1 (includes 13) usually ships 7-19 days
13 273-2091 O ring seal $1.94 1 usually ships 7-19 days
14 273-7983 Cylinder head $62.70 1 usually ships 7-19 days
15 999-9079 Screw M8 x 80mm hex head stainless steel $4.41 4 ships same day
16 183-0262 Hex nut $1.35 2 usually ships 1-5 days
