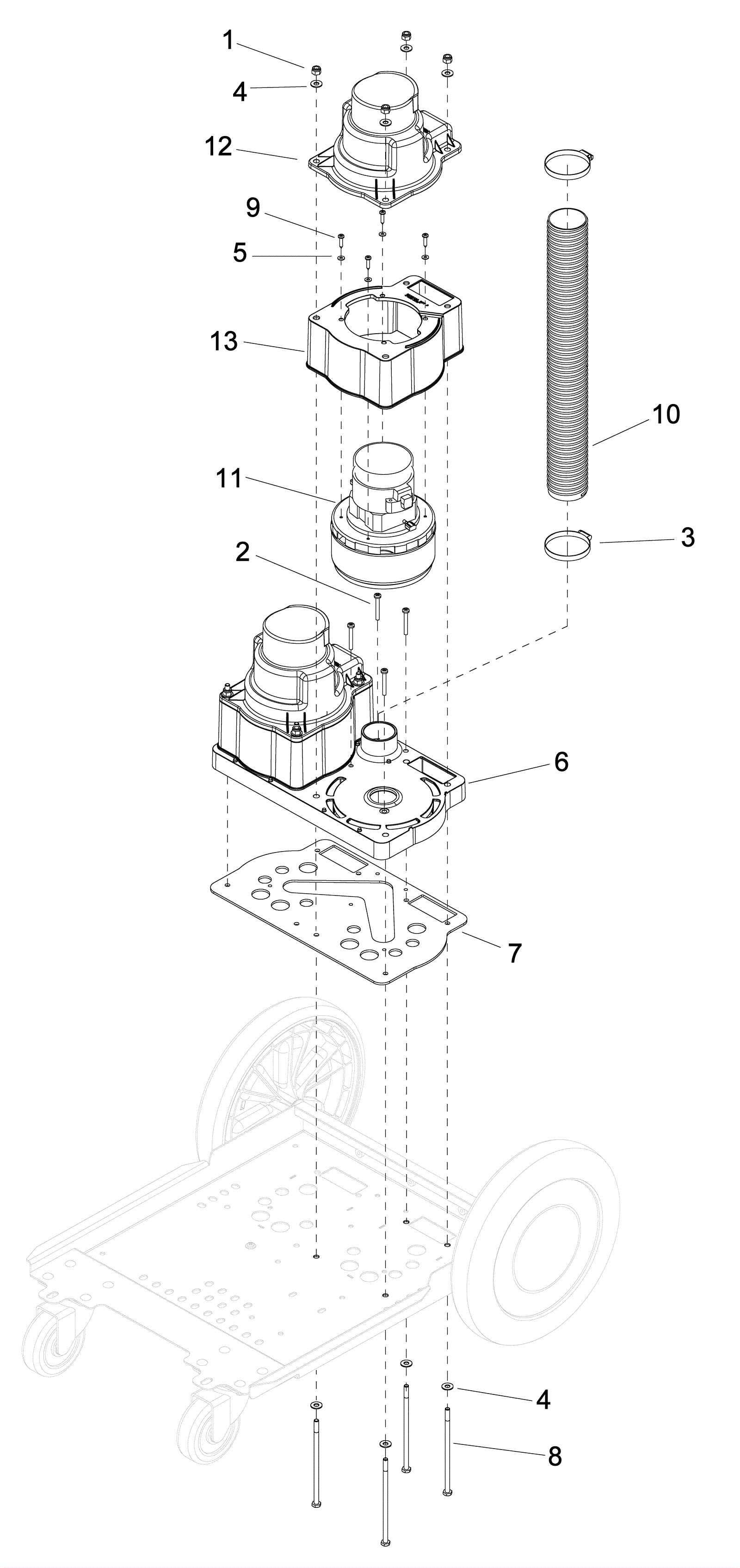

DOMINATOR 17 Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
2 999-1631 Screw 10-32 x 1 1/2 pan head phillips stainless steel $0.99 5 usually ships 1-5 days
3 273-6930 Hose clamp $3.03 2 usually ships 7-19 days
4 999-0123 Washer 1/4 SAE flat zinc plated $0.99 16 ships same day
6 273-6931 Dual vacuum manifold $67.01 1 usually ships 7-19 days
7 273-6932 Manifold gasket (OBSOLETE) $58.01 1 usually ships 7-19 days
8 999-9145 Screw 1/4-20 x 5 1/2 cap grade 18-8 stainless steel $5.94 8 usually ships 11-24 days
9 999-0870 Screw 8 x 3/4 pan head phillips stainless steel $0.99 8 ships same day
10 273-6934 Vacuum hose 2 x 18 1/2 inches $79.50 1 usually ships 7-19 days
11a 273-6935 120V 2 stage vacuum motor $164.28 2 ships same day
11b 273-4024 Carbon brush (pkg of 2) $10.50 1 usually ships 7-19 days
12 273-6936 Vacuum motor cover $39.90 2 usually ships 7-19 days
13a 273-6938 Vacuum housing $63.50 1 usually ships 1-5 days
13b 273-6937 Vacuum motor base $53.50 2 usually ships 1-5 days
