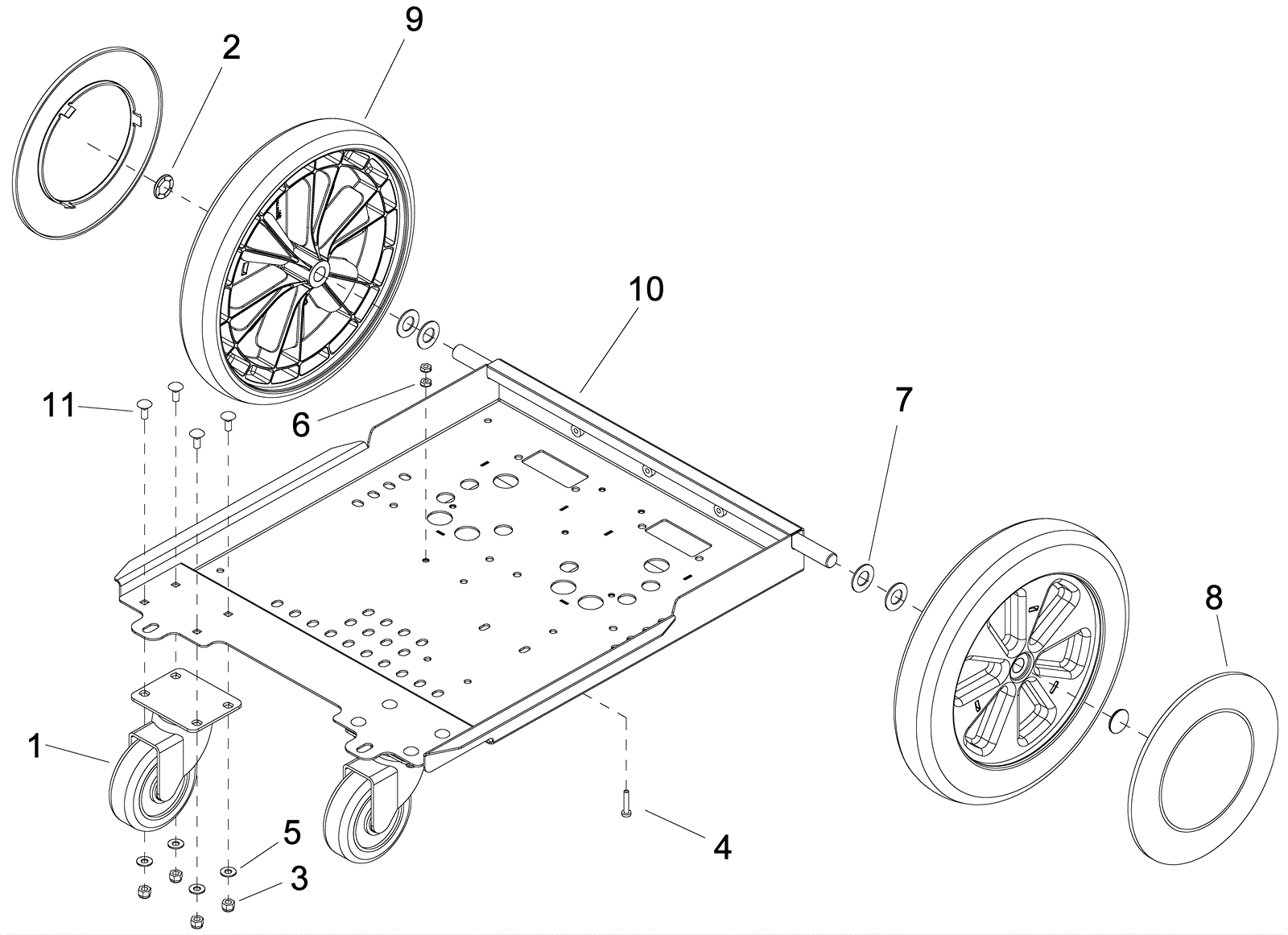

DOMINATOR 17 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-0557 4 inch swivel caster wheel $56.50 2 usually ships 7-19 days
2 173-2064 Axle cap $4.50 2 usually ships 7-19 days
3 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
4 173-7043 Screw 10-32 x 1 phillips pan head green $4.30 1 usually ships 1-5 days
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 8 ships same day
6 173-2472 Nut 10-32 with star washer $0.90 2 usually ships 1-5 days
7 999-9127 Washer 5/8 SAE flat stainless steel $0.99 4 ships same day
8 273-5748 Wheel hubcap $12.10 2 usually ships 7-19 days
9 273-6890 12 inch wheel $157.00 2 usually ships 7-19 days
10 273-6891 Frame with built in axle $477.00 1 usually ships 1-5 days
11 273-5894 Screw 1/4-20 x 5/8 carriage head stainless steel $3.00 8 usually ships 1-5 days
