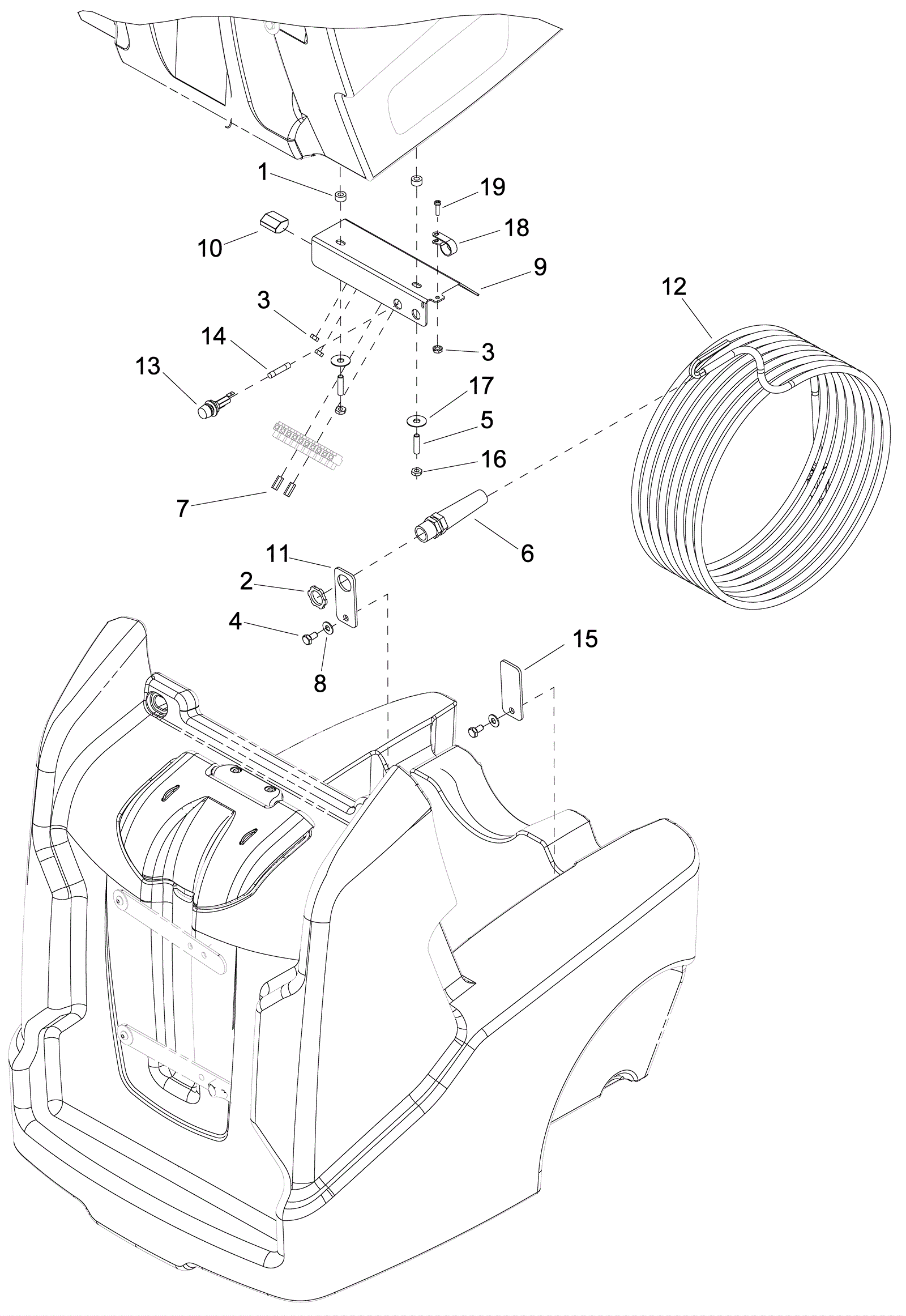

DOMINATOR 17 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6879 Nylon spacer $5.05 2 usually ships 1-5 days
2 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.90 1 usually ships 7-19 days
3 173-2472 Nut 10-32 with star washer $0.90 3 usually ships 1-5 days
4 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 2 ships same day
5 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
6 173-2081 Strain relief $14.90 1 usually ships 7-19 days
7 173-1520 Nylon standoff $6.05 2 ships same day
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
9 273-6880 Electrical bracket $74.50 1 usually ships 1-5 days
10 273-6881 Connector $1.82 1 usually ships 1-5 days
11 273-6882 Strain relief bracket $4.20 1 usually ships 1-5 days
12 273-6883 14/3 cord assembly 25 foot (black) $77.00 1 usually ships 7-19 days
13 273-6884 Fuse holder $26.40 1 usually ships 7-19 days
14 273-4214 4amp fuse $4.90 1 usually ships 7-19 days
15 273-6888 Cord bracket $4.15 1 usually ships 1-5 days
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
17 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
18 173-1139 5/8 nylon clamp $1.38 1 usually ships 1-5 days
19 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 1 ships same day
