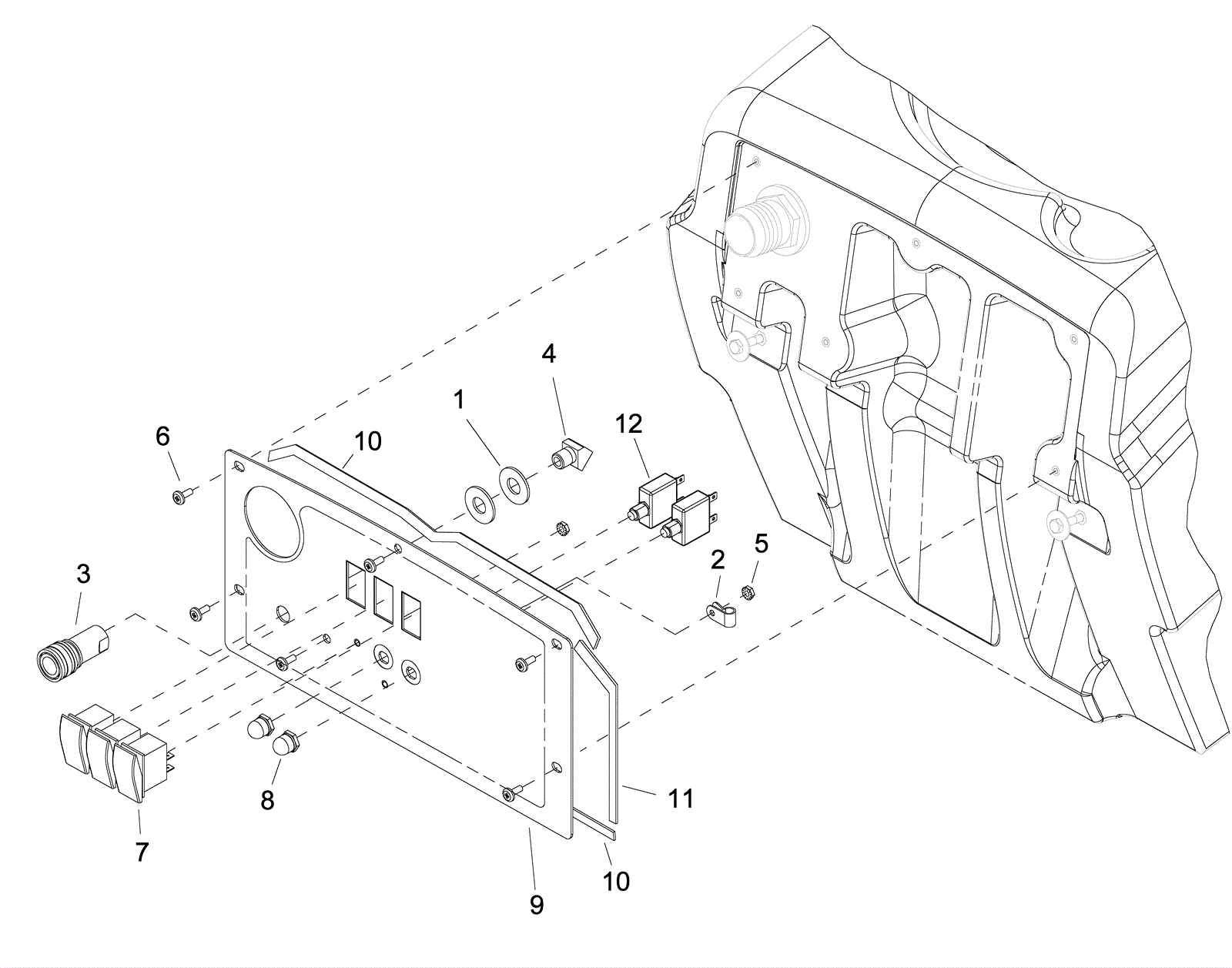

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1685
|
Washer 9/16 USS flat |
2 |
|
|
2 |
173-2094
|
P clamp |
1 |
|
|
3 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
4 |
173-1928
|
Elbow |
1 |
|
|
5 |
173-2472
|
Nut 10-32 with star washer |
2 |
|
|
6 |
999-1341
|
Screw 10-32 x 2 1/2 truss head phillips zinc |
6 |
|
|
7 |
173-1154
|
SPST 15amp rocker switch |
3 |
|
|
8 |
173-1522
|
3/8 inch circuit breaker boot |
2 |
|
|
9 |
273-4213
|
Control panel |
1 |
|
|
10 |
273-6873
|
Gasket |
2 |
|
|
11 |
273-6874
|
Gasket |
4 |
|
|
12 |
273-6875
|
13amp circuit breaker |
2 |
|
|
