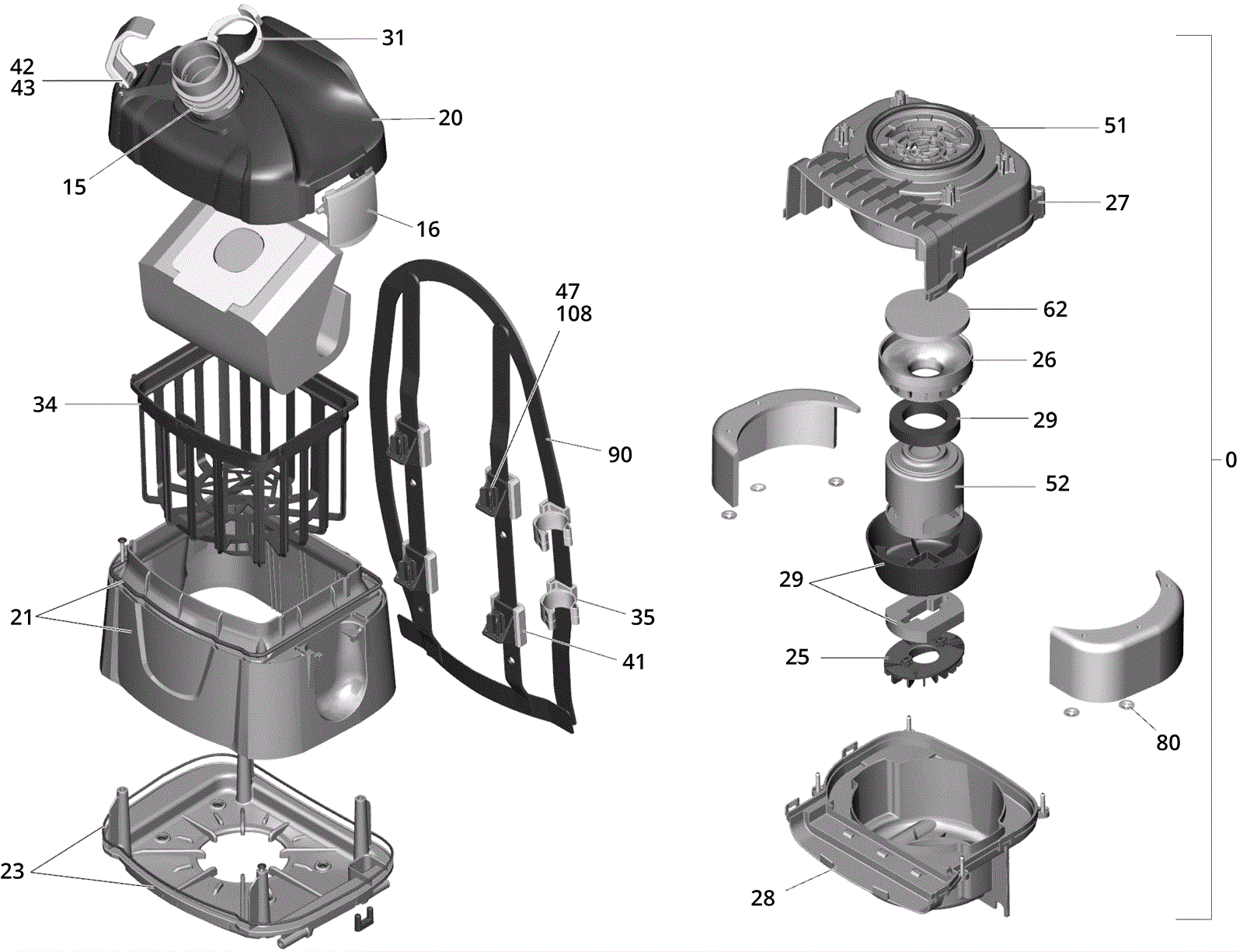

BV 5/1 Bp Body Assembly

#PartDescriptionPriceReqNotesAvailability
0 273-0735 Pack assembly $1,507.00 1 (includes 15-108) usually ships 14-22 days
15 273-0714 Suction connection (OBSOLETE) $7.15 1 usually ships 14-22 days
16 273-0715 Locking clip (yellow) $24.31 2 usually ships 14-22 days
20a 273-0716 Cover $73.15 1 (includes 20b) usually ships 14-22 days
20b 273-0780 D4 gasket $4.40 1 usually ships 14-22 days
21 273-0717 Tank $109.45 1 usually ships 14-22 days
23b 273-0781 D2.5 gasket $5.06 1 usually ships 14-22 days
25 273-0719 Turbine seal (OBSOLETE) Call for price 1 usually ships 14-22 days
26 273-0720 Turbine seal (OBSOLETE) Call for price 1 usually ships 14-22 days
27 273-0721 Top motor housing $24.09 1 usually ships 14-22 days
28 273-0722 Bottom motor housing $22.11 1 usually ships 14-22 days
29 273-0723 Cover set (OBSOLETE) Call for price 1 usually ships 14-22 days
31 273-0724 Locking ring $11.22 1 usually ships 14-22 days
34 273-0725 Filtering basket $136.40 1 usually ships 14-22 days
35 273-0726 Clip (yellow) $8.20 2 usually ships 14-22 days
41 273-0727 Covering cap $5.45 4 usually ships 14-22 days
42 273-0728 Hook (yellow) $3.41 1 usually ships 14-22 days
43 273-0729 Hook bolt $3.52 1 usually ships 14-22 days
47 273-0730 Frame holder $8.42 4 usually ships 14-22 days
51 273-0731 Seal string $2.97 1 usually ships 14-22 days
52 273-0732 BLDC motor $349.64 1 usually ships 14-22 days
62 273-0733 Filter $35.86 1 usually ships 14-22 days
80 999-1594 Washer M5 external lock stainless steel $0.99 6 usually ships 1-5 days
90 273-0734 Frame $382.80 1 usually ships 14-22 days
108 173-5750 Screw M4-10.9 x 16mm round head $0.99 4 usually ships 14-22 days
