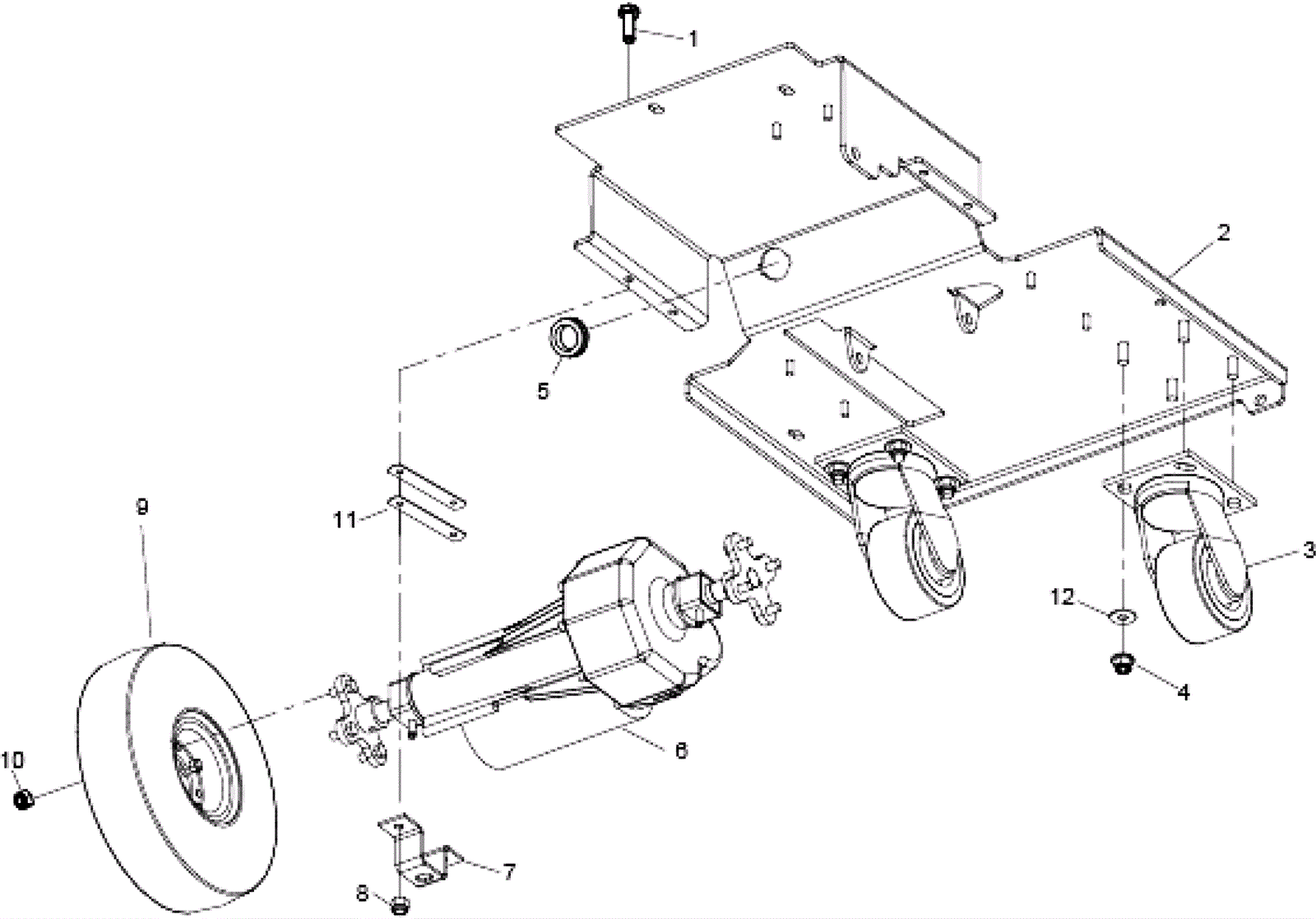

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
4 |
|
|
2 |
173-4123
|
Main frame |
1 |
|
|
3 |
173-4346
|
4 inch caster wheel |
2 |
|
|
4 |
999-0488
|
Nut 3/8-16 flange lock serrated zinc plated |
8 |
|
|
5 |
173-1681
|
Grommet |
1 |
|
|
6a |
189-0347
|
24V drive motor axle |
1 |
|
|
6b |
173-8344
|
24V transaxle brush set |
1 |
|
|
6c |
173-8346
|
Woodruff key |
1 |
|
|
7 |
173-8343
|
Transaxle mounting bracket (OBSOLETE) |
2 |
|
|
8 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
9a |
189-0349
|
10 inch non-marking foam filled wheel assembly |
1 |
|
|
9b |
173-1701
|
10 inch knobby wheel assembly |
2 |
|
|
9c |
173-1699
|
10 inch solid wheel |
1 |
|
|
9d |
273-3854
|
10 inch poly fill wheel (OBSOLETE) |
1 |
|
|
9e |
273-7156
|
10 inch nonmarking polyfill wheel (OBSOLETE) |
1 |
|
|
10 |
999-0296
|
Nut 5/16-24 nylon insert lock stainless steel |
8 |
|
|
11 |
173-3198
|
Spacer plate |
4 |
|
|
12 |
999-0120
|
Washer 3/8 SAE flat |
8 |
|
|
