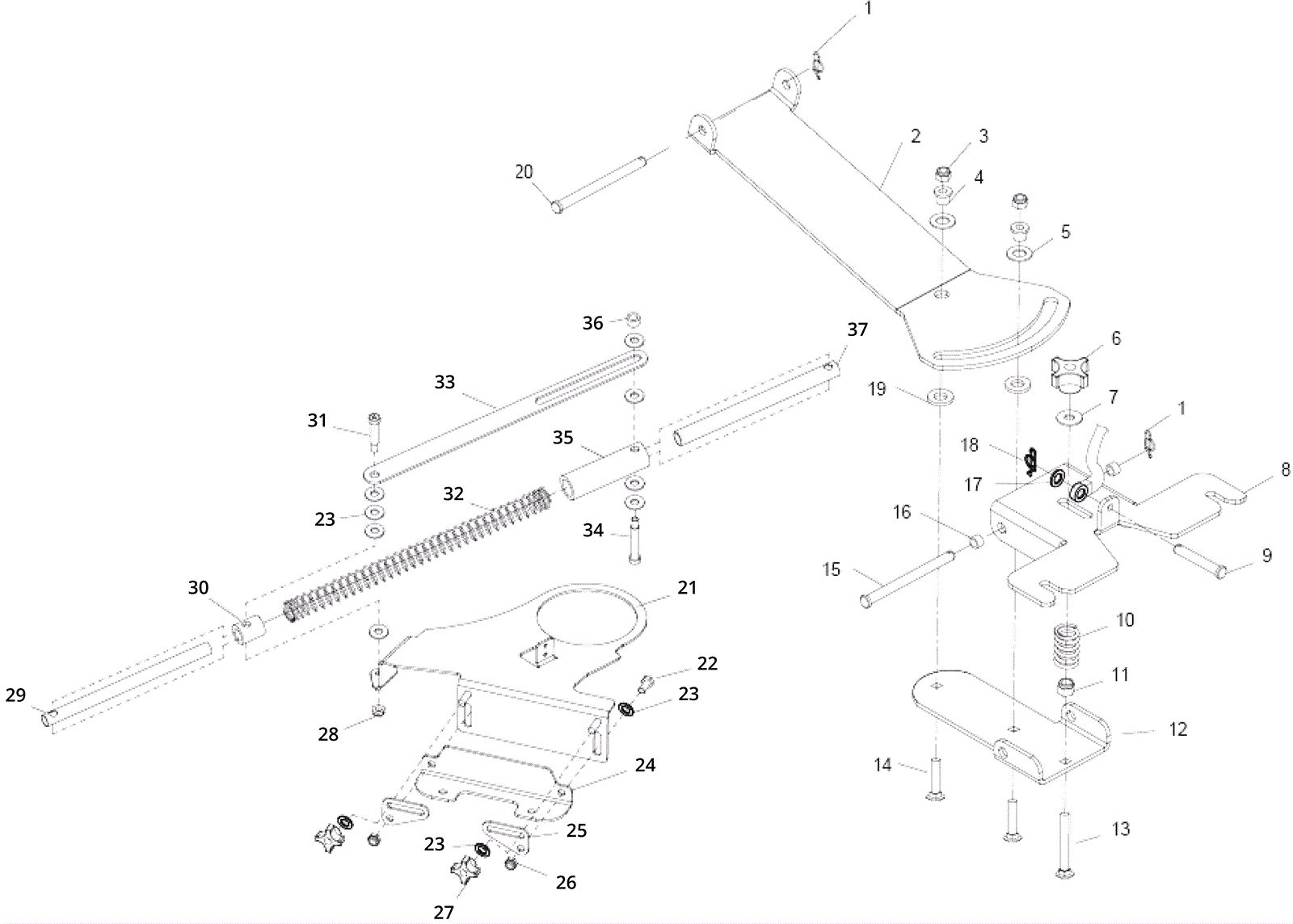

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-1593
|
Cotter ring (OBSOLETE) |
2 |
|
|
2 |
173-8336
|
Squeegee pivot lift bracket |
1 |
|
|
3 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
4 |
173-3116
|
Flanged bearing |
2 |
|
|
5 |
173-2815
|
Washer 33/64 x 1 thrust |
2 |
|
|
6 |
173-1025
|
Knob |
1 |
|
|
7 |
373-1106
|
Washer |
1 |
|
|
8 |
173-8337
|
Squeegee mount plate |
1 |
|
|
9 |
173-3153
|
Clevis pin |
1 |
|
|
10 |
173-1656
|
Compression spring |
1 |
|
|
11 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
|
12 |
173-3154
|
Pivot bracket |
1 |
|
|
13 |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
1 |
|
|
14 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
2 |
|
|
15 |
173-3157
|
Clevis pin |
1 |
|
|
16 |
173-1665
|
Flanged bearing |
2 |
|
|
17 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
18 |
173-1130
|
Cotter ring |
1 |
|
|
19 |
173-3963
|
Washer 1/2 thrust |
2 |
|
|
20 |
173-3401
|
Clevis pin |
1 |
|
|
21 |
173-4109
|
Squeegee pivot bracket side |
1 |
|
|
22 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
23 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
11 |
|
|
24 |
173-4110
|
Squeegee linkage side |
1 |
|
|
25 |
173-4111
|
Squeegee adjustable plate side |
2 |
|
|
26 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
27 |
173-1736
|
Knob |
2 |
|
|
28 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
29 |
173-4112
|
Wall tube stainless steel |
1 |
|
|
30 |
173-4113
|
PVC pipe |
1 |
|
|
31 |
999-0552
|
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
1 |
|
|
32 |
173-4114
|
Compression spring |
1 |
|
|
33 |
173-4115
|
Spring strut bar |
1 |
|
|
34 |
173-4116
|
Bolt 5/16 x 1 3/4 stainless steel |
1 |
|
|
35 |
173-4117
|
PVC pipe |
1 |
|
|
36 |
173-4095
|
Spacer (OBSOLETE) |
1 |
|
|
37 |
173-4118
|
Wall tube stainless steel |
1 |
|
|
