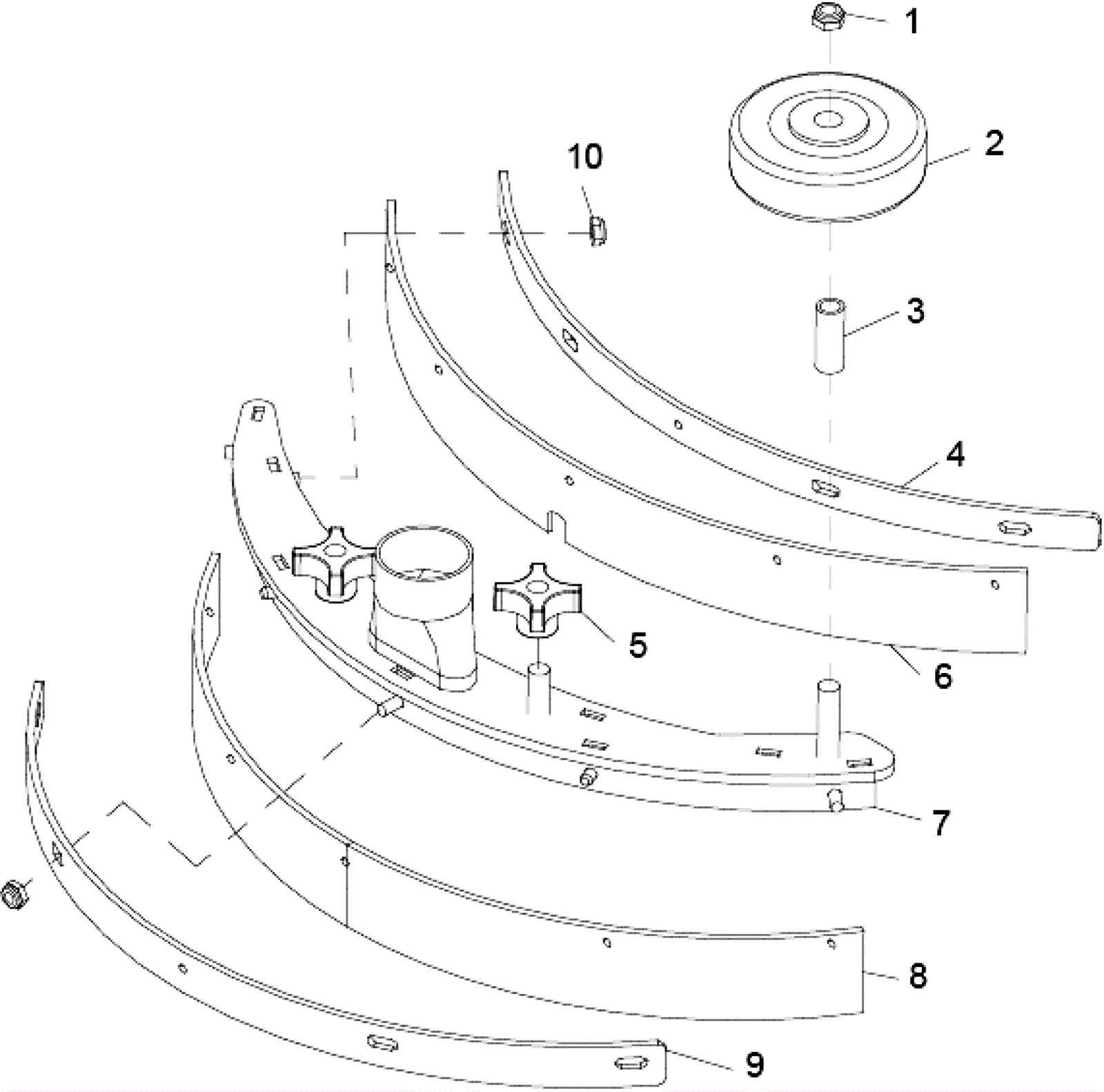

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
2 |
173-1630
|
3 inch rubber wheel |
1 |
|
|
3 |
173-1634
|
Bushing |
1 |
|
|
4 |
N/A
|
Not available |
1 |
(front squeegee blade strap) |
|
5 |
173-1736
|
Knob |
2 |
|
|
6 |
173-4370
|
Squeegee blade front |
1 |
|
|
7 |
N/A
|
Not available |
1 |
(side squeegee frame weldment) |
|
8 |
173-4141
|
Squeegee blade back side |
1 |
|
|
9 |
273-3853
|
Squeegee blade strap rear (black) (OBSOLETE) |
1 |
|
|
10 |
999-1504
|
Nut 10-24 jam insert lock stainless steel |
6 |
|
|
N/S |
173-4733
|
Washer 5/16 retension pushnut |
1 |
|
|
