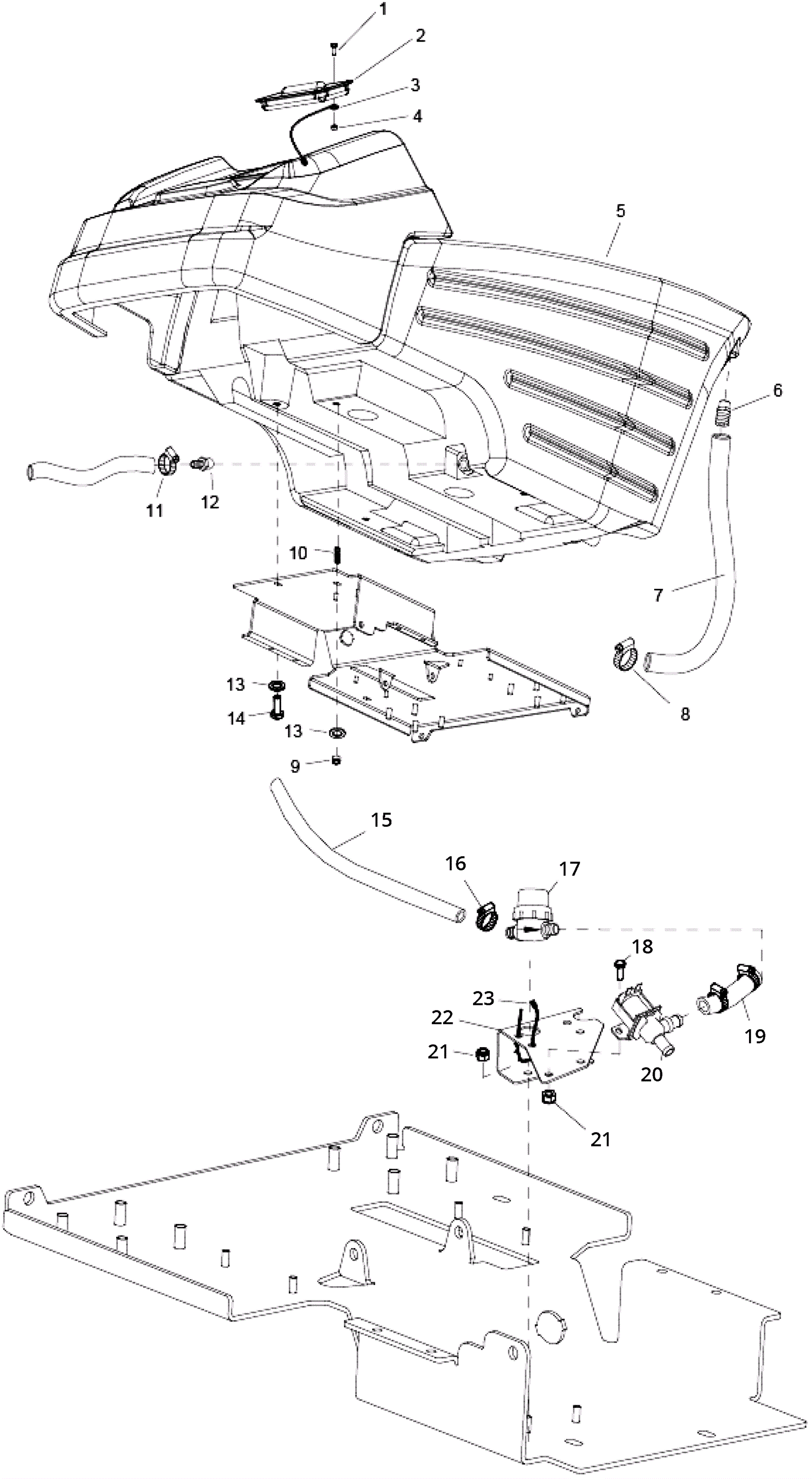

Solution Assembly

#PartDescription ReqNotesAvailability
1 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 1
2 173-2248 Solution cover 1
3 173-8262 Eye lanyard with loop 1
4 999-1542 Nut 6-32 acorn stainless steel 1
5 173-8315 Solution tank (black) 1
6 173-8316 Hosebarb (OBSOLETE) 1
7 173-8317 Solution drain hose (OBSOLETE) 1
8 173-1079 Hose clamp (OBSOLETE) 1
9 999-0423 Nut 5/16-18 nylon insert lock stainless steel 3
10 999-9117 Screw 5/16-18 x 1 3/4 socket cup point set stainless steel 3
11 173-1821 Hose clamp 1
12 173-3396 Hosebarb 1
13 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
14 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 1
15 173-8322 Wire bound hose 1/2 x 12 inch 1
16 173-1821 Hose clamp 3
17 173-8323 Solution filter assembly 1
18 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
19 173-8326 Wire bound hose 1/2 x 8 inch 1
20 189-0343 24V solenoid valve with hosebarb 1
21 999-0304 Nut 1/4-20 nylon lock jam stainless steel 4
22 173-4120 Filter solution bracket 1
23 273-3820 11 inch cable tie 2
N/S 173-8324 Solenoid diaphragm 1
N/S 173-3050 O-ring gasket 1
N/S 173-3051 Mesh strainer screen 1
N/S 173-8325 Solenoid spring kit 1
N/S 273-6141 Strainer cap 1
