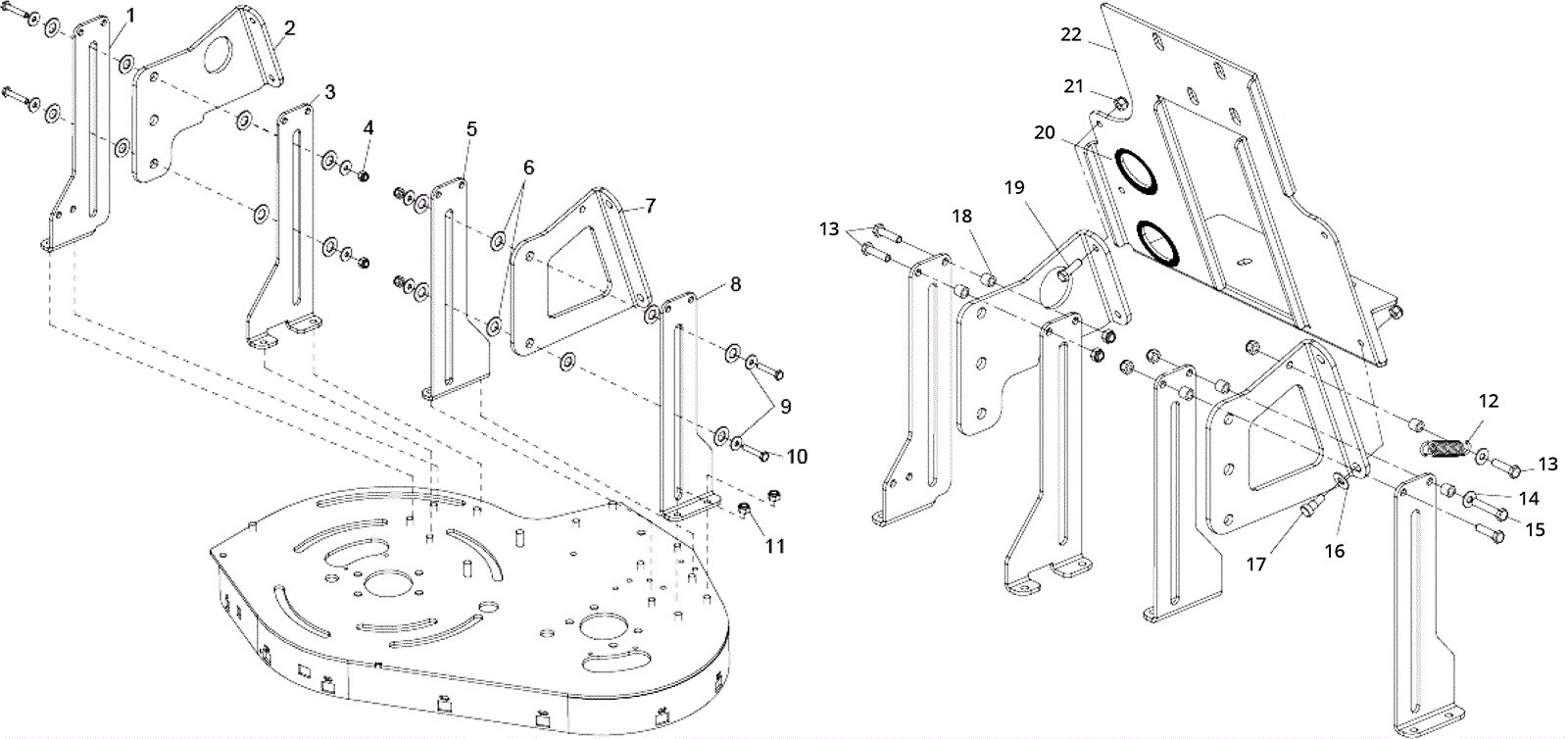

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-4070
|
Deck guide |
1 |
|
|
2 |
173-4071
|
Right deck linkage bracket |
1 |
|
|
3 |
173-4072
|
Deck guide |
1 |
|
|
4 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
4 |
|
|
5 |
173-4074
|
Deck guide |
1 |
|
|
6 |
173-3964
|
Thrust washer |
16 |
|
|
7 |
173-4075
|
Left deck linkage bracket |
1 |
|
|
8 |
173-4076
|
Deck guide |
1 |
|
|
9 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
8 |
|
|
10 |
999-0506
|
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
4 |
|
|
11 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
12 |
173-8442
|
Extension spring |
1 |
|
|
13 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
4 |
|
|
14 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
15 |
999-0551
|
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
1 |
|
|
16 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
17 |
173-1545
|
Shoulder bolt |
2 |
|
|
18 |
173-4095
|
Spacer (OBSOLETE) |
6 |
|
|
19 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
|
20 |
173-4126
|
Grommet |
2 |
|
|
21 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
9 |
|
|
22 |
173-4127
|
Tower frame |
1 |
|
|
N/S |
173-8299
|
Bearing |
4 |
|
|
