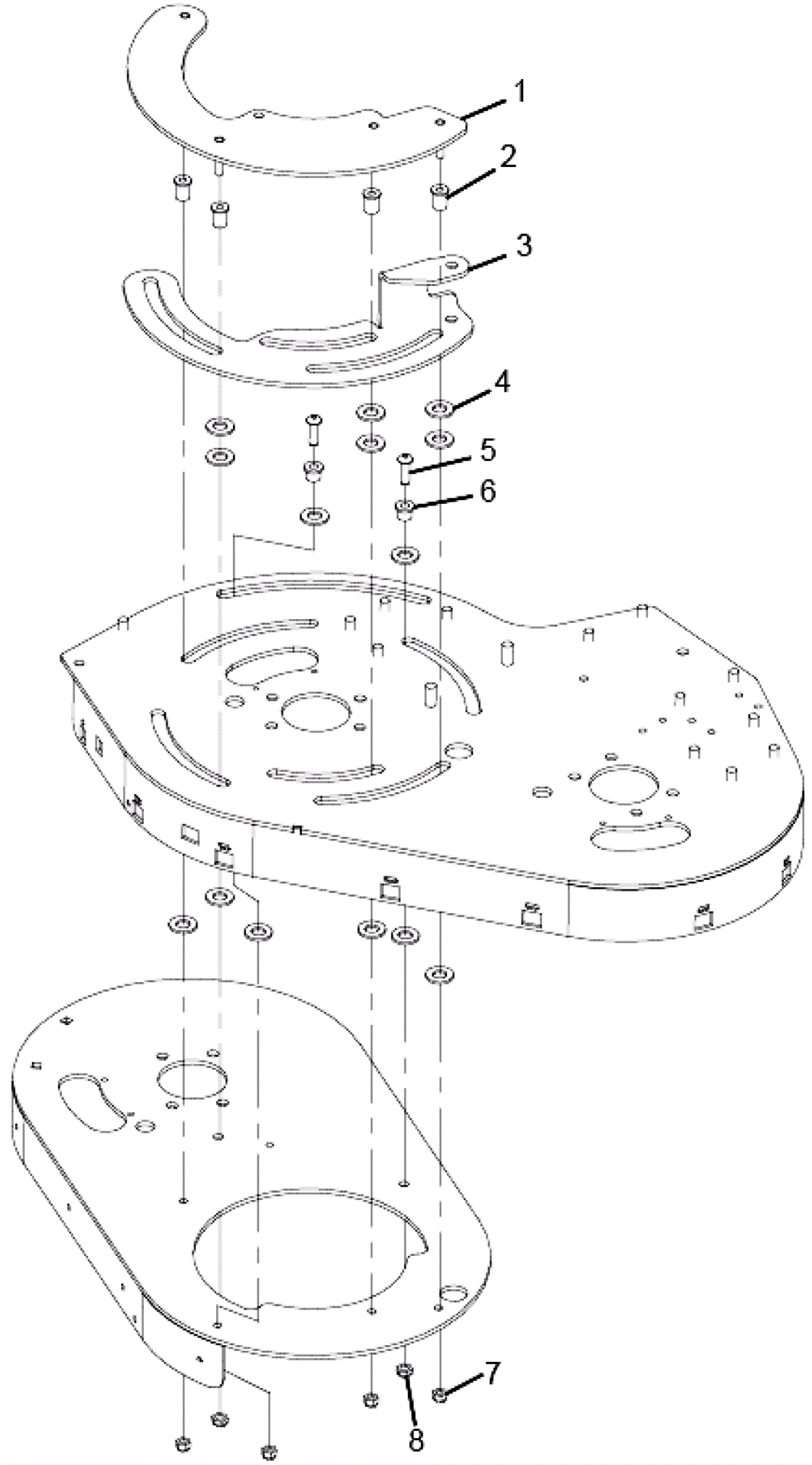

Scrubdeck Assembly

#PartDescription ReqNotesAvailability
1 173-4077 Slider bracket 1
2 173-8258 Flanged bearing 4
3 173-4078 Side actuator bracket 1
4 173-2815 Washer 33/64 x 1 thrust 14
5 999-0225 Screw 5/16-18 x 1 button head socket plain finish 2
6 173-3116 Flanged bearing 2
7 999-0304 Nut 1/4-20 nylon lock jam stainless steel 4
8 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
N/S 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
N/S 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 4
N/S 189-1562 Washer 3/8 x 3/4 sealing outer diameter 2
N/S 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 6
N/S 173-4136 Rear actuator mount bracket 1
N/S 173-4137 Front actuator mount bracket 1
N/S 173-1593 Cotter ring (OBSOLETE) 2
N/S 173-4138 Screw 3/8-16 x 6 hex head cap stainless steel 2
N/S 173-4139 Actuator tube bracket (OBSOLETE) 1
N/S 173-1590 compressed spring 4
N/S 173-3934 Nut 3/8-16 hex coupling stainless steel 2
N/S 999-0170 Nut 3/8-16 hex plain finish 2
N/S 173-3112 P clamp 1
N/S 173-1595 Clevis pin 1
N/S 173-1598 24V actuator (OBSOLETE) 1
N/S 173-3732 Clevis pin 1
N/S 173-8318 Solution fill bracket 1
