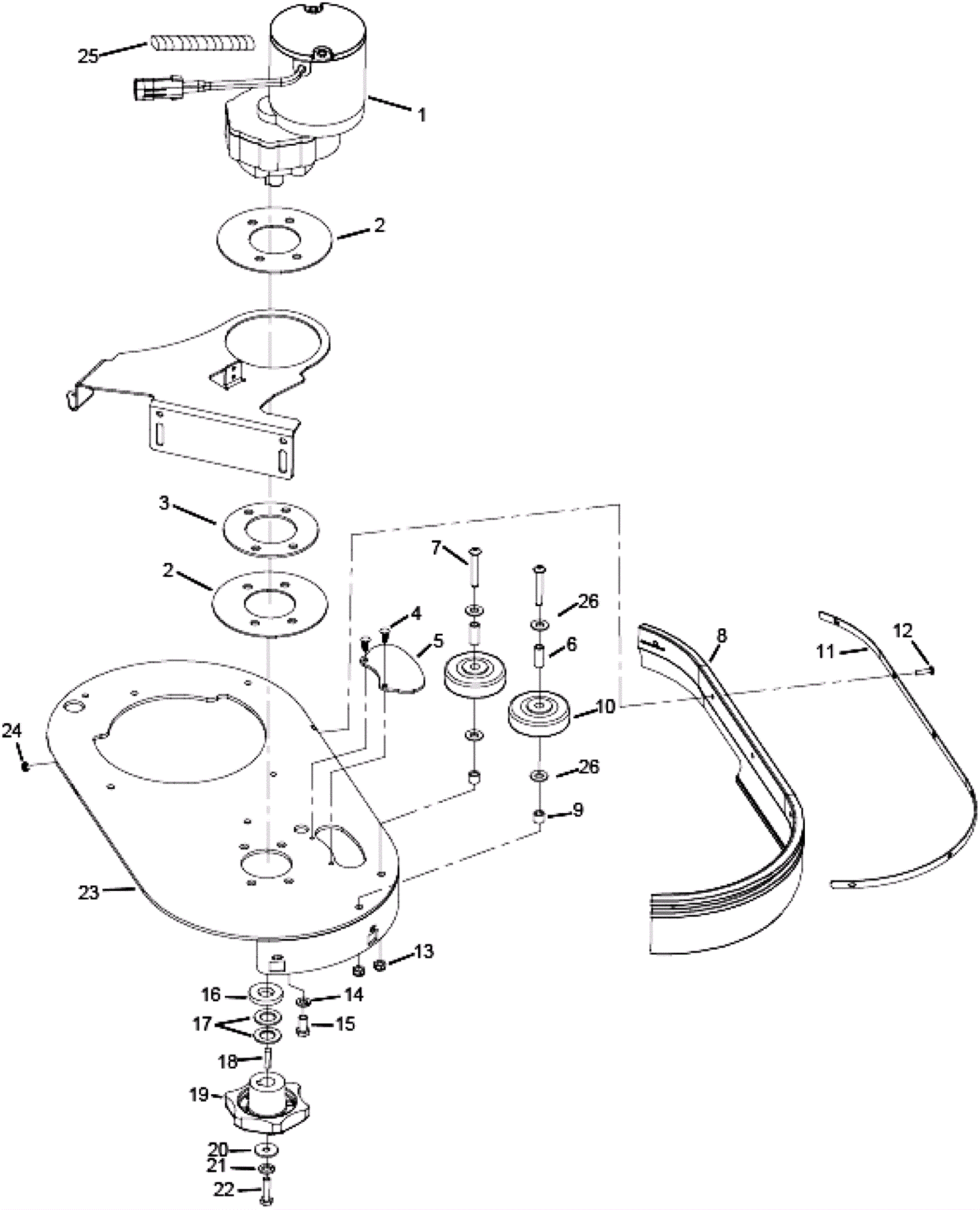

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-7270
|
36V motor assembly |
1 |
|
|
2 |
173-4092
|
Motor spacer |
2 |
|
|
3 |
173-4093
|
Squeegee top linkage spacer |
1 |
|
|
4 |
173-1577
|
Tree clip |
2 |
|
|
5 |
173-4081
|
Brush release cover |
1 |
|
|
6 |
173-1634
|
Bushing |
2 |
|
|
7 |
999-0893
|
Screw 5/16-18 x 2 hex head stainless steel |
2 |
|
|
8 |
173-4144
|
Skirt |
1 |
|
|
9 |
273-5888
|
Spacer |
2 |
|
|
10 |
173-1630
|
3 inch rubber wheel |
2 |
|
|
11 |
173-4096
|
Left skirt strap |
1 |
|
|
12 |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
6 |
|
|
13 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
14 |
999-0034
|
Washer 3/8 split lock plain finish |
4 |
|
|
15 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
|
|
16 |
173-3924
|
Washer .78 x .25 |
1 |
|
|
17 |
173-2569
|
Washer .77 x 1.31 flat stainless steel |
2 |
|
|
18 |
189-0323
|
Square keyway |
1 |
|
|
19 |
173-1569
|
Star drive hub |
1 |
|
|
20 |
999-1364
|
Washer 5/16 x 1 fender zinc finish |
1 |
|
|
21 |
999-0028
|
Washer 5/16 split lock plain finish |
1 |
|
|
22 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
1 |
|
|
23 |
173-4097
|
Right frame assembly |
1 |
|
|
24 |
999-1504
|
Nut 10-24 jam insert lock stainless steel |
6 |
|
|
25 |
273-4008
|
Duct 1/2 x 16 inch |
1 |
|
|
26 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
