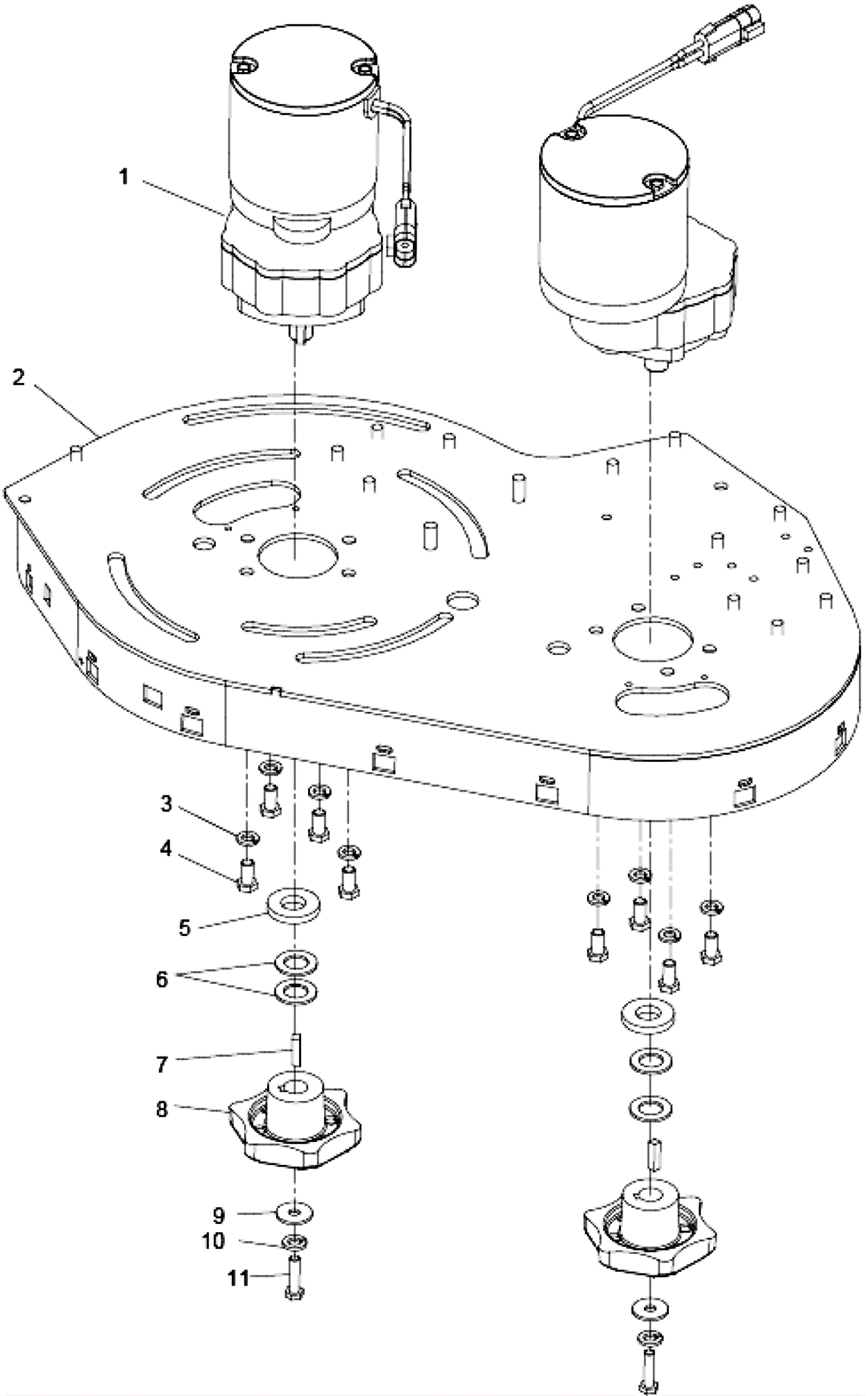

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-7270
|
36V motor assembly |
2 |
|
|
2 |
173-4101
|
Frame assembly (left) |
1 |
|
|
3 |
999-0034
|
Washer 3/8 split lock plain finish |
8 |
|
|
4 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
8 |
|
|
5 |
999-0912
|
Bolt 1/4-20 x 3 1/2 18-8 hex head stainless steel |
2 |
|
|
6 |
173-2569
|
Washer .77 x 1.31 flat stainless steel |
4 |
|
|
7 |
189-0323
|
Square keyway |
2 |
|
|
8 |
173-1569
|
Star drive hub |
2 |
|
|
9 |
999-1364
|
Washer 5/16 x 1 fender zinc finish |
2 |
|
|
10 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
11 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
2 |
|
|
N/S |
173-4100
|
Brush set |
1 |
|
|
