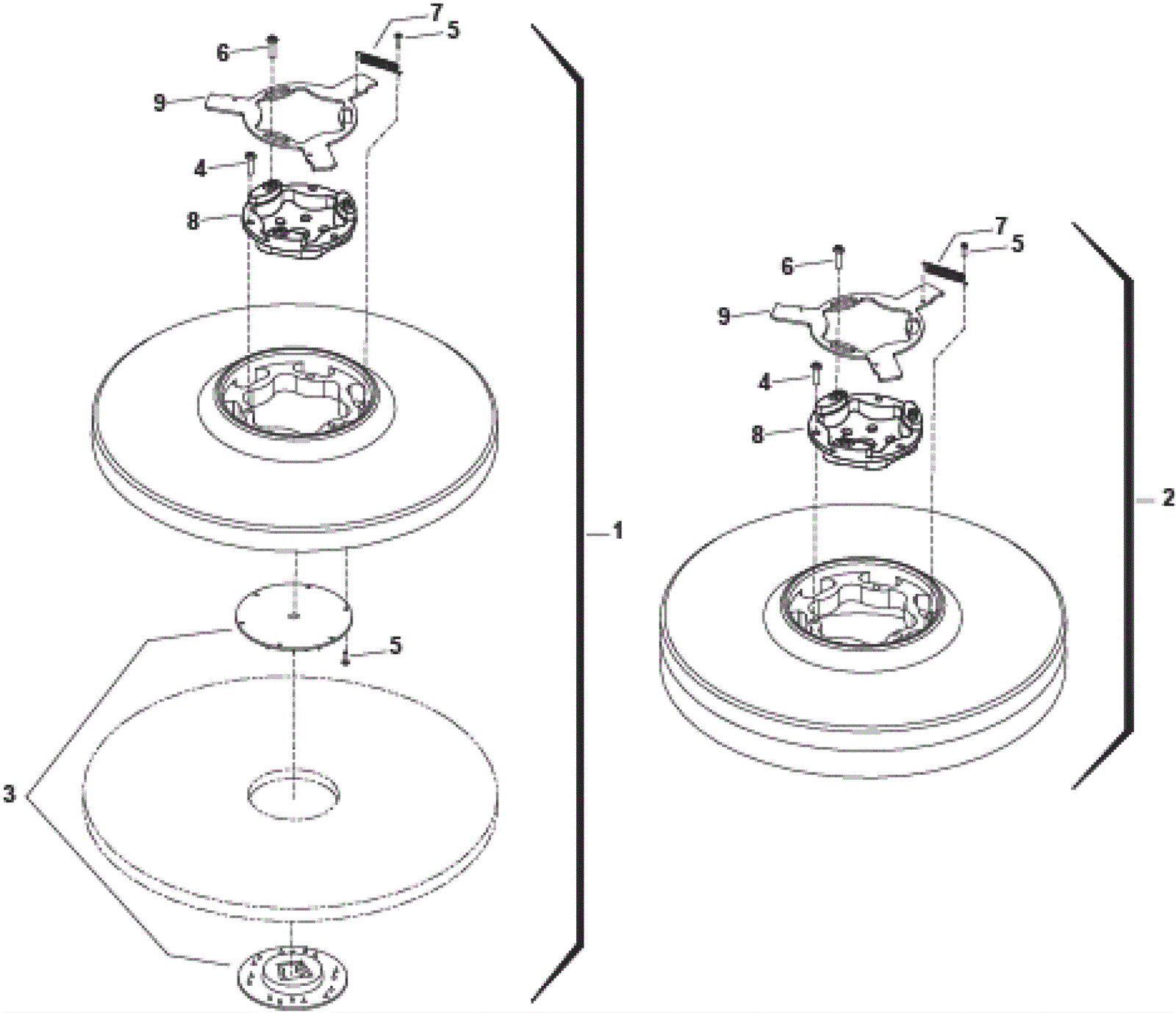

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
996-0944
|
Pad driver |
2 |
(includes 3-9) |
|
2a |
996-0945
|
Polypropelene scrubbing brush |
2 |
(includes 4-9) |
|
2b |
996-0946
|
Nylon scrubbing brush |
2 |
(includes 4-9) |
|
2c |
996-0947
|
Medium grit scrubbing brush - 180 grit |
2 |
(includes 4-9) |
|
3 |
991-2206
|
Center-Lok 3 pad holder |
1 |
|
|
4 |
999-1332
|
Screw 12-24 x 1 pan head stainless steel |
3 |
|
|
5 |
999-1389
|
Screw 8-32 x 3/4 truss head phillips stainless steel |
4 |
|
|
6 |
999-1390
|
Screw 10-12 x 3/4 truss head phillips stainless steel |
3 |
|
|
7 |
173-1558
|
Extension spring |
1 |
|
|
8 |
173-1566
|
Clutch plate |
1 |
|
|
9 |
173-1567
|
Brush release plate |
1 |
|
|
