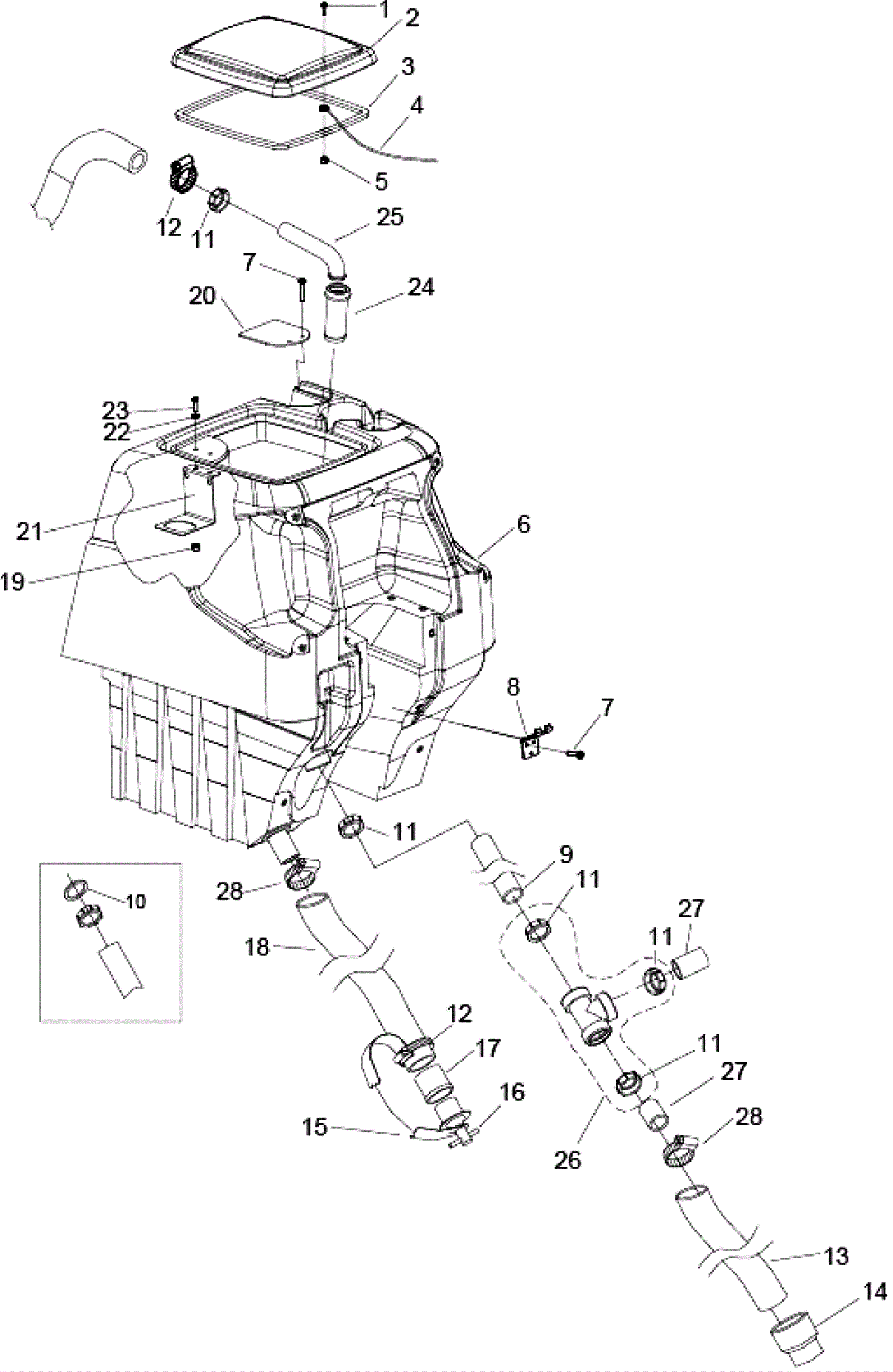

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0365
|
Screw 6-32 x 5/8 pan head phillips zinc plated |
1 |
|
|
2 |
173-2774
|
Tank lid |
1 |
|
|
3 |
173-8261
|
Tank lid gasket |
1 |
|
|
4 |
173-8262
|
Eye lanyard with loop |
1 |
|
|
5 |
999-1542
|
Nut 6-32 acorn stainless steel |
1 |
|
|
6 |
173-2813
|
Recovery tank (gray) |
1 |
|
|
7 |
173-2807
|
Screw 10-32 x 3/4 pan head phillips hi-lo |
5 |
|
|
8 |
189-4135
|
Hose mounting bracket |
1 |
|
|
9 |
173-8264
|
PVC tube 1 1/2 x 24 inch |
1 |
|
|
10 |
173-1542
|
1 1/2 compression gasket |
5 |
|
|
11 |
273-6836
|
Slip joint nut |
5 |
|
|
12 |
189-0329
|
Hose clamp |
2 |
|
|
13 |
173-2773
|
Squeegee vacuum hose 1 1/2 x 28 inch |
1 |
|
|
14 |
173-1123
|
Hose cuff 1 1/2 slip x 1 1/2 inch |
1 |
|
|
15 |
189-4123
|
Drain plug tether |
1 |
|
|
16 |
173-1213
|
Drain plug |
1 |
|
|
17 |
189-4130
|
1/2 inch hosebarb |
1 |
|
|
18 |
173-1216
|
Drain hose 1 1/2 x 24 inch |
1 |
|
|
19 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
20 |
173-8265
|
Vacuum hose cover |
1 |
|
|
21 |
173-8266
|
Vacuum intake bracket |
1 |
|
|
22 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
23 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
2 |
|
|
24 |
173-8267
|
Vacuum shut off float |
1 |
|
|
25 |
173-2307
|
1 1/2 inch waste tube |
1 |
|
|
26 |
273-3852
|
Compression tee |
1 |
(includes 11) |
|
27 |
173-4104
|
PVC tube |
2 |
|
|
28 |
273-5693
|
Hose clamp |
2 |
|
|
