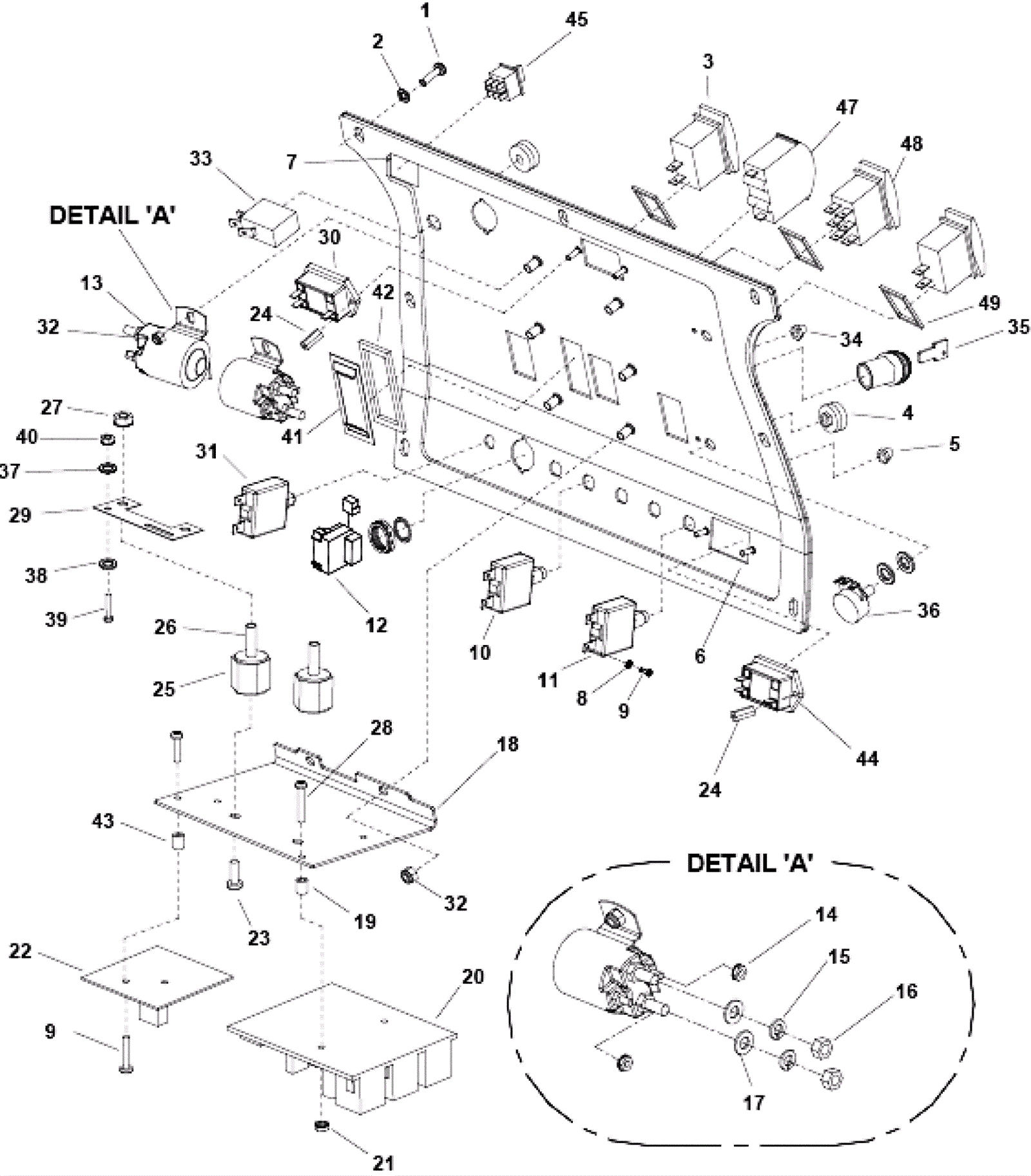

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-2807
|
Screw 10-32 x 3/4 pan head phillips hi-lo |
7 |
|
|
2 |
273-5969
|
Washer .19 thick |
7 |
|
|
3 |
173-1154
|
SPST 15amp rocker switch |
2 |
|
|
4 |
173-8240
|
Knob |
2 |
|
|
5 |
173-1522
|
3/8 inch circuit breaker boot |
5 |
|
|
6 |
273-3851
|
Electric panel plate |
1 |
|
|
7 |
173-8246
|
Electric plate gasket |
1 |
|
|
8 |
N/A
|
Not available |
10 |
(stockpiling) |
|
9 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
14 |
|
|
10 |
991-1629
|
35amp circuit breaker |
2 |
|
|
11 |
173-4140
|
20amp thermal circuit breaker |
3 |
|
|
12 |
189-0320
|
Key switch |
1 |
|
|
13 |
189-0318
|
24V solenoid 4 post (2 large 2 small) |
2 |
|
|
14 |
173-2472
|
Nut 10-32 with star washer |
4 |
|
|
15 |
999-0548
|
Washer 5/16 external star lock stainless steel |
4 |
|
|
17 |
173-3912
|
Washer .344 x .066 flat head (OBSOLETE) |
4 |
|
|
18 |
173-8247
|
Electric panel back plate |
1 |
|
|
19 |
173-1521
|
Spacer |
2 |
|
|
20 |
189-0313
|
24V motor controller |
1 |
|
|
21 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
2 |
|
|
22 |
173-8361
|
Circuit board with potentiometer (OBSOLETE) |
1 |
|
|
23 |
999-0360
|
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
2 |
|
|
24 |
173-1520
|
Nylon standoff |
4 |
|
|
25 |
173-1145
|
Insulated stand-off |
2 |
|
|
26 |
999-0096
|
Screw 1/4-20 x 1/4 cup point socket set plain finish |
2 |
|
|
27 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
2 |
|
|
28 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
|
29 |
173-1519
|
50amp shunt |
1 |
|
|
30 |
189-0316
|
24V battery charger meter |
1 |
|
|
31 |
991-1624
|
3amp circuit breaker |
1 |
|
|
32 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
6 |
|
|
33 |
173-0471
|
Switch (OBSOLETE) |
1 |
|
|
34 |
189-0312
|
3/8 inch circuit breaker boot |
1 |
|
|
35 |
173-3958
|
Key (pkg of 2) |
1 |
|
|
36 |
173-1523
|
Potentiometer |
1 |
|
|
37 |
999-0148
|
Washer #6 external star lock zinc plated |
2 |
|
|
38 |
999-1158
|
Washer #6 flat stainless steel |
2 |
|
|
39 |
999-0147
|
Screw 6-32 x 3/8 round head slotted zinc plated |
2 |
|
|
40 |
173-3909
|
Nut 6-32 hex brass |
2 |
|
|
41 |
173-1164
|
Meter retaining plate |
1 |
|
|
42 |
173-4344
|
Meter gasket |
1 |
|
|
43 |
173-8248
|
Spacer |
2 |
|
|
44 |
173-1160
|
LED hour meter |
1 |
|
|
45 |
173-4143
|
Rocker switch with paddle |
1 |
|
|
47 |
189-0317
|
50amp meter |
1 |
|
|
48 |
189-0321
|
3 position rocker switch |
1 |
|
|
49 |
173-4358
|
Switch gasket |
3 |
|
|
N/S |
173-3132
|
22 inch wire (red) |
2 |
|
|
N/S |
173-3136
|
14 inch wire 76011 x 76040 (black) |
1 |
|
|
