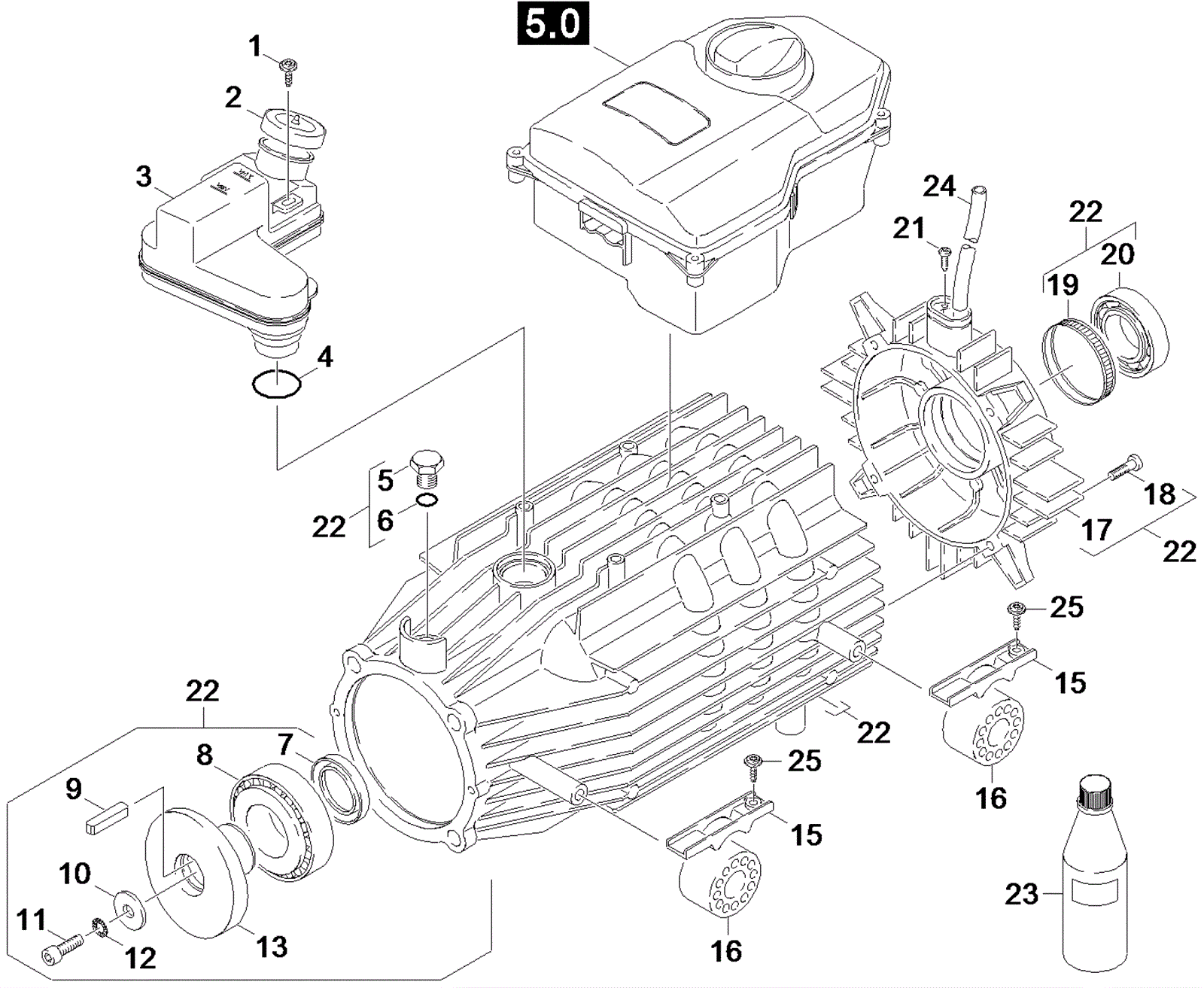

HD 4.5/32-4 S Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-6202 Screw M5 x 20mm $1.03 1 ships same day
2 273-0513 Cover plate $6.05 1 usually ships 7-19 days
3 273-0514 Tank $19.25 1 usually ships 7-19 days
4 173-5803 O-ring $3.03 1 usually ships 7-19 days
5 273-0515 Screw plug $12.76 2 usually ships 7-19 days
6 273-0516 O-ring seal (OBSOLETE) $0.99 2 usually ships 7-19 days
7 273-0517 Radial shaft seal ring $14.08 1 usually ships 7-19 days
8 273-0518 Taper roller bearing $124.30 1 usually ships 7-19 days
9 273-0519 Parallel key $3.03 1 usually ships 7-19 days
10 273-9455 Washer $0.99 1 usually ships 7-19 days
11 273-7847 Screw M8 x 20mm cylinder head $1.21 1 usually ships 7-19 days
12 273-0520 Toothed lock washer (OBSOLETE) Call for price 1 usually ships 7-19 days
13 273-0521 Wobble plate (OBSOLETE) Call for price 1 usually ships 7-19 days
15 273-0522 Mounting bracket $2.75 4 usually ships 7-19 days
16 273-0523 Rubber buffer $4.30 4 usually ships 7-19 days
17 273-0524 Bearing cover $67.65 1 usually ships 7-19 days
18 273-0525 Screw M6 x 25mm self-tapping $0.99 4 usually ships 7-19 days
19 273-0526 Tolerance ring $12.10 1 usually ships 7-19 days
20 273-0527 Ball bearing $77.00 1 usually ships 7-19 days
21 273-8161 Screw M4 x 10 $0.99 1 usually ships 7-19 days
22 273-0528 Motor $3,283.50 1 (includes 5-13, 17-20) usually ships 7-19 days
23 273-0529 Gear oil $16.17 2 usually ships 7-19 days
24 273-0530 Insulating hose $3.47 4 feet ships same day
25 999-1554 Screw M5-.8 x 35mm pan head phillips zinc plated $0.99 4 ships same day
