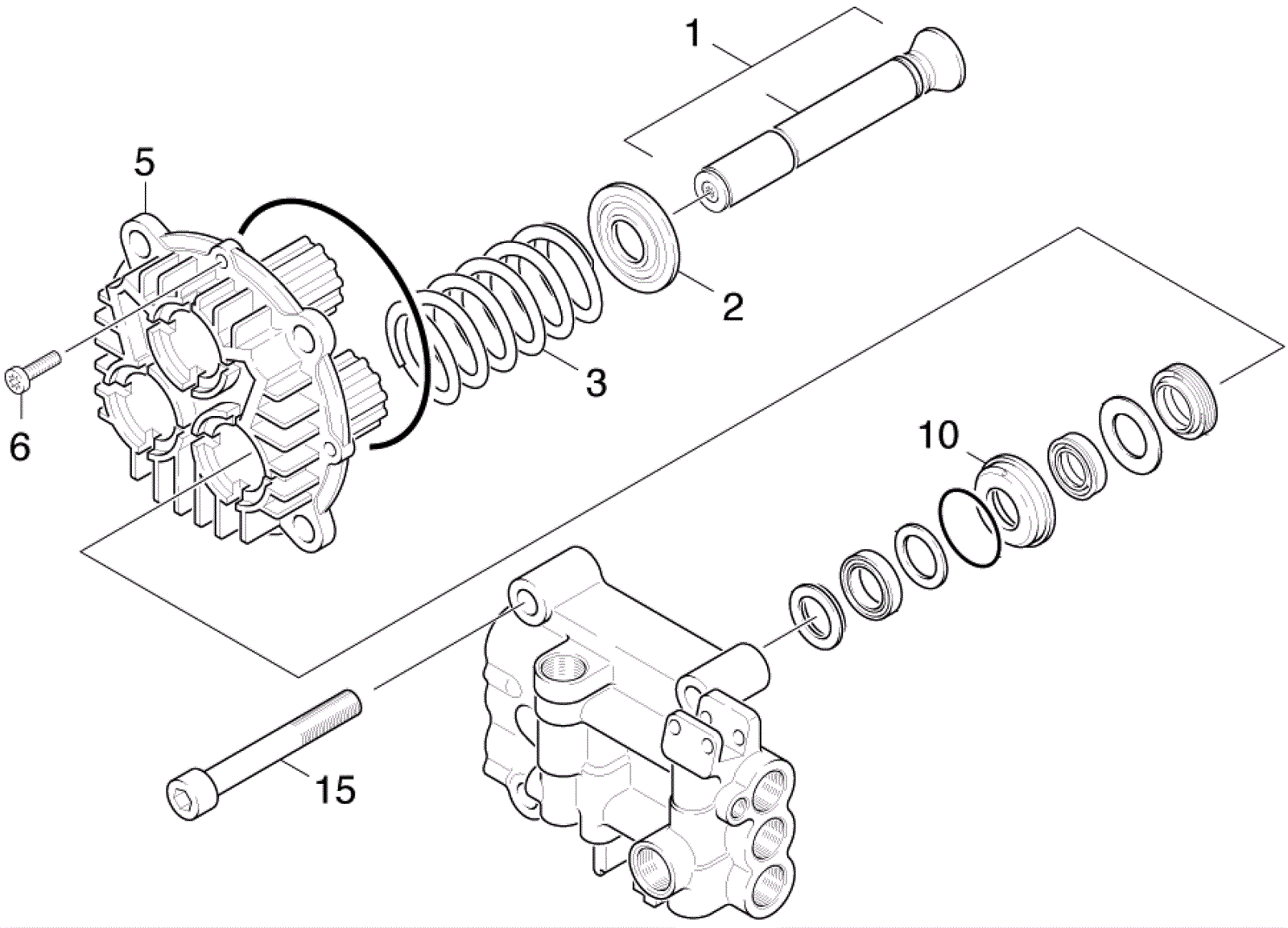

HD 4.5/32-4 S Piston Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0488 Piston $278.95 3 usually ships 11-16 days
2 273-0489 Washer $6.59 3 usually ships 11-16 days
3 273-0490 Helical spring $30.25 3 usually ships 11-16 days
5 273-0491 Thrust guidance $120.05 1 usually ships 11-16 days
6 273-7457 Screw M6 x 25-8.8 $1.47 2 usually ships 1-5 days
10 273-0492 Bushing $17.66 3 usually ships 11-16 days
15 999-1987 Screw M12-1.75 x 90mm hex cap $14.83 4 ships same day
