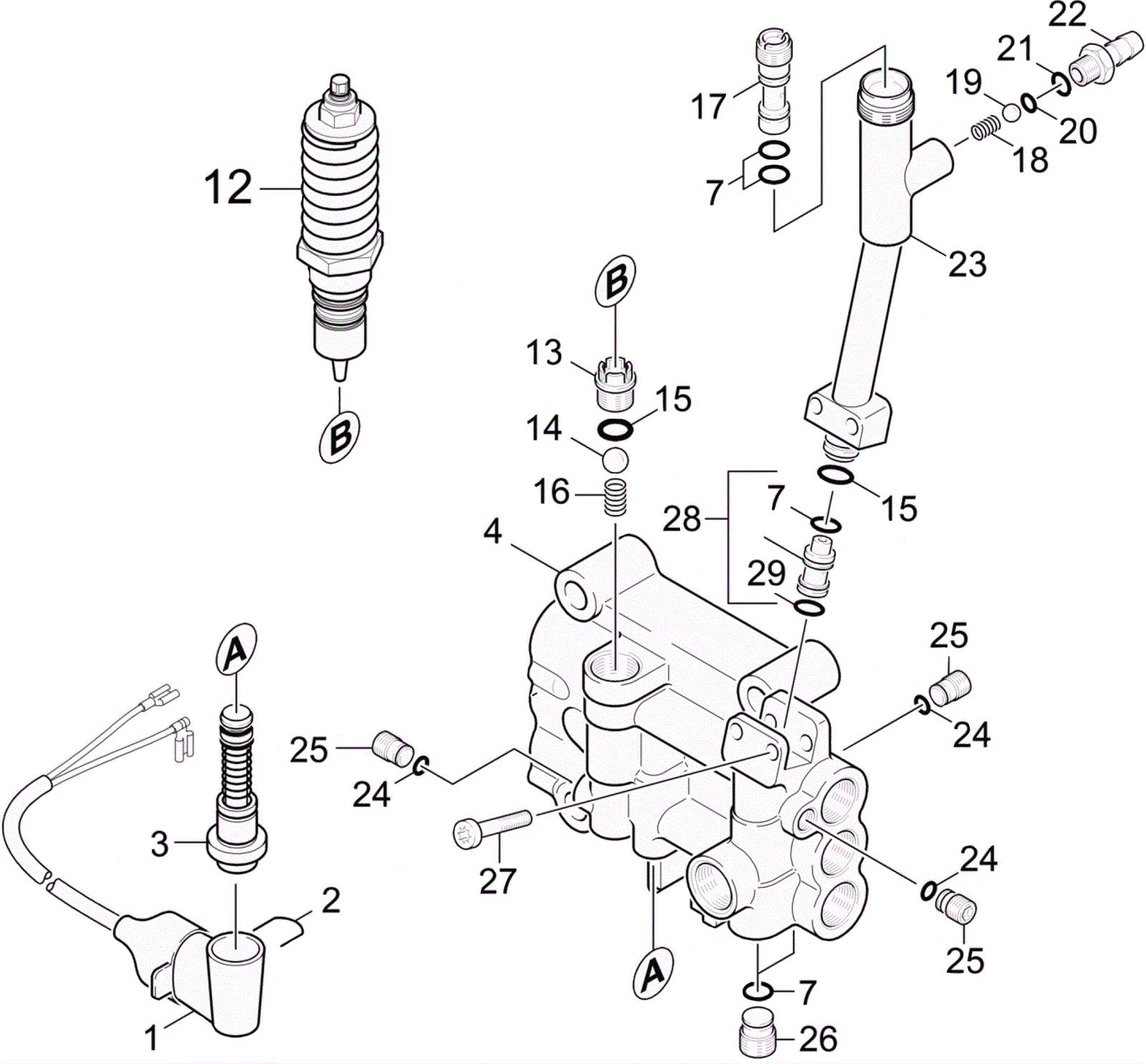

HD 4.5/32-4 S Cylinder Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0466 Switch $64.90 1 usually ships 7-19 days
2 273-0467 Retaining bracket $2.66 1 usually ships 7-19 days
3 273-0468 Control piston (OBSOLETE) Call for price 1 usually ships 7-19 days
4 273-0469 Cylinder head $698.50 1 usually ships 7-19 days
7 273-7976 Gasket $4.48 5 usually ships 7-19 days
12 273-0470 Overflow valve $123.20 1 usually ships 7-19 days
13 273-0471 Valve seat $38.94 1 usually ships 7-19 days
14 273-0472 Sphere $5.08 1 usually ships 7-19 days
15 273-2113 O ring $1.88 2 usually ships 7-19 days
16 273-0473 Helical spring $3.99 1 usually ships 7-19 days
17 273-0474 Nozzle insert $30.25 1 usually ships 7-19 days
18 273-9806 Helical spring $3.08 1 usually ships 7-19 days
19 273-0475 Sphere $0.99 1 usually ships 7-19 days
20 273-0476 O-ring seal $1.94 1 usually ships 7-19 days
21 173-5872 O-ring 6 x 2 $7.04 1 usually ships 7-19 days
22 273-0477 Nipple $12.98 1 usually ships 7-19 days
23 273-0478 High pressure outlet manifold Call for price 1 usually ships 7-19 days
24 273-0479 O-ring seal $0.99 3 usually ships 7-19 days
25 273-0480 Closing screw M10 x 1mm $9.19 3 usually ships 7-19 days
26 273-0481 Screw plug $6.77 2 usually ships 7-19 days
27 273-6057 Screw M6-8.8 x 35mm (OBSOLETE) $1.69 2 usually ships 1-5 days
28 273-0482 Nozzle insert $48.40 1 (includes 7 and 29) usually ships 7-19 days
29 273-0483 O-ring seal $2.61 1 usually ships 7-19 days
N/S 273-0484 Support ring $6.44 1 usually ships 7-19 days
N/S 273-0485 Pump set $388.30 1 usually ships 7-19 days
