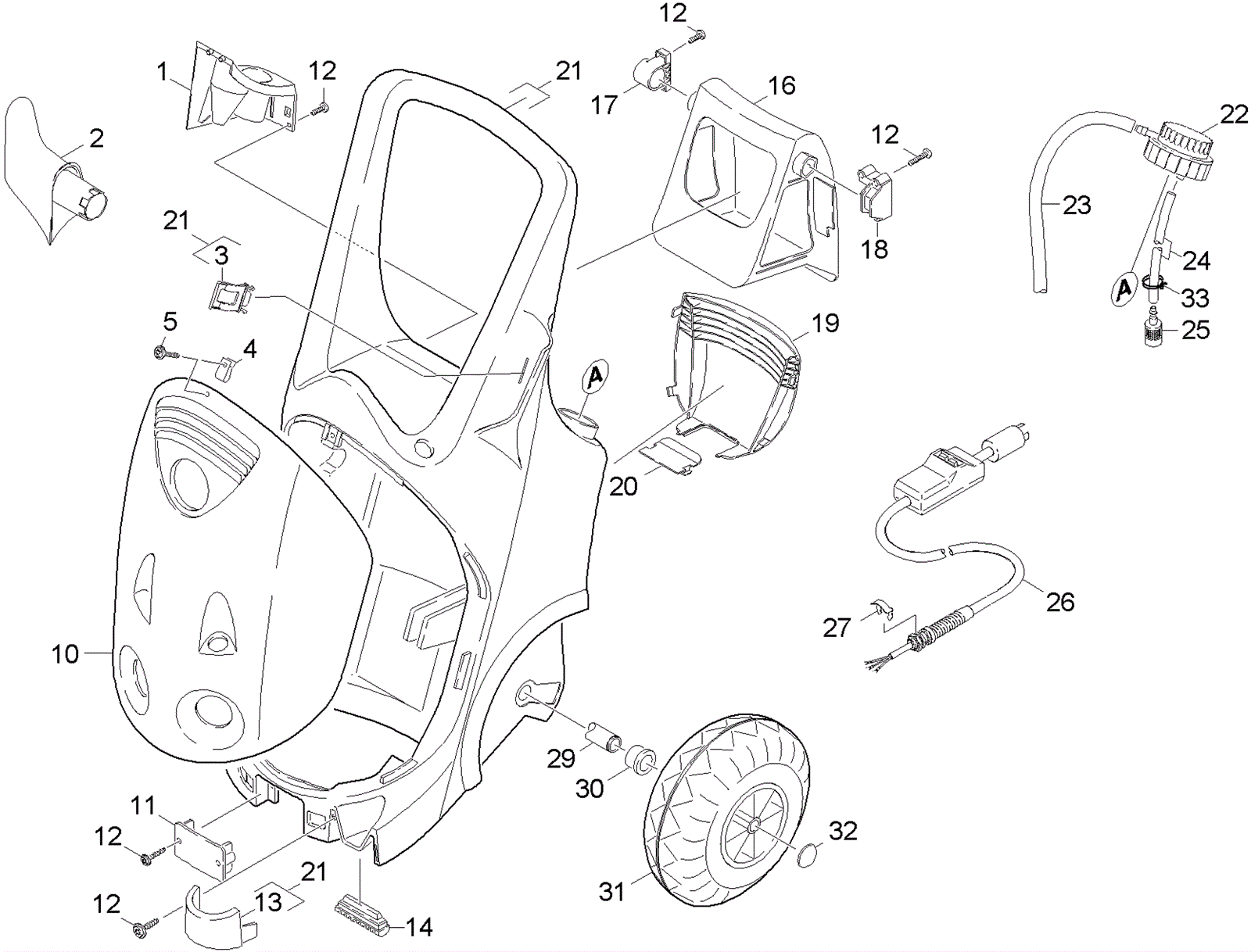

HD 4.5/32-4 S Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0442 Nozzle holder $16.61 1 ships same day
2 273-0443 Holder $21.67 1 usually ships 7-19 days
3 273-0444 Jet pipe holder $10.89 1 usually ships 7-19 days
4 273-0445 Putting nut $2.85 1 usually ships 7-19 days
5 273-0446 Screw M6 x 18mm saucer head $1.57 1 usually ships 7-19 days
10 273-0447 Cover $243.10 1 usually ships 7-19 days
11 273-0448 Hose covering cap $4.62 1 usually ships 7-19 days
12 999-1554 Screw M5-.8 x 35mm pan head phillips zinc plated $0.99 8 ships same day
13 273-0449 Funnel $19.25 1 usually ships 7-19 days
14 273-0450 Support $12.87 2 usually ships 7-19 days
16 273-0451 Covering cap $55.55 1 usually ships 7-19 days
17 273-0452 Right hand bearing support $4.84 1 usually ships 7-19 days
18 273-0453 Left hand bearing support $4.84 1 usually ships 7-19 days
19 273-0454 Covering cap $64.35 1 usually ships 7-19 days
20 273-0455 Drawer covering cap $5.03 1 usually ships 7-19 days
21 273-0456 Frame $706.20 1 (includes 3 and 13) usually ships 7-19 days
22 273-0457 Chemistry metering valve $49.17 1 usually ships 7-19 days
23 273-0458 Hose $7.15 4 feet usually ships 7-19 days
24 173-6219 Hose (sold by the foot) $6.60 4 feet usually ships 12-29 days
26 273-0459 Cable with plug (OBSOLETE) Call for price 1 usually ships 7-19 days
27 273-0460 Locking ring $5.50 1 usually ships 7-19 days
29 273-0461 Axle $33.00 1 usually ships 7-19 days
30 273-0462 Sleeve $7.10 2 usually ships 7-19 days
31 273-0463 Wheel $85.80 2 usually ships 7-19 days
32 273-0464 Quick fastener $7.48 2 usually ships 7-19 days
33 273-0465 Hose clip $2.66 1 usually ships 7-19 days
