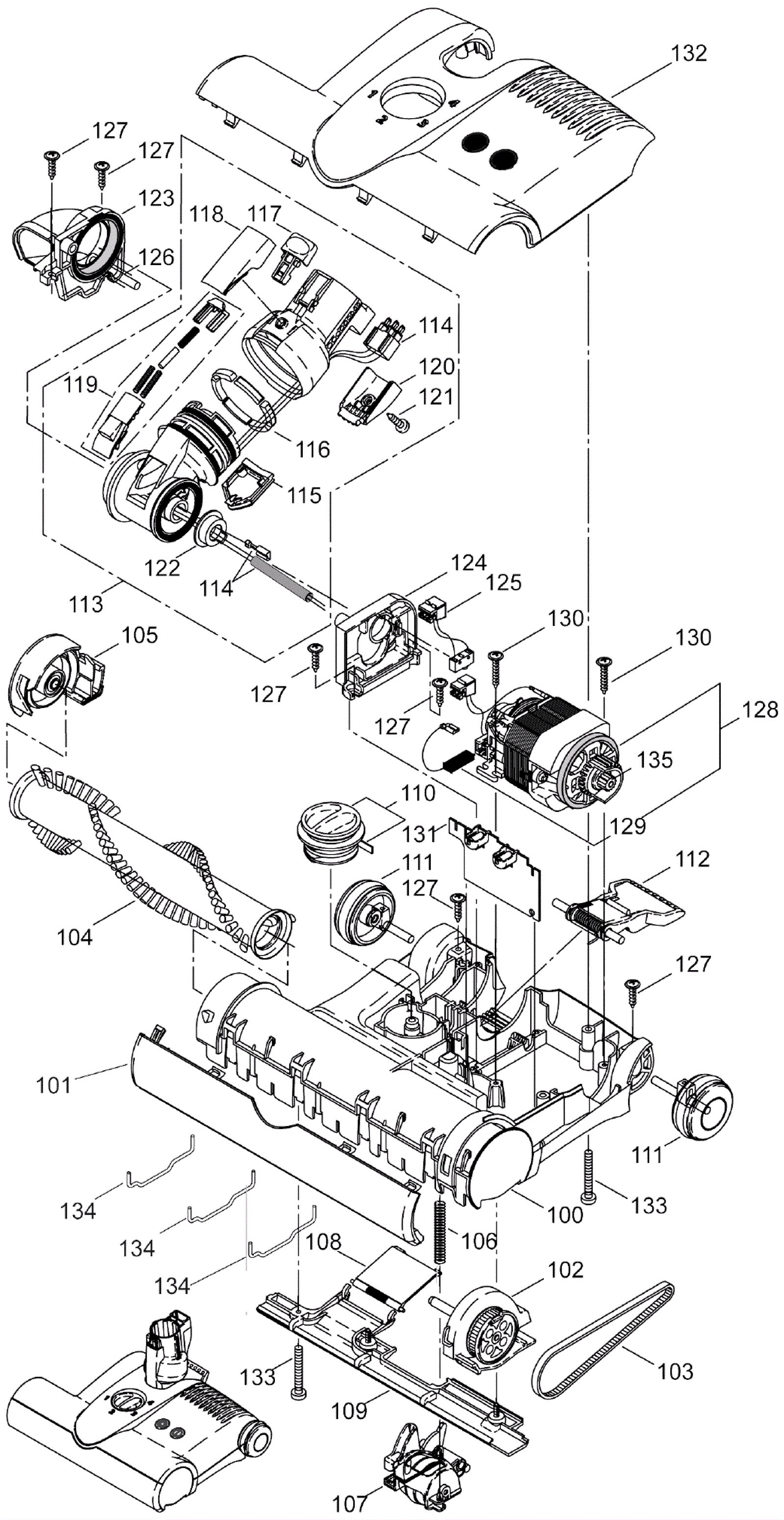

AXCESS (GRAY) Head Assembly

#PartDescriptionPriceReqNotesAvailability
100a 273-7723 12 inch chassis (black) $163.90 1 usually ships 14-22 days
100b 273-7724 15 inch chassis (black) $172.70 1 usually ships 14-22 days
101a 273-7725 12 inch bumper (black) $75.90 1 usually ships 14-22 days
101b 273-0919 15 inch front bumper $56.50 1 usually ships 14-22 days
102 273-3526 Left hand bearing block $122.10 1 usually ships 1-5 days
103 173-5342 Belt $24.09 1 ships same day
104a 173-2403 12 inch brush roller $27.47 1 ships same day
104b 173-8478 15 inch brush roll $77.00 1 ships same day
105 273-7727 Right hand bearing block $72.60 1 usually ships 14-22 days
106 173-4229 Spring (OBSOLETE) $7.48 1 usually ships 14-22 days
107 173-4230 Pile adjustment assembly $57.20 1 usually ships 14-22 days
108 273-7728 Access door (yellow) $20.35 1 usually ships 14-22 days
109a 273-7729 12 inch rear bottom plate $43.01 1 usually ships 14-22 days
109b 273-7730 15 inch rear bottom plate $49.28 1 usually ships 14-22 days
110 273-7731 Pile adjustment button $25.08 1 usually ships 14-22 days
111 173-7559 Wheel (black) $16.83 2 ships same day
112 273-7741 Foot pedal $31.13 1 usually ships 14-22 days
113 273-7732 Swivel neck assembly $195.80 1 usually ships 14-22 days
114 273-7733 Swivel neck wiring $62.15 1 usually ships 14-22 days
115 273-7734 Cover $25.74 1 usually ships 14-22 days
116 173-4240 Seal set (OBSOLETE) $23.54 1 usually ships 14-22 days
117 173-4241 Release button $20.35 1 usually ships 14-22 days
118 273-7735 Button cover $21.89 1 usually ships 14-22 days
119 273-7736 Swivel neck guide $28.93 1 usually ships 14-22 days
120 273-7737 Socket cover $23.54 1 usually ships 14-22 days
121 173-4245 Screw M4 x 9.5mm $10.62 1 usually ships 1-5 days
122 173-4246 Bearing $15.73 1 usually ships 1-5 days
123 173-4247 Right side swivel neck support $43.78 1 usually ships 1-5 days
124 173-4248 Left side swivel neck support $41.47 1 usually ships 14-22 days
125 173-4249 Switch $73.70 1 usually ships 14-22 days
126 173-4250 Axle $3.85 1 usually ships 1-5 days
127 173-4258 Screw M4 x 13mm $9.35 4 usually ships 1-5 days
128a 173-5345 Brush motor $271.70 1 (12 inch) (includes 135) usually ships 14-22 days
128b 173-5355 Brush motor $295.90 1 (15 inch) (includes 135) usually ships 1-5 days
129 173-6319 Carbon brush set $52.36 1 usually ships 14-22 days
130 173-4252 Screw M4 x 21mm $10.62 2 usually ships 1-5 days
131a 173-4253 Controller board $71.50 1 (12 inch) ships same day
131b 173-4254 200 watt printed circuit board $73.15 1 (15 inch) usually ships 14-22 days
132a 273-7739 12 inch power head cover $107.80 1 usually ships 14-22 days
132b 273-7740 15 inch power head cover $119.90 1 usually ships 14-22 days
133 999-1518 Screw M4-.7 x 30mm pan head phillips zinc plated $0.99 2 ships same day
134a 173-5270 Wire tie $7.15 3 (12 and 15 inch) ships same day
134b 173-5269 Wire tie $7.15 3 (15 inch) usually ships 14-22 days
135 173-5354 Brush motor pulley $26.73 1 usually ships 14-22 days
