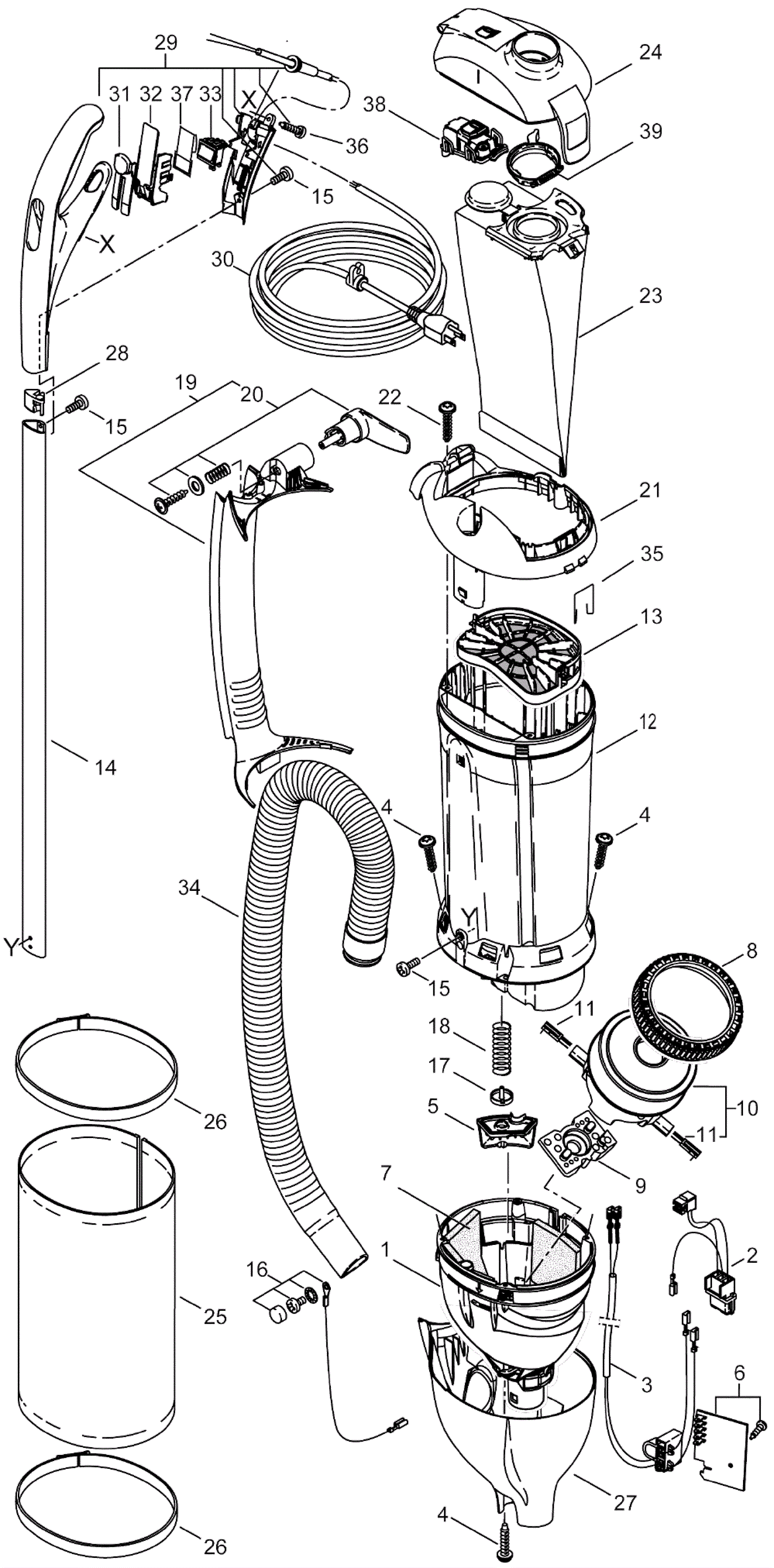

AXCESS (GRAY) Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-4200 Air duct $101.82 1 usually ships 1-5 days
2 173-4201 Internal wiring $50.14 1 usually ships 1-5 days
3 173-4202 Internal cable $75.92 1 usually ships 1-5 days
4 173-4203 Screw M4 x 16mm self-tapping torx $15.30 1 usually ships 14-22 days
5 173-4204 Valve cover $22.59 1 usually ships 14-22 days
6 173-4205 120V printed circuit board $61.20 1 usually ships 1-5 days
7 173-4206 Sound insulation $31.66 1 usually ships 1-5 days
8 173-0029 Vacuum motor seal $36.01 1 usually ships 14-22 days
9 173-4207 Rubber mounting $31.66 1 usually ships 14-22 days
10 173-5346 120V vacuum motor $290.72 1 (includes 11) ships same day
11 173-4208 Carbon brush (pkg of 2) $72.97 1 usually ships 14-22 days
12 273-7709 Dust bag housing $138.89 1 usually ships 14-22 days
13 173-5347 Vacuum motor filter $30.95 1 ships same day
14 173-4210 Handle tube $77.68 1 usually ships 1-5 days
15 173-4211 Screw M4-.7 x 10mm $4.60 1 usually ships 14-22 days
16 173-4212 Internal wiring $30.13 1 usually ships 1-5 days
17 173-4213 Valve disc $16.83 1 usually ships 14-22 days
18 273-7710 Valve spring $13.89 1 usually ships 14-22 days
19 273-7711 Hose ducts (grey) $64.15 1 (includes 20) usually ships 14-22 days
20 273-7712 Cable hook $21.78 1 usually ships 14-22 days
21 273-7713 Dust bag housing cover $23.42 1 usually ships 14-22 days
22 173-4217 Screw M4-.7 x 20mm self-tapping torx $17.53 1 usually ships 14-22 days
23 173-5350 Filter bag (pkg of 10) $37.54 1 ships same day
24 273-7714 Filter cover $82.98 1 usually ships 14-22 days
25 273-7652 Exhaust filter $82.98 1 usually ships 14-22 days
26 273-7715 Exhaust filter $41.07 1 usually ships 14-22 days
27 273-7716 Lower housing $30.80 1 usually ships 14-22 days
28 173-4221 Plug $20.13 1 usually ships 1-5 days
29 273-7717 Handle grip $144.77 1 (includes 31-33, 37) usually ships 14-22 days
30a 173-5353 18/3 power cord $109.46 1 (OEM) usually ships 14-22 days
30b 991-5008 18/3 replacement power cord 50 foot (beige) $43.29 1 (NON-OEM) ships same day
31 273-7719 Yellow sliding button $17.53 1 usually ships 14-22 days
32 273-7720 Black handle frame $46.02 1 usually ships 14-22 days
33 173-4224 2 pole rocker switch $42.72 1 usually ships 14-22 days
34 173-5348 Hose $154.19 1 usually ships 14-22 days
35 273-7721 Spring latch $26.84 1 usually ships 14-22 days
36 273-0130 Screw M4-.7 x 14mm $0.99 1 ships same day
37 173-7507 Protective film $30.13 1 usually ships 14-22 days
38 173-4225 Filter indicator (OBSOLETE) $36.52 1 usually ships 14-22 days
39 173-4226 Retaining ring $25.19 1 usually ships 1-5 days
