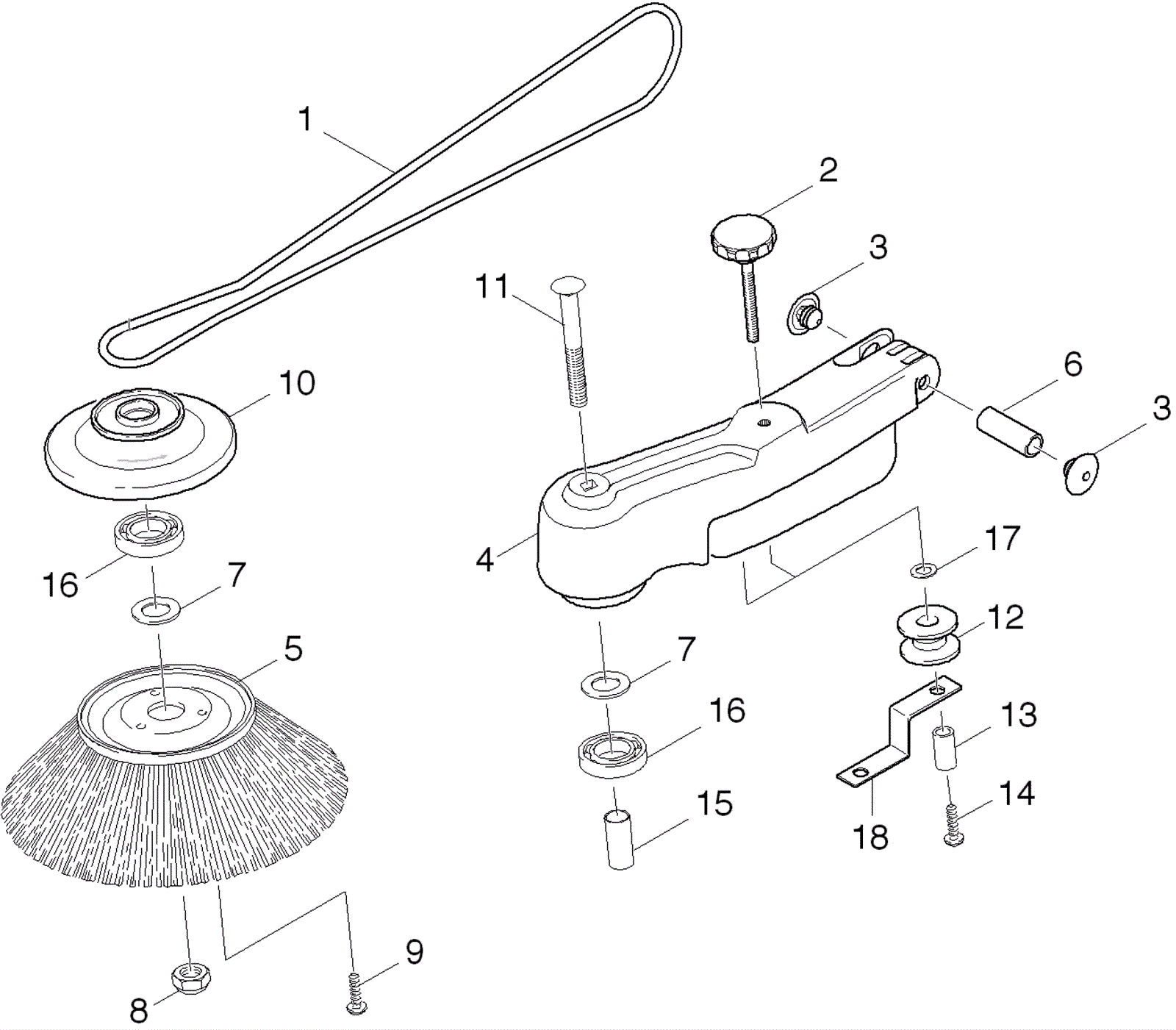

RADIUS 28 DLX Side broom assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6083 Belt $35.60 1 usually ships 7-19 days
2 273-6084 Knob $24.97 1 usually ships 7-19 days
3 273-6085 Plug $4.66 2 usually ships 7-19 days
4 273-6086 Arm $46.97 1 usually ships 7-19 days
5 173-5380 Side brush $78.65 1 ships same day
6 273-6087 Sleeve $11.33 1 usually ships 7-19 days
7 273-6088 Washer $1.88 2 usually ships 7-19 days
8 273-6031 Nut M10-8 hex $2.78 1 usually ships 7-19 days
9a 273-0435 Screw 8 x 16 sheet metal $1.03 3 (gray) usually ships 7-19 days
9b 273-6089 Screw 6-10.9 x 20mm $1.94 3 (blue) usually ships 7-19 days
10 273-6090 Side brush hub $52.69 1 usually ships 7-19 days
11 273-6091 Screw M10 x 30mm saucer head $7.26 1 ships same day
12 173-6336 Deflection pulley $2.51 2 usually ships 7-19 days
13 273-6093 Sleeve $19.03 2 ships same day
14 273-6094 Screw 6-10.9 x 35mm $1.32 2 ships same day
15 273-6095 Spacer $20.68 1 usually ships 7-19 days
16 273-6041 Ball bearing $25.96 2 usually ships 7-19 days
17 173-6337 Washer $1.32 2 usually ships 7-19 days
18 273-6096 Bracket $54.89 1 usually ships 7-19 days
