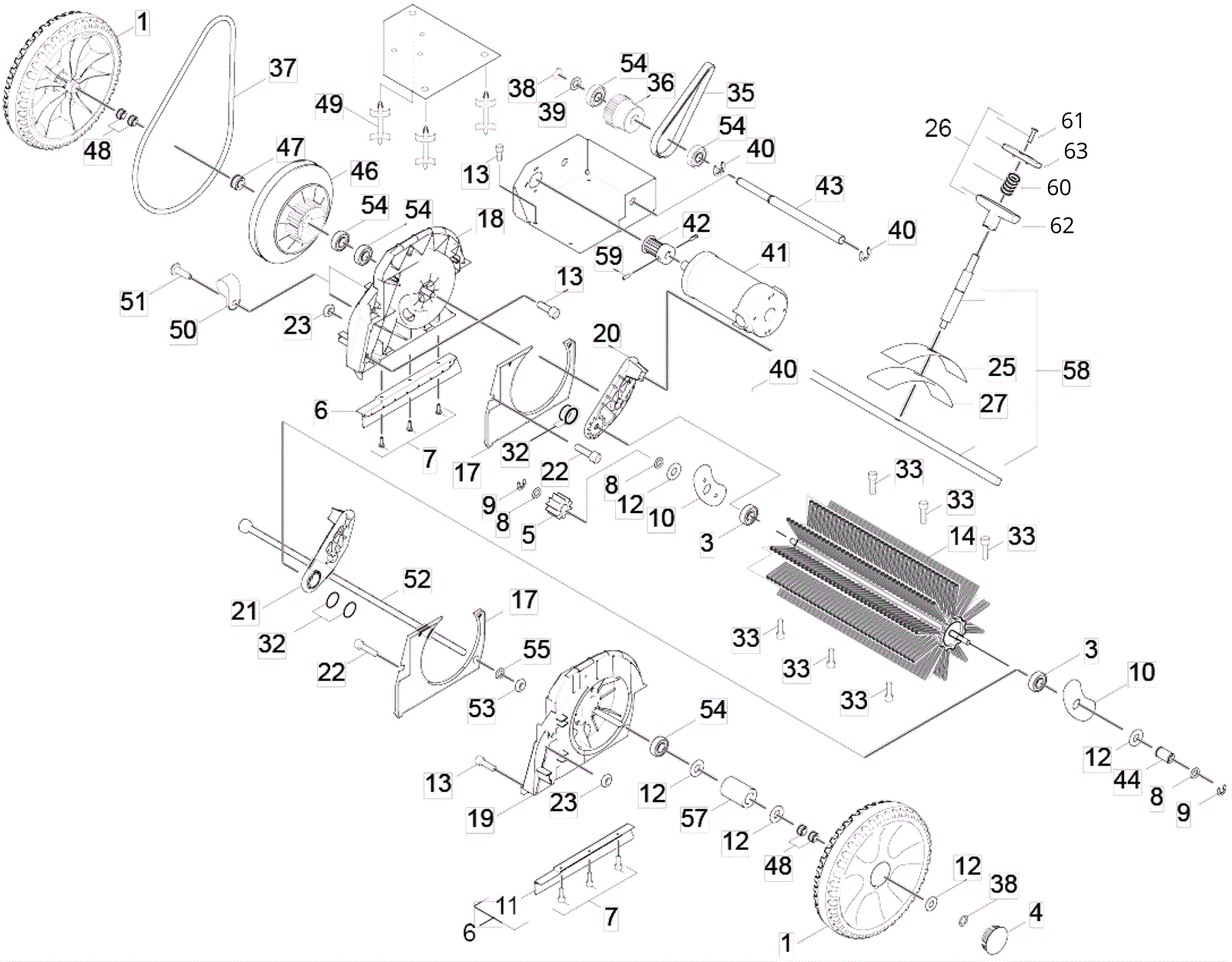

RADIUS 28 DLX Transmission assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6040 Wheel $201.30 2 usually ships 7-19 days
3 273-6041 Ball bearing $25.96 2 usually ships 7-19 days
4 273-6042 Hub cap $14.41 1 usually ships 7-19 days
5 273-6043 Pinion with clutch $180.40 1 usually ships 7-19 days
6a 273-0431 Side strip $32.78 1 (includes 11) (gray) usually ships 7-19 days
6b 273-6044 Right skirt $22.22 1 (includes 11) (blue) usually ships 1-5 days
7 183-0075 Screw 5-16 x 10.9mm $0.99 14 ships same day
8 273-6045 Shim ring $2.82 4 usually ships 7-19 days
9 173-6324 Lock washer $5.78 2 usually ships 7-19 days
10 273-6046 Gasket $12.32 2 usually ships 7-19 days
11 273-6047 Left skirt $24.20 1 usually ships 1-5 days
12 273-6048 Washer $17.27 4 usually ships 7-19 days
13 273-6049 Screw 6-10.9 x 25mm $3.39 6 usually ships 1-5 days
14a 173-5383 Center brush - CYLINDRICAL $257.44 1 usually ships 7-19 days
14b 173-6331 Antistatic center brush - CYLINDRICAL $548.90 1 usually ships 7-19 days
17 273-6052 Cap $13.09 2 usually ships 1-5 days
18 273-6053 Right axle drum $144.10 1 usually ships 7-19 days
19 273-6054 Left axle drum $144.10 1 usually ships 7-19 days
20 273-6055 Right axle stub $28.93 1 usually ships 7-19 days
21 273-6056 Left axle stub $28.82 1 usually ships 7-19 days
22 273-6057 Screw M6-8.8 x 35mm (OBSOLETE) $1.69 4 usually ships 1-5 days
23 273-6058 Nut M6-1 hex $1.21 4 usually ships 1-5 days
25 273-6059 Plate stainless steel $6.77 1 usually ships 1-5 days
26 273-0432 Height adjustment $13.31 1 (includes 60-63) usually ships 7-19 days
27 273-6061 Seal $12.32 1 usually ships 1-5 days
32 273-6065 O-ring $4.51 4 usually ships 1-5 days
33 273-6066 Screw 5-10.9 x 30mm $4.72 6 usually ships 1-5 days
35 273-6067 Toothed belt $47.41 1 usually ships 7-19 days
36a 273-0433 Belt pulley $454.30 1 (gray) usually ships 7-19 days
36b 273-6068 Belt pulley $170.93 1 (blue) usually ships 1-5 days
37 273-6069 Belt $89.10 1 usually ships 7-19 days
38 273-6070 Locking ring $1.40 1 usually ships 7-19 days
39 173-6333 Washer $2.30 1 usually ships 1-5 days
40 173-6334 Lock washer $1.94 2 usually ships 7-19 days
41 273-6071 12V brush motor $757.90 1 usually ships 7-19 days
42 273-6072 Toothed belt pulley $211.20 1 usually ships 7-19 days
43 273-6073 Hexagon shaft $95.15 1 usually ships 1-5 days
44 273-6074 Sleeve $37.29 1 usually ships 7-19 days
46 273-6075 Belt pulley $78.10 1 usually ships 7-19 days
47 273-6076 Sleeve $57.75 1 usually ships 1-5 days
48 273-6077 Bearing $26.51 4 usually ships 1-5 days
49 273-6078 Hopper $1.45 3 usually ships 1-5 days
50 273-6079 Cable clip $3.15 2 usually ships 1-5 days
51 173-4378 Screw $0.99 2 usually ships 7-19 days
52 273-6080 Axle $62.15 1 usually ships 7-19 days
53 273-6081 Nut M6-4 hex $1.87 1 usually ships 7-19 days
54 173-6280 Ball bearing $11.55 5 usually ships 7-19 days
55 173-6297 Washer $1.94 1 usually ships 1-5 days
57 273-6082 Sleeve $66.00 1 usually ships 1-5 days
58 173-6335 Angle assembly $193.60 1 (includes 25 and 27) usually ships 1-5 days
59 273-0434 Threaded pin M4 x 6mm $5.50 2 usually ships 7-19 days
60 273-6060 Spring $4.30 1 usually ships 7-19 days
61 273-6062 Plate $8.09 1 usually ships 7-19 days
62 273-6063 Tee handle $8.47 1 usually ships 1-5 days
63 273-6064 Screw M5-.8 x 20mm $1.57 1 usually ships 7-19 days
