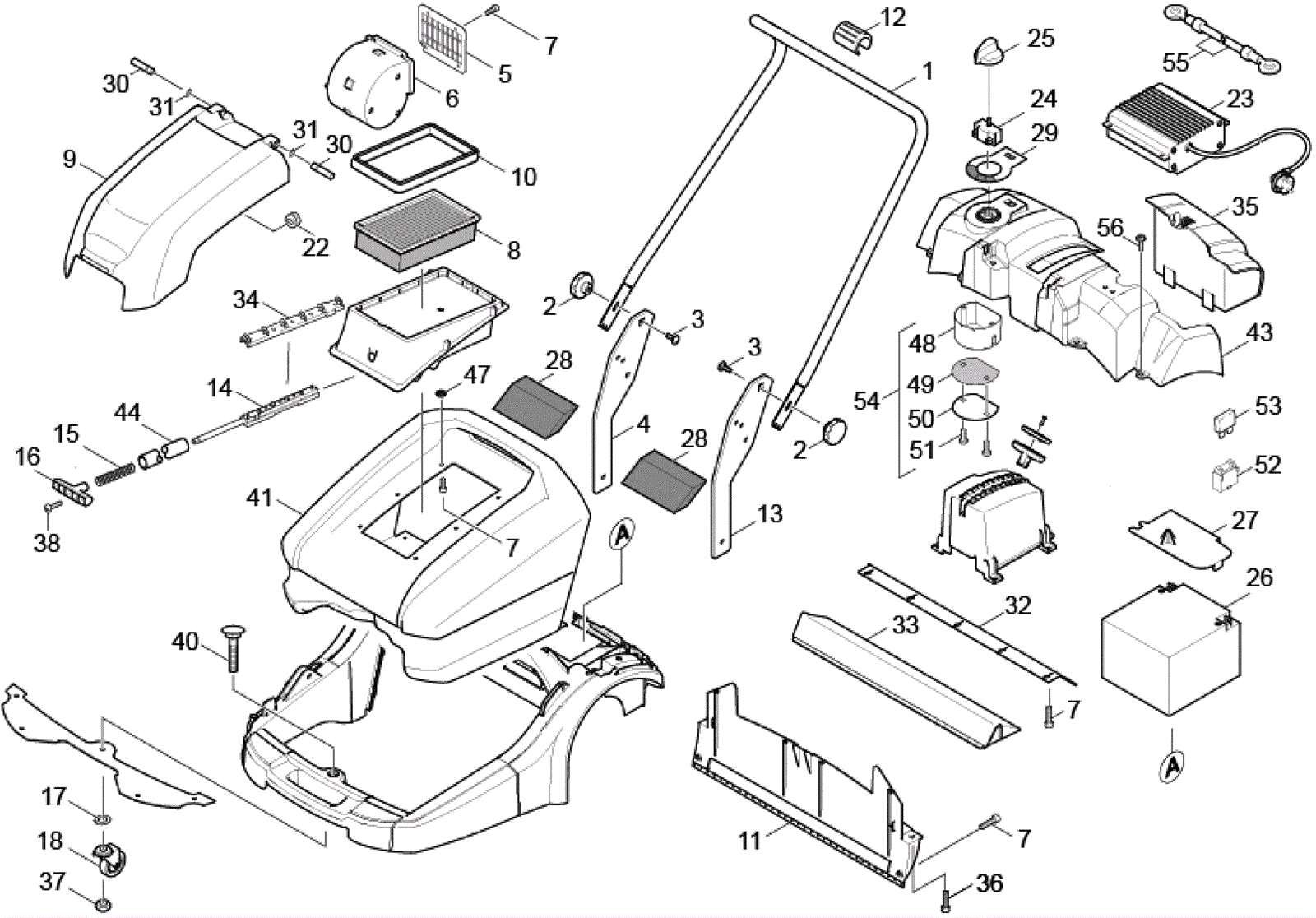

RADIUS 28 DLX General assembly

#PartDescriptionPriceReqNotesAvailability
1 173-5377 Handle $172.70 1 usually ships 1-5 days
2 273-6004 Knob $23.10 2 usually ships 7-19 days
3 273-6005 Screw M8-1.25 x 25mm saucer head $3.21 2 usually ships 7-19 days
4 273-6006 Bracket $25.63 1 usually ships 1-5 days
5 173-5379 Filter grill $18.59 1 usually ships 7-19 days
6 173-6321 Blower assembly $622.60 1 usually ships 7-19 days
7 183-0075 Screw 5-16 x 10.9mm $0.99 16 ships same day
8 273-0980 Filter $80.85 1 usually ships 7-19 days
9 173-6322 Tank lid $258.50 1 usually ships 1-5 days
10 273-6009 Gasket $144.10 1 usually ships 1-5 days
11 273-6010 Rear skirt $69.30 1 usually ships 7-19 days
12 173-5382 Handle clamp $5.45 1 usually ships 1-5 days
13 273-6012 Bracket $25.63 1 usually ships 1-5 days
14 273-6013 Filter shaker $30.47 1 usually ships 7-19 days
15a 273-9398 Spring $7.10 1 (gray model) usually ships 7-19 days
15b 273-6014 Spring $5.03 1 (blue model) usually ships 7-19 days
16a 273-6015 Filter shaker handle $41.69 1 (gray model) usually ships 7-19 days
16b 273-6015 Filter shaker handle $41.69 1 (blue model) usually ships 7-19 days
17 273-6016 Washer $1.94 2 usually ships 1-5 days
18 173-5376 Caster wheel $75.35 1 usually ships 7-19 days
22 273-6019 Wiring protection sleeve $3.63 1 usually ships 1-5 days
23a 273-0428 Battery charger $629.20 1 (gray model) usually ships 7-19 days
23b 173-5374 Battery charger $1,080.20 1 (blue model) usually ships 7-19 days
24 173-6323 Switch $77.55 1 usually ships 7-19 days
25a 273-9368 Knob w/ spring clip $7.54 1 (gray model) ships same day
25b 273-6022 Knob $3.70 1 (blue model) ships same day
27 273-6023 Battery covering cap $31.90 1 usually ships 7-19 days
28 273-6024 Filter cartridge $46.86 2 usually ships 7-19 days
29 273-6025 Control panel foil $78.10 1 usually ships 1-5 days
30 273-6026 Grooved bolt $25.63 2 usually ships 1-5 days
31 173-6324 Lock washer $5.78 2 usually ships 7-19 days
32 273-6028 Skirt $32.78 1 usually ships 7-19 days
33 173-5378 Skirt holder $39.93 1 usually ships 1-5 days
34 173-6325 Stripper $16.39 1 usually ships 7-19 days
35 273-6030 Battery cover $59.95 1 usually ships 7-19 days
36 273-0977 Screw M5-10.9 x 30mm $3.39 6 usually ships 7-19 days
37 273-6031 Nut M10-8 hex $2.78 1 usually ships 7-19 days
38 173-4378 Screw $0.99 1 usually ships 7-19 days
40 273-6033 Screw M10 x 80mm saucer head $5.83 1 usually ships 1-5 days
41a 273-0430 Tank Call for price 1 (gray model) usually ships 7-19 days
41b 273-6034 Complete sweep tank (blue) $211.20 1 (blue model) usually ships 1-5 days
41c 273-6035 Tank assembly (blue) $347.19 1 (blue model) usually ships 1-5 days
43a 273-6037 Cover without hinge $141.90 1 usually ships 1-5 days
43b 273-6036 Cover with hinge $163.90 1 usually ships 1-5 days
44 273-6038 Filter shaker tube $31.02 1 ships same day
47 273-6039 Joint ring $1.03 6 usually ships 1-5 days
48 173-6326 Dust protector $20.35 1 usually ships 1-5 days
49 173-6327 Seal $5.50 1 usually ships 1-5 days
50 173-6328 Cover $12.27 1 usually ships 1-5 days
51 173-4378 Screw $0.99 2 usually ships 7-19 days
52 173-6329 Fuse holder $23.54 1 usually ships 1-5 days
53 173-6330 Fuse $11.44 1 usually ships 7-19 days
54 273-6021 Dust protection switch kit $195.80 1 (includes 48-51) usually ships 7-19 days
55 173-6338 Cable assembly $23.43 1 usually ships 1-5 days
56 273-6089 Screw 6-10.9 x 20mm $1.94 16 (gray model) usually ships 7-19 days
N/S 273-6018 Blower cover $18.26 1 (blue model) usually ships 1-5 days
N/S 273-9368 Knob w/ spring clip $7.54 1 (blue model) ships same day
