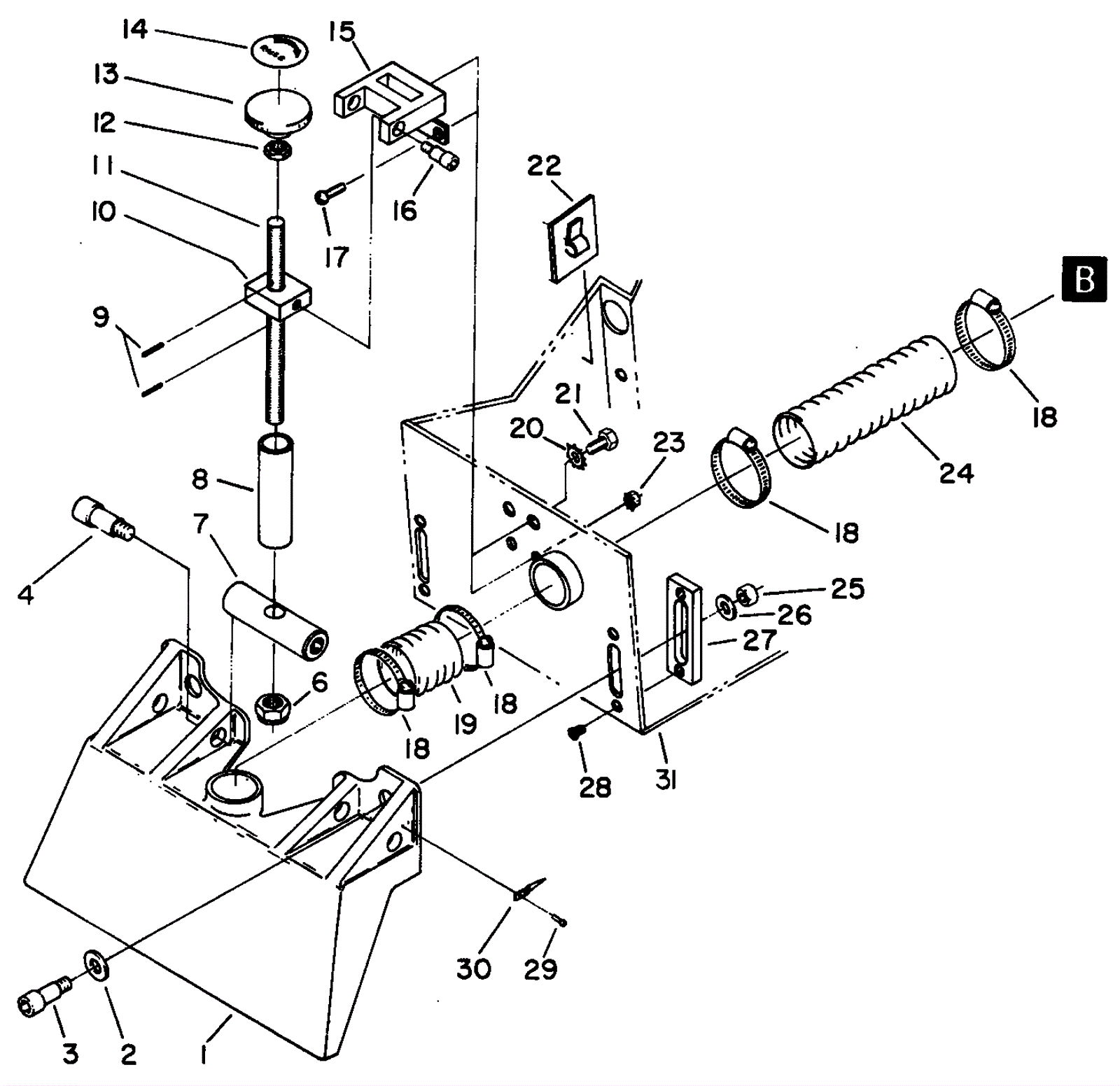

PASSPORT PSP Vacuum Shoe Assembly - After 03/98

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price (vac shoe) usually ships 3-26 days
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 ships same day
3 173-1228 Bolt 5/16 OD x 1/2 long shoulder $4.29 usually ships 1-5 days
4 173-5154 Bolt 3/8OD x 5/8L shoulder $13.64 usually ships 1-5 days
6 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 ships same day
7 373-1628 Pivot rod Call for price usually ships 14-22 days
8 173-2017 Adjustment screw kit $121.00 usually ships 14-22 days
9 173-2019 Roll pin $0.99 usually ships 1-5 days
10 173-2018 Height adjustment screw block $305.80 usually ships 1-5 days
11 173-2017 Adjustment screw kit $121.00 usually ships 14-22 days
12 999-0247 Nut 3/8-16 hex jam plain finish $0.99 ships same day
13 173-2015 Height adjustment knob (OBSOLETE) $15.99 usually ships 1-5 days
14 N/A Not available Call for price (raise decal) usually ships 3-26 days
15 373-1629 Height adjusting mounting block Call for price usually ships 14-22 days
16 173-2021 Bolt 1/4OD x 3/8L shoulder $6.71 usually ships 1-5 days
17 999-0896 Screw 10-32 x 3/8 round head phillips stainless steel $0.99 ships same day
18 997-2000 Hose clamp $2.37 ships same day
19 273-4396 Vacuum hose 1 1/2 x 8 inch (black) $14.85 usually ships 14-22 days
20 999-0017 Washer 1/4 external star lock $0.99 ships same day
21 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 ships same day
22 173-0679 Self adhesive wire clip (OBSOLETE) $3.29 usually ships 1-5 days
23 173-2472 Nut 10-32 with star washer $0.99 usually ships 1-5 days
24 273-0220 22 inch hose $43.01 usually ships 14-22 days
25 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 ships same day
26 999-0123 Washer 1/4 SAE flat zinc plated $0.99 ships same day
27 373-1633 Vacuum shoe adjustment bracket Call for price usually ships 14-22 days
29 173-2014 Screw 4-40 x 1/4 $0.99 usually ships 1-5 days
30 173-2023 Height adjustment pointer 45D (OBSOLETE) $7.32 usually ships 1-5 days
31 N/A Not available Call for price (frame) usually ships 3-26 days
