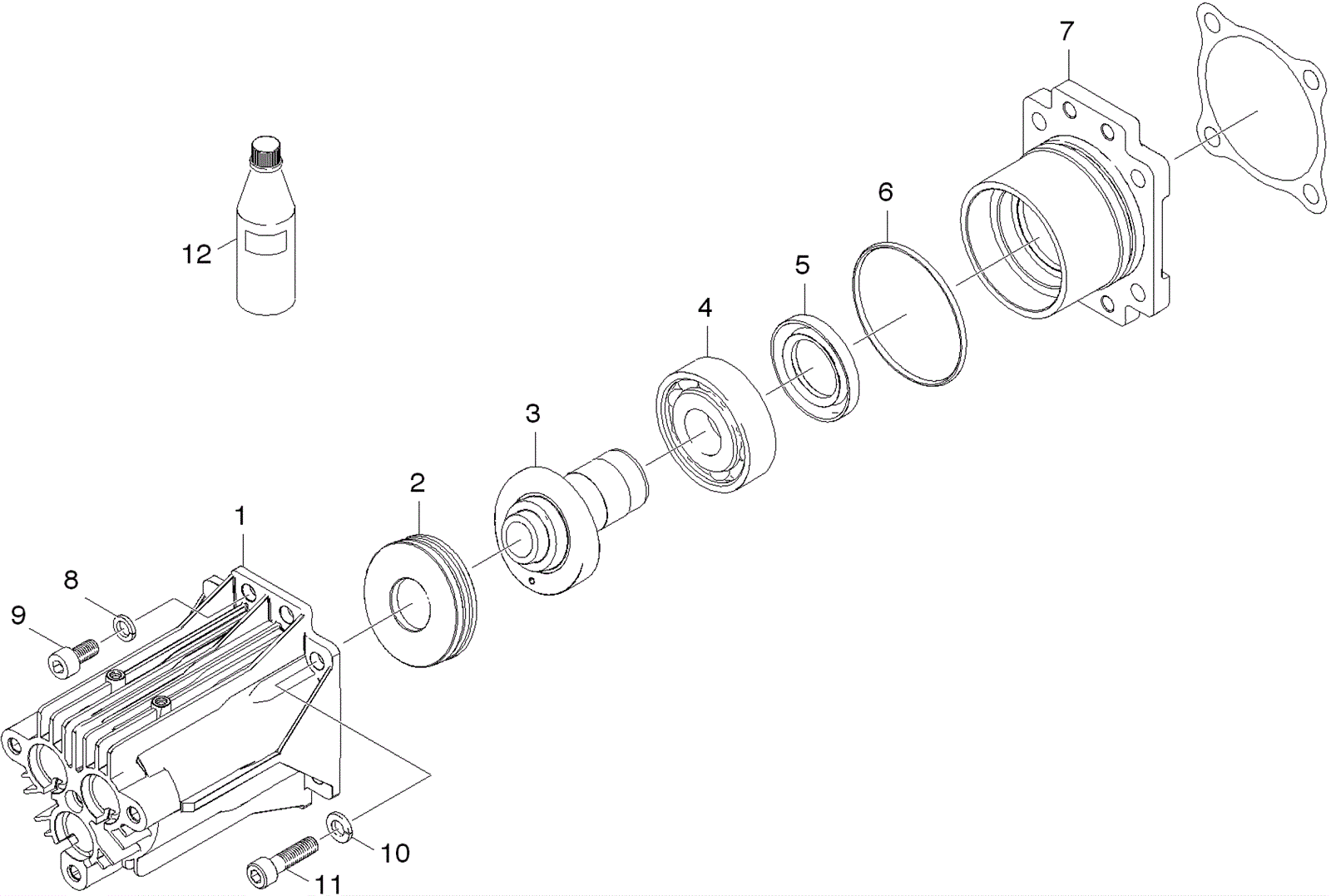

HD 2.5/30 CH Transmission Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-9814 Short oil housing and piston guide $23.75 1 usually ships 14-22 days
2 273-9493 Grooved ball bearing $4.74 1 usually ships 14-22 days
3 273-9815 Molded sleeve wobble shaft machine $51.04 1 usually ships 14-22 days
4 273-9816 Angular contact ball bearing $16.49 1 usually ships 14-22 days
5 273-9817 Radial seal 30x52x7 $14.85 1 usually ships 14-22 days
6 273-9818 O-ring seal 63, 17x2, 62 $3.03 1 usually ships 14-22 days
7 273-9819 Machined flange spacer Call for price 1 usually ships 14-22 days
8 273-9820 Spring washer $1.21 4 usually ships 14-22 days
9 183-7547 Screw $1.35 4 usually ships 1-5 days
10 273-9455 Washer $0.99 4 usually ships 14-22 days
11 999-0690 Screw 5/16-24 x 1 cup point socket set stainless steel $0.99 4 ships same day
12 273-9607 1 liter engine oil $96.80 1 usually ships 14-22 days
N/S 273-0441 Horizontal wobble plate $12.43 1 usually ships 14-22 days
N/S 273-9495 Ball bearing $11.33 1 usually ships 14-22 days
N/S 273-9496 Radial seal $10.89 1 usually ships 14-22 days
N/S 273-9497 Vertical oil housing $18.37 1 usually ships 14-22 days
