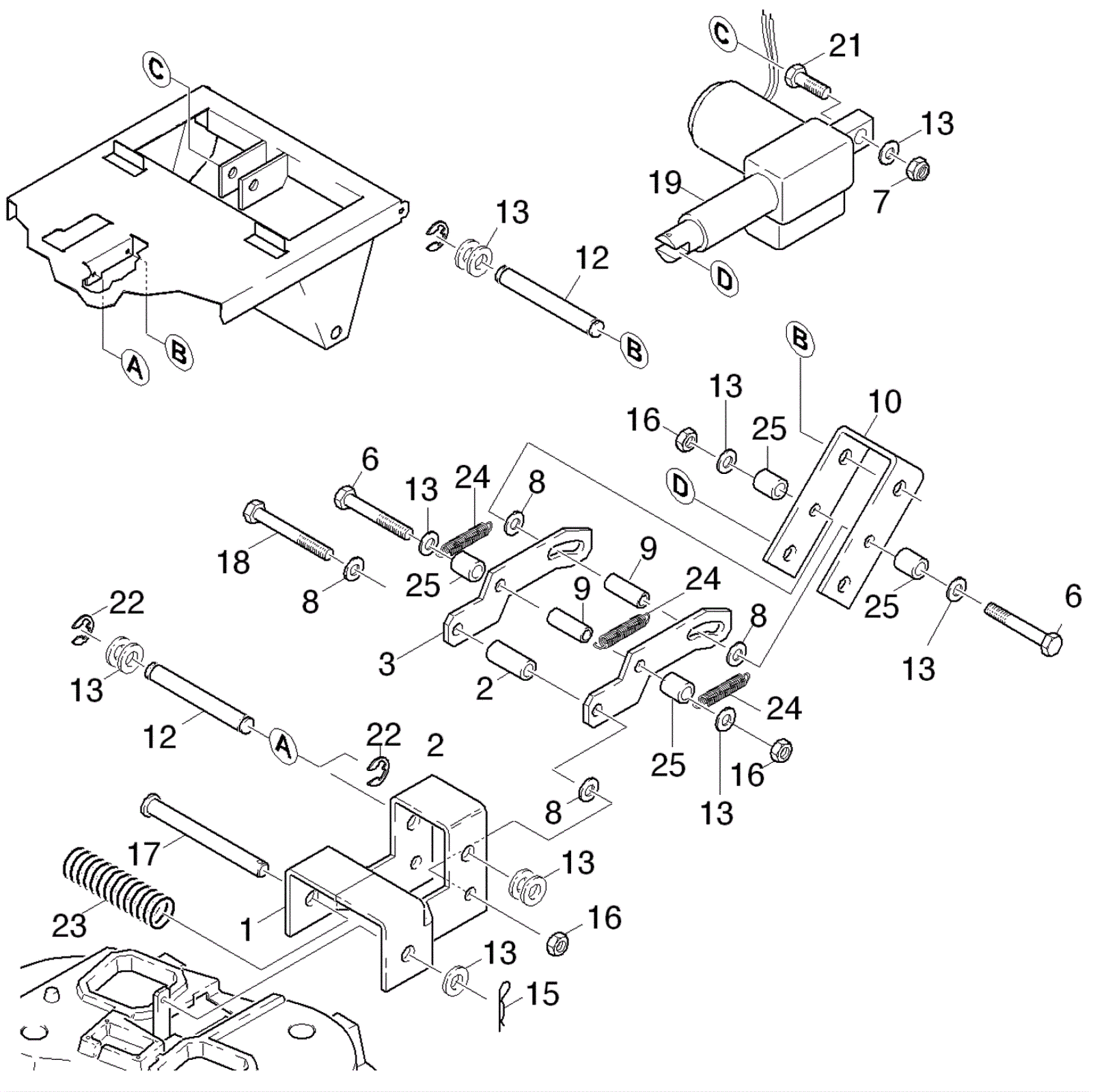

SABERGLIDE 30 Elevating Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-4710 Sheet metal component rocker $93.50 1 usually ships 7-19 days
2 273-4711 Tube $16.50 1 usually ships 7-19 days
3 273-4712 Plate lever $20.35 2 usually ships 7-19 days
6 273-4713 Screw M8 x 100mm hex head $4.29 2 usually ships 7-19 days
7 999-6697 Nut M10-1.5 hex stainless steel $1.01 5 ships same day
8 999-9097 Washer M8 flat stainless steel $0.99 14 ships same day
9 273-4714 Sleeve (OBSOLETE) Call for price 2 usually ships 7-19 days
10 273-4715 Plate halter $14.52 1 usually ships 7-19 days
12 273-4716 Bolt $11.00 2 usually ships 7-19 days
13 273-6016 Washer $1.94 13 usually ships 1-5 days
15 273-4717 Spring clip $3.96 1 usually ships 7-19 days
16 183-0341 Hex nut $1.63 9 usually ships 1-5 days
17 273-8294 Bolt $49.28 1 usually ships 7-19 days
18 999-9202 Screw M8-1.25 x 65 hex zinc $0.99 2 usually ships 11-24 days
19 273-4718 24V hoisting motor $1,452.00 1 usually ships 7-19 days
21 273-4719 Screw M10 x 50mm hex head $6.60 1 usually ships 7-19 days
22 173-6324 Lock washer $5.78 4 usually ships 7-19 days
23 273-4720 Pressure spring $4.07 1 usually ships 7-19 days
24 373-1391 Extension spring $9.19 3 usually ships 7-19 days
25 273-4721 Sleeve $5.06 4 usually ships 7-19 days
