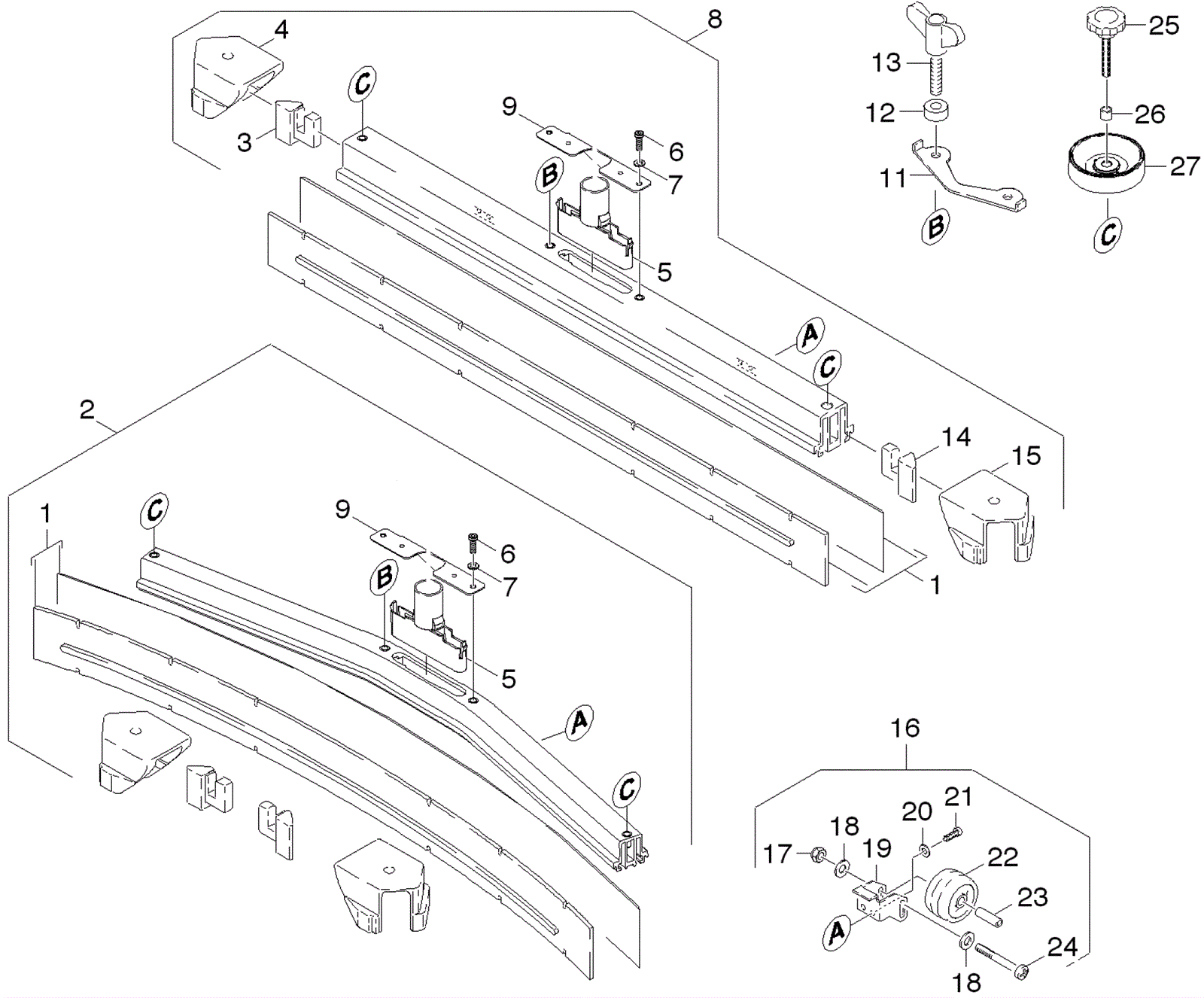

SABERGLIDE 30 Suction Bar Version 2 Assembly

#PartDescriptionPriceReqNotesAvailability
1a 183-7533 Rubber lip set $301.24 1 usually ships 7-19 days
1b 273-3678 Squeegee blade set oil resistant $335.57 1 ships same day
1c 273-8556 Squeegee blade set $221.10 1 usually ships 7-19 days
2 273-4660 39 inch suction bar v-shaped $855.80 1 (includes 1, 5-7, 9) usually ships 7-19 days
3 273-4662 End piece $22.66 1 usually ships 7-19 days
4 273-3475 Left and right end pieces $87.45 1 usually ships 7-19 days
5 273-3479 Suction nipple $35.97 1 usually ships 7-19 days
6 273-3477 Screw $5.03 2 usually ships 7-19 days
7 999-0150 Washer #8 medium split lock $0.99 2 ships same day
8 273-3578 37 inch straight polyurethane squeegee assembly (940mm) $1,276.00 1 (includes 1a-1c, 3-7, 9, 14-15) usually ships 7-19 days
9 273-3478 Suction bar support plate $51.36 1 usually ships 7-19 days
11 273-3482 Plate $39.16 1 usually ships 7-19 days
12 273-5932 Sleeved bushing $13.42 2 usually ships 7-19 days
13 373-4987 Wing screw M8x30 $7.04 2 ships same day
14 273-4662 End piece $22.66 1 usually ships 7-19 days
15 273-3475 Left and right end pieces $87.45 1 usually ships 7-19 days
16 183-0299 Support wheels kit $79.87 1 (includes 17-24) usually ships 8-21 days
17 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
18 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
19 273-4659 Holder roller $53.13 2 usually ships 7-19 days
20 173-9042 Washer #5 $1.40 2 usually ships 1-5 days
21 183-0323 Screw M5-.8 x 10mm stainless steel $1.88 2 usually ships 1-5 days
22 273-3489 Wheel $53.58 2 usually ships 7-19 days
23 183-0303 Axle $34.32 1 usually ships 8-21 days
24 999-0781 Screw M6-1 x 45mm hex head $0.99 2 ships same day
25 273-7072 Star knob $23.21 2 usually ships 7-19 days
26 273-5924 Sleeve suction bar $9.13 2 ships same day
27 273-5925 Guide wheel $26.51 2 usually ships 7-19 days
