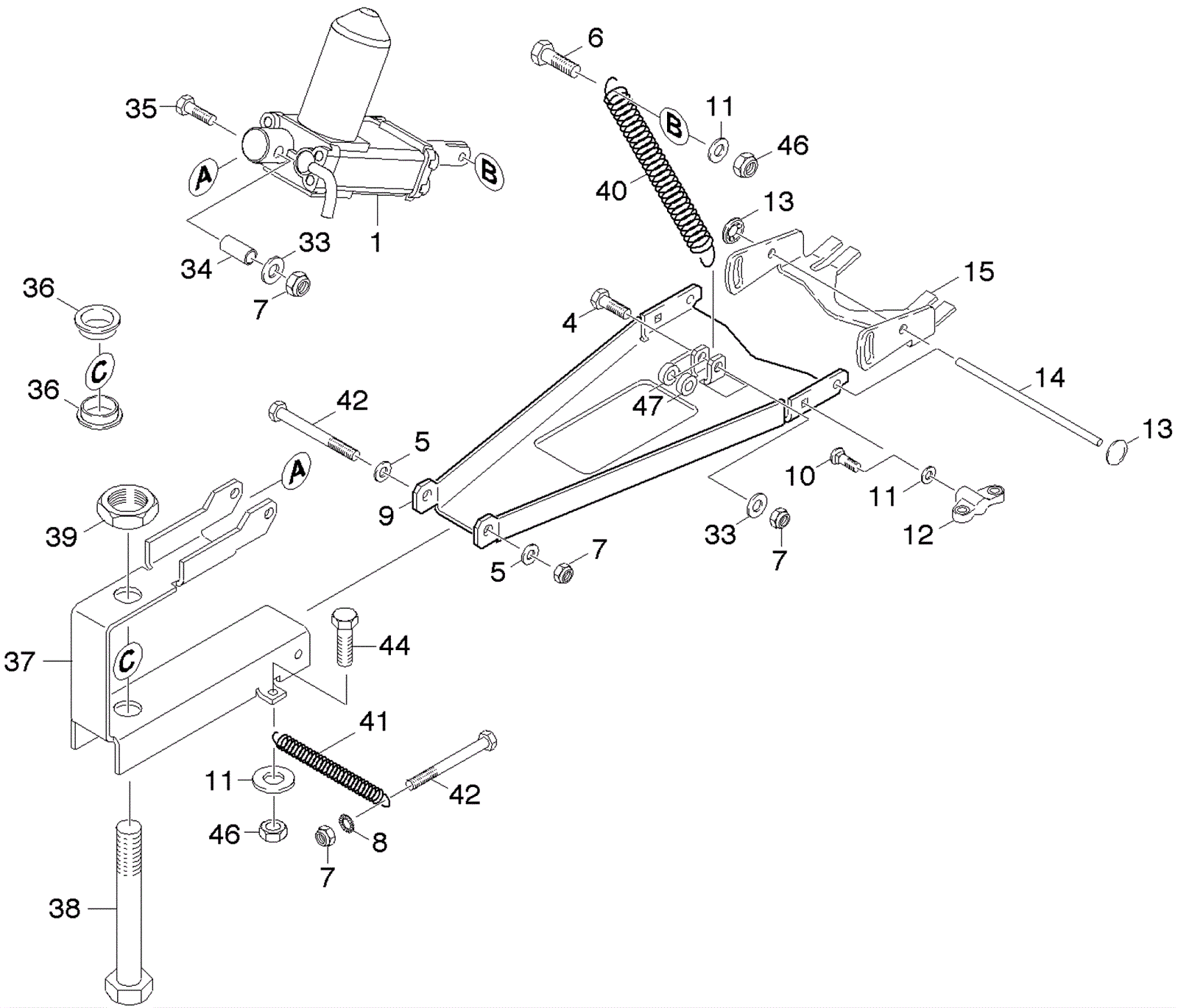

SABERGLIDE 30 Suction Beam Retraction Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-4650 24V hoisting motor (OBSOLETE) Call for price 1 usually ships 7-19 days
4 273-8130 Screw M8 x 45 hex head $6.11 1 usually ships 7-19 days
5 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
6 273-8086 Screw M6 x 25 hex head $0.99 1 usually ships 7-19 days
7 183-0341 Hex nut $1.63 4 usually ships 1-5 days
8 173-9882 Washer serrated lock $2.75 2 usually ships 7-19 days
9 273-9289 Sheet metal component $218.90 1 usually ships 7-19 days
10 183-0343 Screw $1.58 1 usually ships 8-21 days
11 999-1261 Washer M6 flat stainless steel $0.99 5 ships same day
12 999-0938 Nut M6 wing stainless steel $6.60 2 ships same day
13 173-6305 Lock washer $6.55 2 usually ships 7-19 days
14 183-0342 Bar $8.67 1 ships same day
15 273-9290 Rocker suction bar $96.25 1 usually ships 7-19 days
33 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
34 273-4651 Bushing $4.46 1 usually ships 7-19 days
35 273-8237 Screw M8 x 50 hex head $5.83 1 usually ships 7-19 days
36 273-8135 Plain bearing $24.24 2 usually ships 7-19 days
37 273-4652 Plate $92.40 1 usually ships 7-19 days
38 273-4653 Screw M20 x 140mm hex head (OBSOLETE) Call for price 1 usually ships 7-19 days
39 273-4654 Nut M20 hex $22.88 1 usually ships 7-19 days
40 273-4655 Extension spring $24.42 1 usually ships 7-19 days
41 273-4656 Helical spring $7.76 2 usually ships 7-19 days
42 273-9288 Screw M8 x 70-8.8 $4.88 2 usually ships 7-19 days
44 273-9250 Screw M6 x 16 hex head $4.95 2 usually ships 7-19 days
46 273-6081 Nut M6-4 hex $1.87 2 usually ships 7-19 days
47 273-4657 Hubmotor spacer conversion kit $46.97 1 usually ships 7-19 days
