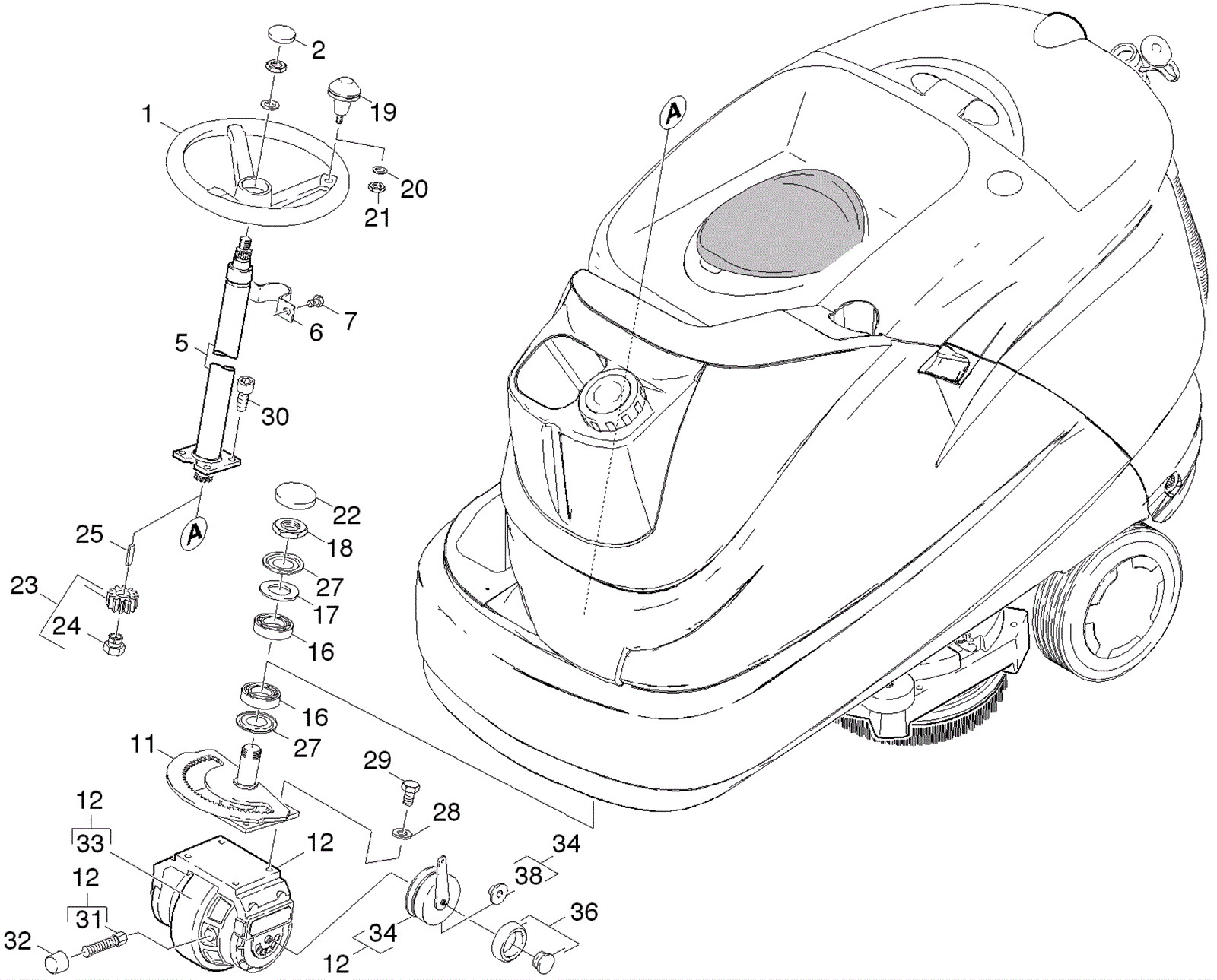

SABERGLIDE 30 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1a 273-9297 Steering wheel with handle $266.20 1 usually ships 14-22 days
1b 273-3220 Steering wheel cap $33.66 1 usually ships 1-5 days
2 273-4638 Cap $7.32 1 usually ships 14-22 days
5 273-4455 Set gear wheel $304.70 1 usually ships 14-22 days
6 273-4639 Steering pillar holder $18.26 1 usually ships 14-22 days
7 273-8159 Screw M8 x 16 hex head $0.99 2 usually ships 14-22 days
11 273-4640 Steering $391.60 1 usually ships 14-22 days
12 273-4225 Drive wheel assembly $4,741.00 1 (includes 31, 33-34) usually ships 14-22 days
16 273-9816 Angular contact ball bearing $16.49 2 usually ships 14-22 days
17 273-8367 Washer $6.71 1 usually ships 14-22 days
18 273-4641 Nut M24 x 1.5 hex $9.57 1 usually ships 14-22 days
19 183-7534 Handle (Obsolete) $44.77 1 usually ships 1-5 days
20 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
21 183-0341 Hex nut $1.63 1 usually ships 1-5 days
22 273-4642 Cap $10.29 1 usually ships 14-22 days
23 273-4643 Set gear wheel $244.20 1 (includes 24) usually ships 14-22 days
24 273-8102 Nut M16 x 1.5 hex head $6.60 1 usually ships 14-22 days
25 183-7463 Keyway $2.37 1 usually ships 1-5 days
27 273-4644 Slip ring $14.08 2 usually ships 14-22 days
28 273-9272 Screw M10 x 25-8.8 hex head $6.44 4 usually ships 14-22 days
29 273-4457 Washer (OBSOLETE) Call for price 4 usually ships 14-22 days
30 273-9324 Screw M10 x 30 cylinder head $7.37 4 usually ships 14-22 days
31 273-4645 Carbon brush set $672.10 1 usually ships 14-22 days
32 273-4646 Carbon brush cap (OBSOLETE) Call for price 1 usually ships 14-22 days
33 273-7805 Drive tire $968.84 1 usually ships 14-22 days
34 273-4647 Brake (OBSOLETE) Call for price 1 (includes 38) usually ships 14-22 days
36 273-4648 Brake retrofit kit $89.10 1 usually ships 14-22 days
38 273-4649 Brake coupler $335.50 1 usually ships 14-22 days
