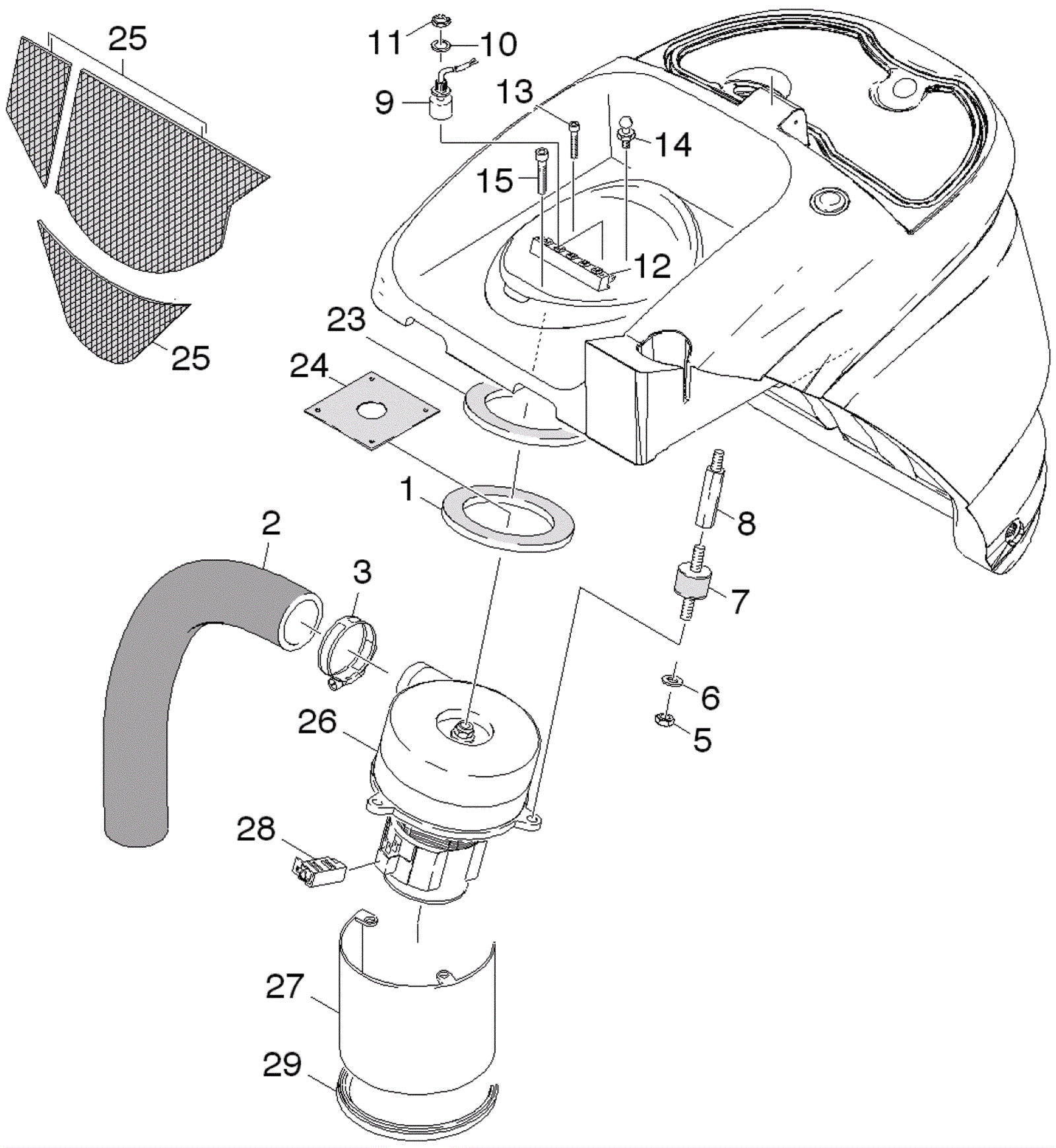

SABERGLIDE 30 Turbine Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-9056 Joint ring $10.78 1 usually ships 7-19 days
2 173-9053 Suction tube $151.80 1 usually ships 1-5 days
3 273-9202 Hose clip $15.62 1 usually ships 7-19 days
5 183-0079 Hex nut $1.35 3 usually ships 1-5 days
6 999-1261 Washer M6 flat stainless steel $0.99 3 ships same day
7 273-7793 Rubber buffer $8.80 3 usually ships 7-19 days
8 273-4600 Bolt M8 x 12 stud $22.00 3 usually ships 7-19 days
9 273-4601 Float valve $27.72 1 usually ships 7-19 days
10 273-9184 Flat gasket $5.03 1 usually ships 7-19 days
11 273-9180 Locknut $1.52 1 usually ships 7-19 days
12 273-4602 Terminal clamp $40.70 1 usually ships 7-19 days
13 273-4603 Screw M3 x 18mm cylinder head (OBSOLETE) Call for price 2 usually ships 7-19 days
14 273-4604 Bolt $7.37 1 usually ships 7-19 days
15 373-1419 Screw M6 x 16mm $1.69 1 usually ships 7-19 days
23 273-7792 Joint ring $17.27 1 usually ships 7-19 days
24 273-4605 Tank stiffener plate $130.90 1 usually ships 7-19 days
25 273-4606 Sound insulation $31.35 1 usually ships 7-19 days
26 273-3556 24V vacuum motor $622.60 1 usually ships 7-19 days
27 273-4607 Vacuum motor plate $69.30 1 usually ships 7-19 days
28 273-4608 Carbon brush set $22.44 1 usually ships 7-19 days
29 273-9278 Edge protection $18.48 1 (to order as cut goods) usually ships 7-19 days
