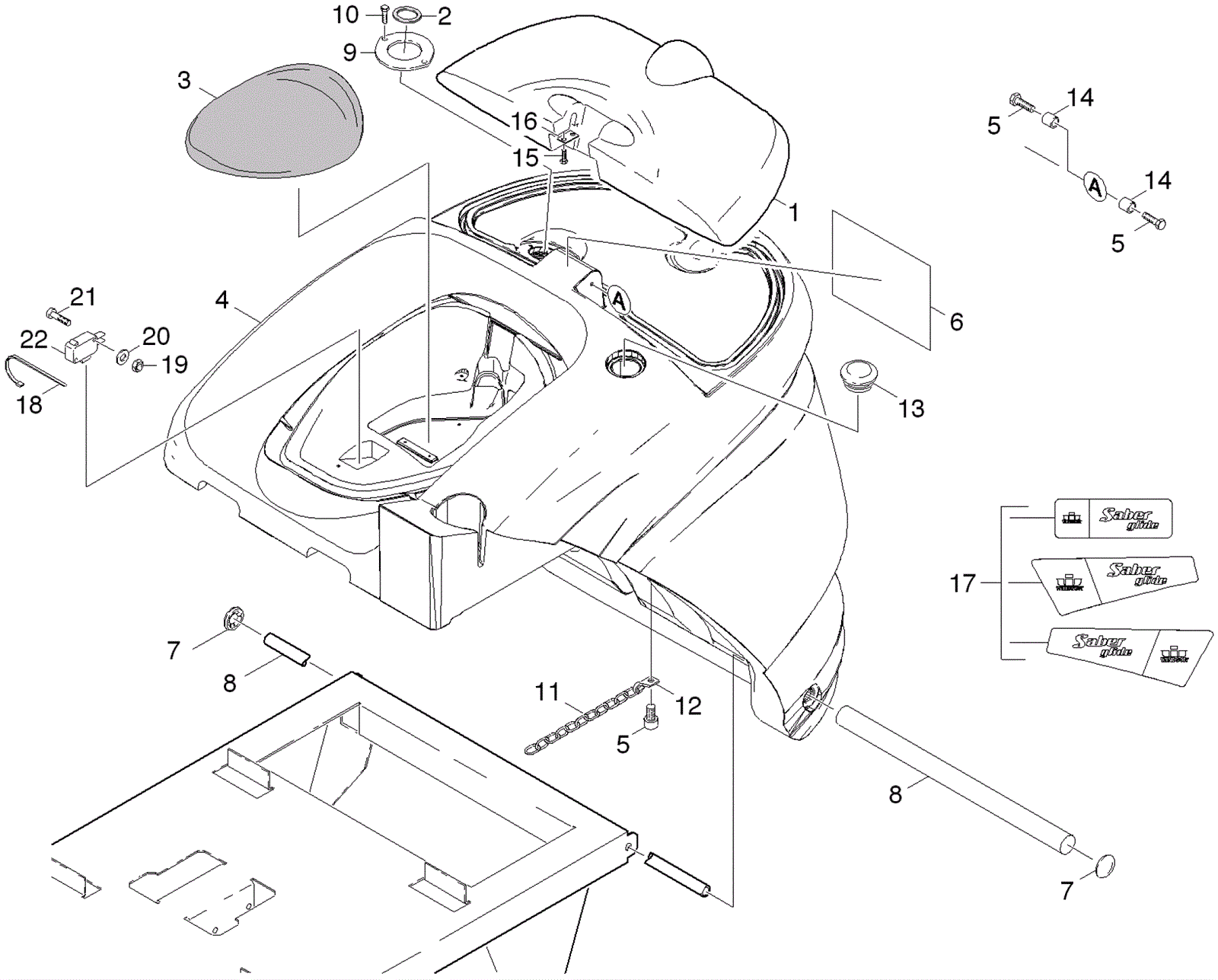

SABERGLIDE 30 Waste Water Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-4588 Tank cover $222.20 1 usually ships 7-19 days
2 173-6230 Joint ring $8.25 1 usually ships 7-19 days
3 273-4589 Seat housing $446.60 1 usually ships 7-19 days
4 273-4590 Waste water tank (OBSOLETE) Call for price 1 usually ships 7-19 days
5 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 2 ships same day
6 273-4591 Decal (OBSOLETE) Call for price 1 usually ships 7-19 days
7 273-4592 Lock washer $5.23 2 usually ships 7-19 days
8 273-4593 Axle $14.41 1 usually ships 7-19 days
9 373-1425 Plate (OBSOLETE) $22.66 1 usually ships 7-19 days
10 273-0325 Screw M5 x 12 cylinder head $2.18 2 usually ships 7-19 days
11 273-4594 Chain zinc plated (OBSOLETE) Call for price 1 (to order as cut goods) usually ships 7-19 days
12 273-4595 Bracket plate $20.13 2 usually ships 7-19 days
13 273-4596 Plug $9.68 1 usually ships 7-19 days
14 273-7484 Sleeve $7.59 2 usually ships 1-5 days
15 183-0281 Screw $1.35 4 usually ships 8-21 days
16 273-4597 Cap strap $5.50 2 usually ships 7-19 days
17 273-4556 Decal set (OBSOLETE) Call for price 1 usually ships 7-19 days
18 273-4485 Cable tie $0.99 1 usually ships 7-19 days
19 273-9235 Nut M 2-8 $3.47 2 usually ships 7-19 days
20 273-8091 Washer $1.54 2 usually ships 7-19 days
21 273-9234 Screw M2 x 20 $0.99 2 usually ships 7-19 days
22 373-1764 Microswitch $45.43 1 usually ships 7-19 days
