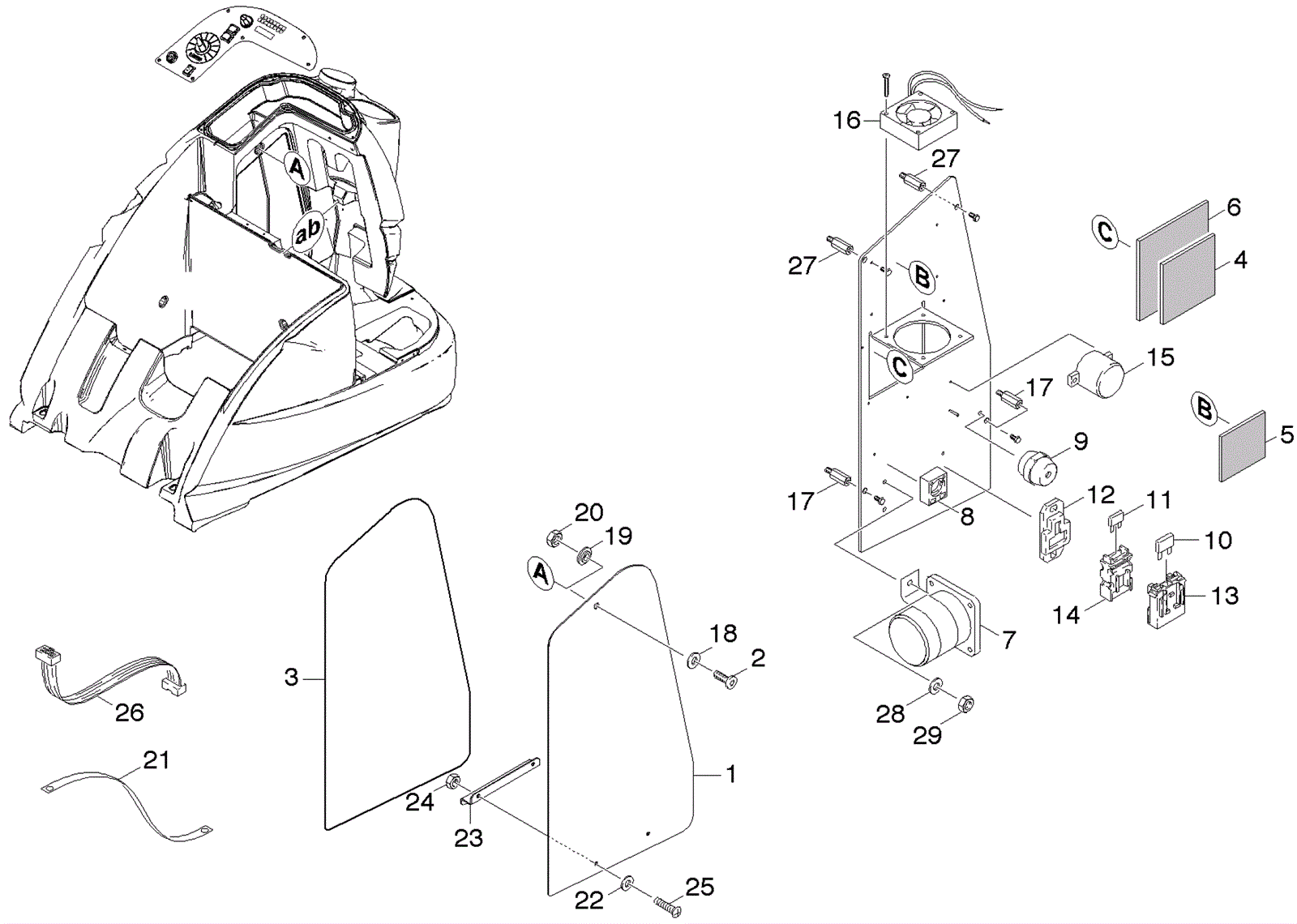

SABERGLIDE 30 Electronic Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-4573 Control system covering cap plate $87.45 1 usually ships 7-19 days
2 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 1 ships same day
3 273-9204 Sealing profile $14.30 1 (to order as cut goods) usually ships 7-19 days
4 273-4574 Circuit board drive module $1,848.00 1 usually ships 7-19 days
5 273-9378 Control circuit board lifting module $1,081.30 1 usually ships 7-19 days
6 273-8395 Circuit control board $2,436.50 1 usually ships 7-19 days
7 273-8405 Contactor $485.10 1 usually ships 7-19 days
8 273-8396 Fuse $80.30 2 usually ships 7-19 days
9 N/A Not available Call for price 1 (stockpiling) usually ships 3-26 days
10 273-4576 Fuse insert $5.50 1 usually ships 7-19 days
11 273-9383 Fuse insert $9.19 1 usually ships 7-19 days
12 273-9384 Plate $5.50 1 usually ships 7-19 days
13 273-8402 Fuse holder $8.47 1 usually ships 7-19 days
14 273-8403 Fuse holder $18.59 1 usually ships 7-19 days
15 273-6403 Horn $118.80 1 usually ships 7-19 days
16 273-4540 12V blower $92.40 1 usually ships 7-19 days
17 273-4577 Bolt $9.68 2 usually ships 7-19 days
18 273-4578 Washer $1.69 1 usually ships 7-19 days
19 273-4579 M6 insulating sleeve $1.98 1 usually ships 7-19 days
20 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
21 273-4580 200mm earth strap $15.07 1 usually ships 7-19 days
22 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
23 273-9201 Electric plate hook $35.53 1 usually ships 7-19 days
24 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
25 273-8272 Screw M5 x 10 $1.40 2 usually ships 7-19 days
26 273-8411 Bus cable $102.30 1 usually ships 7-19 days
27 273-4581 Bolt $4.07 2 usually ships 7-19 days
28 273-7480 Washer 6 $4.18 1 usually ships 1-5 days
29 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
