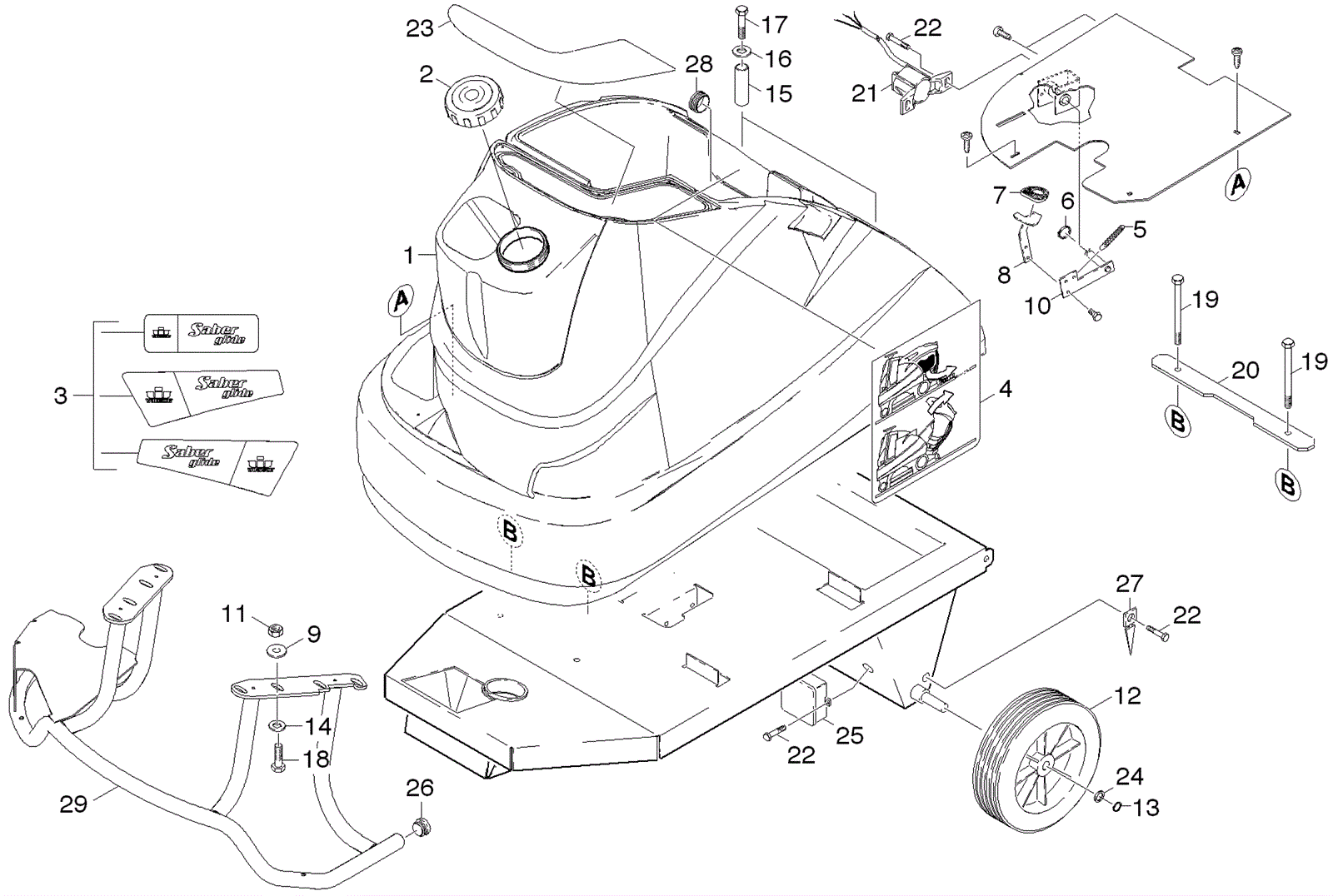

SABERGLIDE 30 Base Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-4554 Fresh water tank (OBSOLETE) Call for price 1 usually ships 7-19 days
2 273-4555 Complete cover $157.30 1 usually ships 7-19 days
3 273-4556 Decal set (OBSOLETE) Call for price 1 usually ships 7-19 days
4 273-4557 Tank decal $7.26 1 usually ships 7-19 days
5 273-9304 Extension spring $5.61 1 usually ships 7-19 days
6 173-6200 Locking ring 16 x 1 $6.44 1 usually ships 7-19 days
7 273-9221 Pedal coating $14.41 1 usually ships 7-19 days
8 273-9226 Pedal plate $14.30 1 usually ships 7-19 days
9 273-8187 Washer $1.03 8 usually ships 7-19 days
10 273-4559 Pedal lever complete $44.44 1 usually ships 7-19 days
11 999-1651 Nut M8-1 hex stainless steel $2.83 8 ships same day
12 273-4560 Oil resistant wheel $588.50 2 usually ships 7-19 days
13 273-8202 Locking ring $1.69 2 usually ships 7-19 days
14 999-0150 Washer #8 medium split lock $0.99 8 ships same day
15 273-4561 Sleeve $5.06 2 usually ships 7-19 days
16 273-8151 Washer $1.28 2 usually ships 7-19 days
17 273-8237 Screw M8 x 50 hex head $5.83 2 usually ships 7-19 days
18 183-4164 Screw, hex head (Obsolete) $4.49 8 usually ships 1-5 days
19 999-9153 Screw M8-1.25 x 130mm hex head stainless steel $0.99 2 usually ships 11-24 days
20 273-4562 Fresh water tank plate $28.71 1 usually ships 7-19 days
21 273-4563 Tachograph sensor $423.50 1 usually ships 7-19 days
22 173-6287 Screw M5 x 16mm $1.94 4 usually ships 1-5 days
23 173-9040 Rubber seal string $6.27 1 (to order as cut goods) usually ships 1-5 days
24 273-4564 Shim ring (OBSOLETE) Call for price 2 usually ships 7-19 days
25 273-4565 Junction box $9.57 1 usually ships 7-19 days
26 273-9165 Plug $4.54 2 usually ships 7-19 days
27 273-9258 Grounding tongue $89.10 1 usually ships 7-19 days
28 273-4566 42mm plug $4.68 1 usually ships 7-19 days
29 273-4567 Ram protection complete $883.30 1 usually ships 7-19 days
