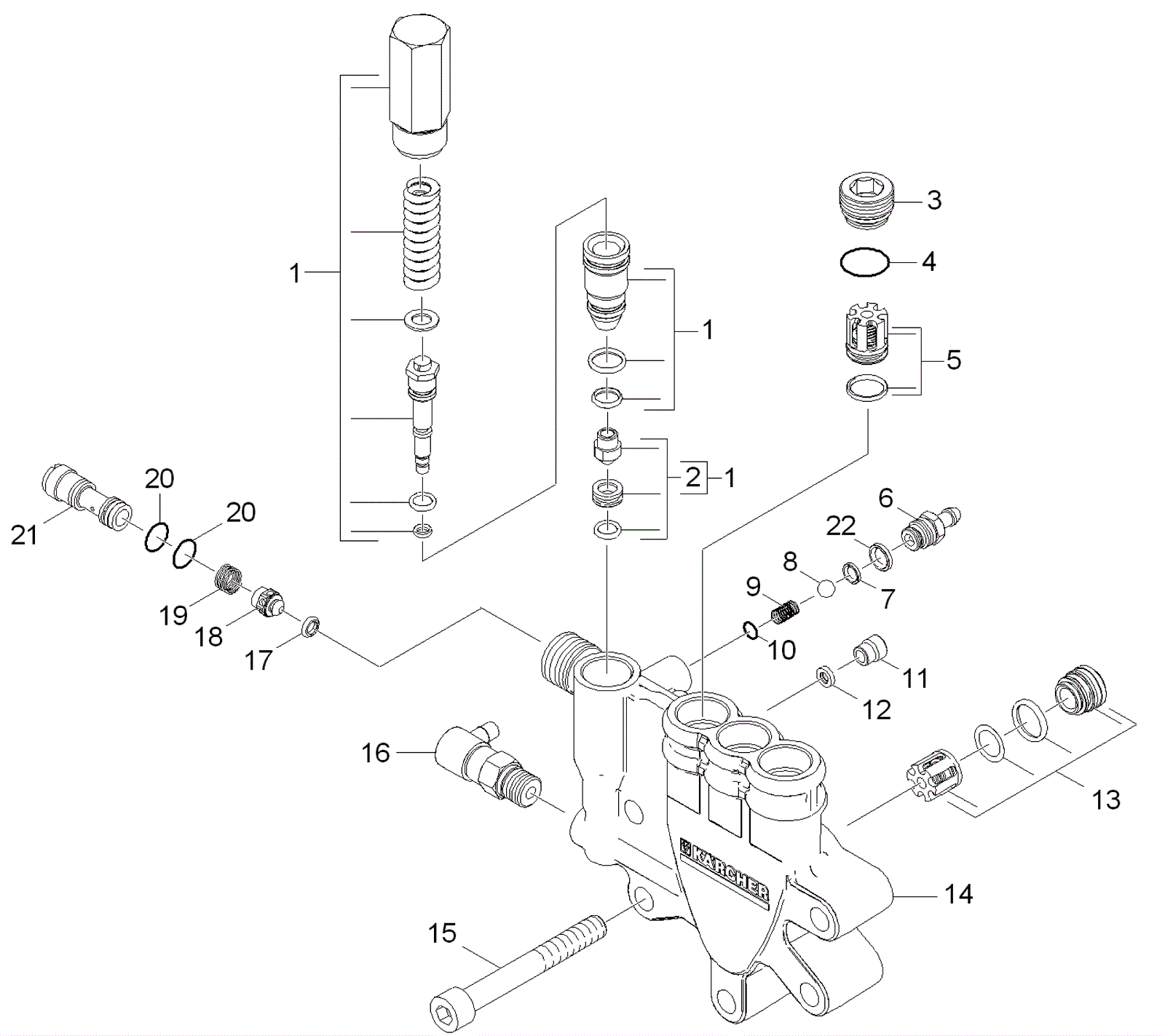

G4000 OH Cylinder Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-9825 Pump unloader assembly $110.00 1 (includes #2) usually ships 14-22 days
2 273-9826 Excess spare parts set $23.21 1 usually ships 14-22 days
3 273-9827 Plug M22x1 $6.59 3 usually ships 14-22 days
4 273-9828 O-ring seal $2.42 3 usually ships 14-22 days
5 273-9829 Valve $92.95 1 usually ships 14-22 days
6 273-9810 Chemistry nipple $4.74 1 usually ships 14-22 days
7 273-0476 O-ring seal $1.94 1 usually ships 14-22 days
8 273-0475 Sphere $0.99 1 usually ships 14-22 days
9 273-9806 Helical spring $3.08 1 usually ships 14-22 days
10 173-5872 O-ring 6 x 2 $7.04 1 usually ships 14-22 days
11 273-9830 Plug M10x1 $6.22 1 usually ships 14-22 days
12 273-9831 Plate safety $5.12 1 usually ships 14-22 days
13 273-9832 Spare part list pump $239.87 1 usually ships 11-21 days
14 273-9833 Machined cylinder head $438.90 1 usually ships 14-22 days
15 273-9834 Cylinder head screw M10x80 $5.39 5 usually ships 14-22 days
16 273-9835 Thermal relief valve $9.74 1 usually ships 14-22 days
17 273-2091 O ring seal $1.94 1 usually ships 14-22 days
18 273-9836 Back pressure valve pin $6.71 1 usually ships 14-22 days
19 273-9837 Spring-valve pin $2.78 1 usually ships 14-22 days
20 273-7976 Gasket $4.48 2 usually ships 14-22 days
21 273-9838 Nozzle insert $20.24 1 usually ships 14-22 days
22 273-9809 O-ring seal $2.49 1 usually ships 14-22 days
