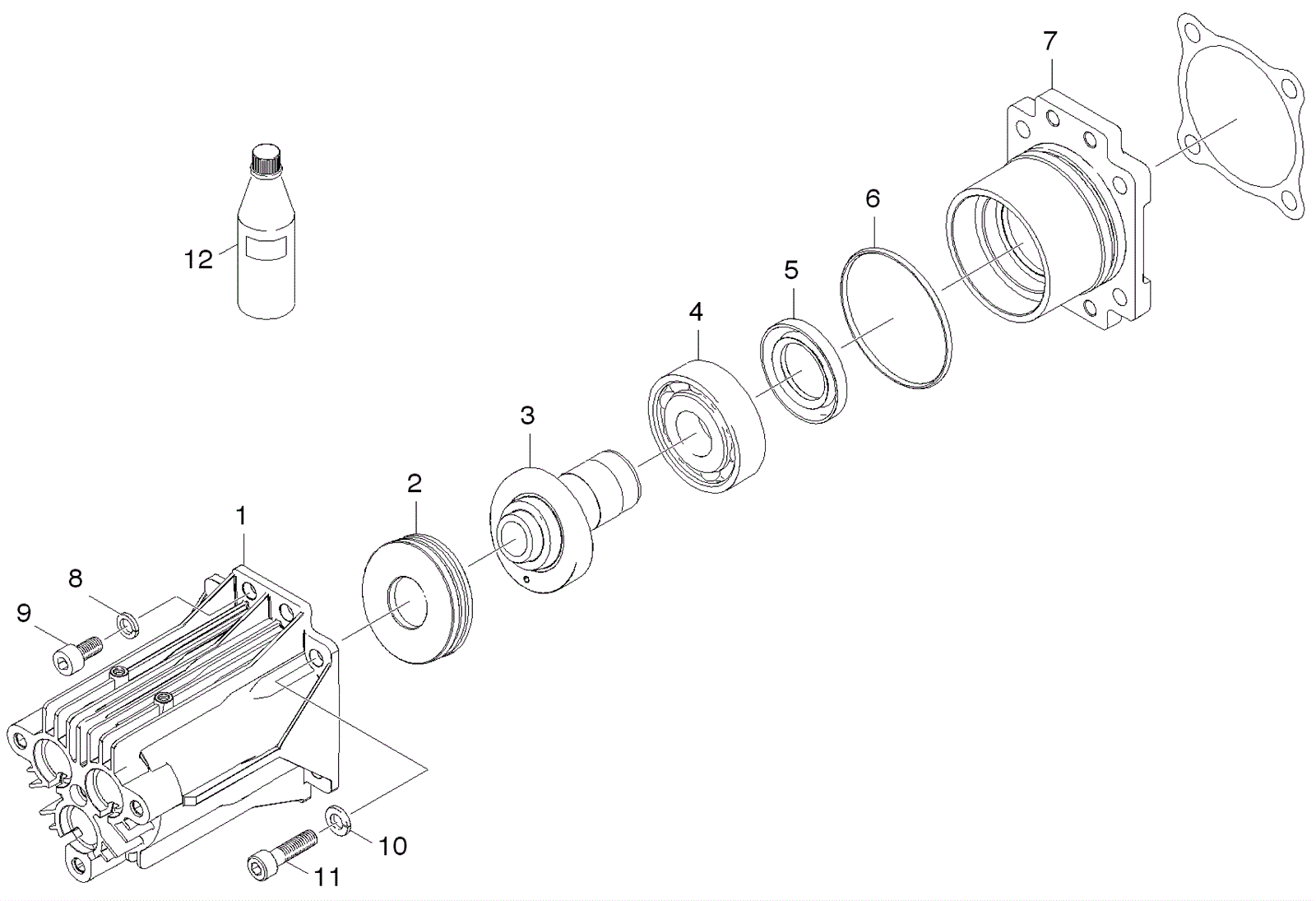

G3025 OH Transmisson Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-9814 Short oil housing and piston guide $23.75 1 usually ships 7-19 days
2 273-9493 Grooved ball bearing $4.74 1 usually ships 7-19 days
3 273-9815 Molded sleeve wobble shaft machine $51.04 1 usually ships 7-19 days
4 273-9816 Angular contact ball bearing $16.49 1 usually ships 7-19 days
5 273-9817 Radial seal 30x52x7 $14.85 1 usually ships 7-19 days
6 273-9818 O-ring seal 63, 17x2, 62 $3.03 1 usually ships 7-19 days
7 273-9819 Machined flange spacer Call for price 1 usually ships 7-19 days
8 273-9820 Spring washer $1.21 4 usually ships 7-19 days
9 183-7547 Screw $1.35 4 usually ships 1-5 days
10 273-9455 Washer $0.99 4 usually ships 7-19 days
11 273-9821 GR 5 SHCS THRU HARDENED ZC 5/16-24x1 $3.75 4 usually ships 7-19 days
12 273-9607 1 liter engine oil $96.80 1 usually ships 7-19 days
