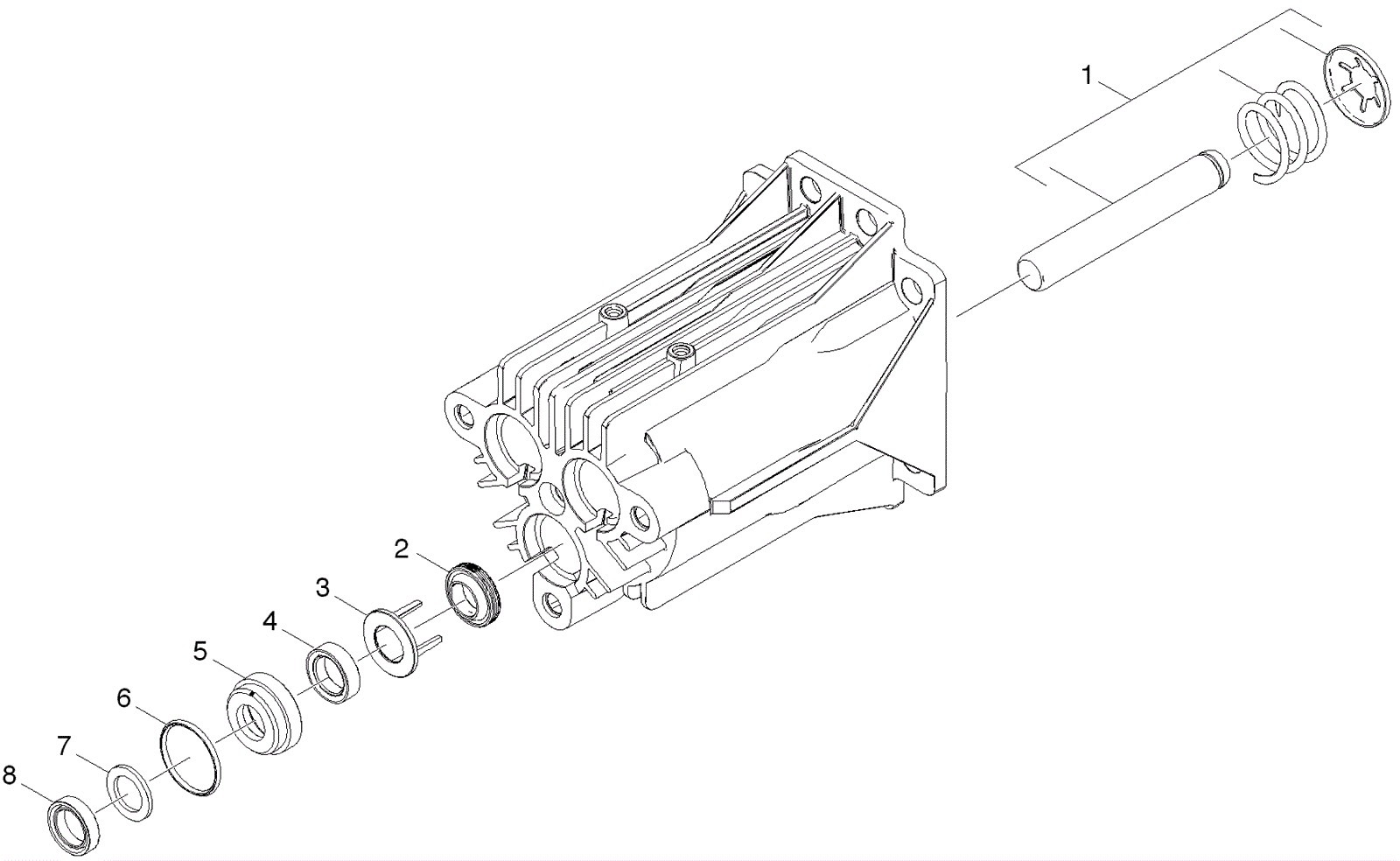

G3025 OH Piston Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-9813 Spare parts set $8.31 3 usually ships 7-19 days
2 273-7996 Grooved ring $5.89 3 usually ships 7-19 days
3 273-9484 Oil seal and seal spacer $1.87 3 usually ships 7-19 days
4 273-9483 Grooved ring $0.99 3 usually ships 7-19 days
5 273-9482 Housing low pressure seal $4.73 3 usually ships 7-19 days
6 273-9481 O-ring seal $2.00 3 usually ships 7-19 days
7 273-9480 Rear ring high pressure seal $2.35 3 usually ships 7-19 days
8 273-9479 High pressure seal $3.87 3 usually ships 7-19 days
