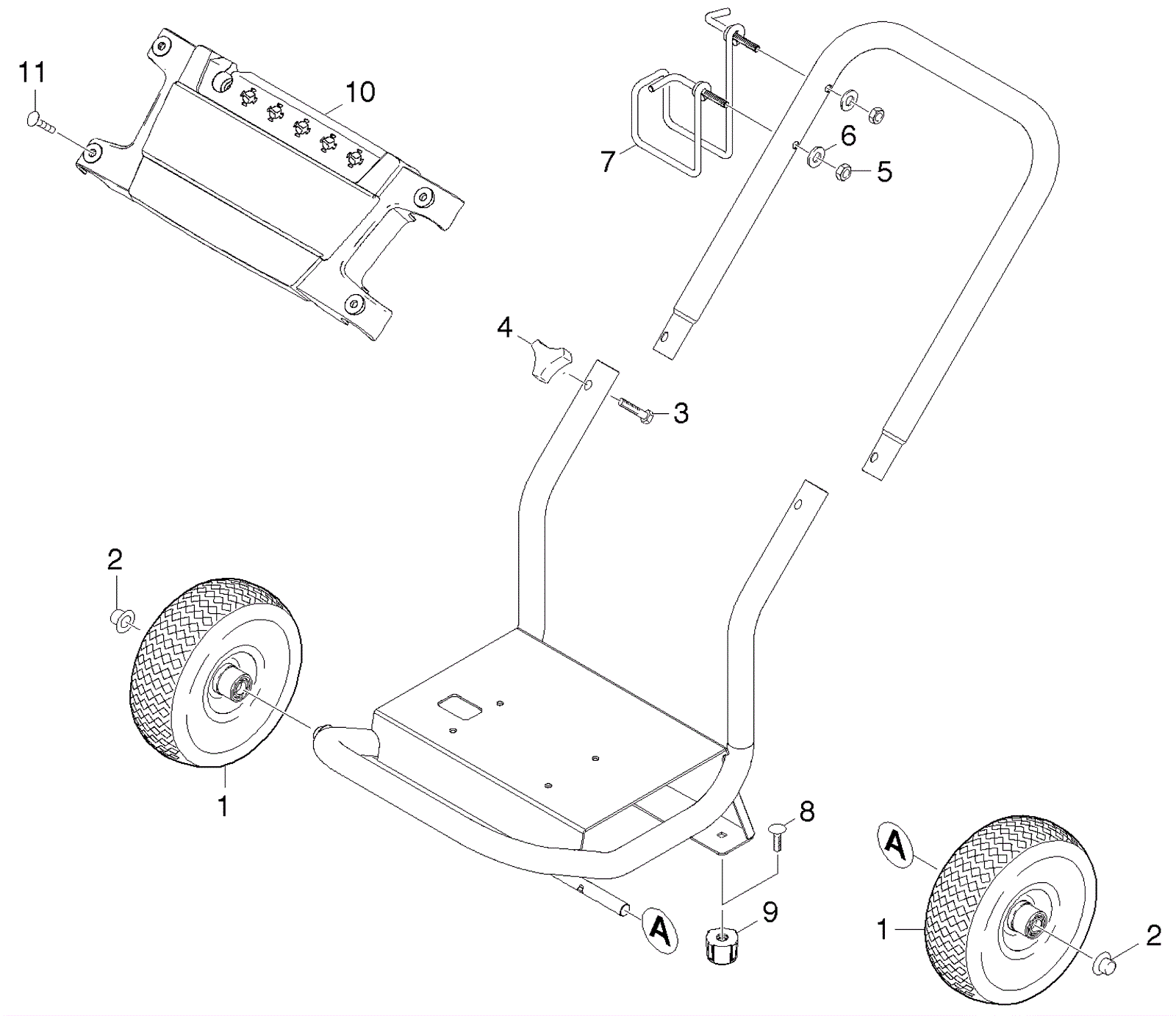

G3025 OH Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 373-1019 10 inch wheel assembly steel rim with tube (gray) $24.97 2 usually ships 7-19 days
2 273-9464 Cap $5.08 2 usually ships 7-19 days
4 273-7965 Control knob $1.40 2 usually ships 7-19 days
5 273-7964 Nut $1.52 2 usually ships 7-19 days
6 273-7963 Washer $0.45 2 usually ships 7-19 days
7 273-9465 Right hand hanger $6.16 1 usually ships 7-19 days
8 999-1575 Bolt 5/16-18 x 1/2 carriage head zinc plated $0.99 1 usually ships 1-5 days
9 273-7971 Rubber buffer $2.04 1 ships same day
10 273-9466 Name plate $17.05 1 usually ships 7-19 days
11 273-9467 Nylon rivet $1.17 4 usually ships 7-19 days
