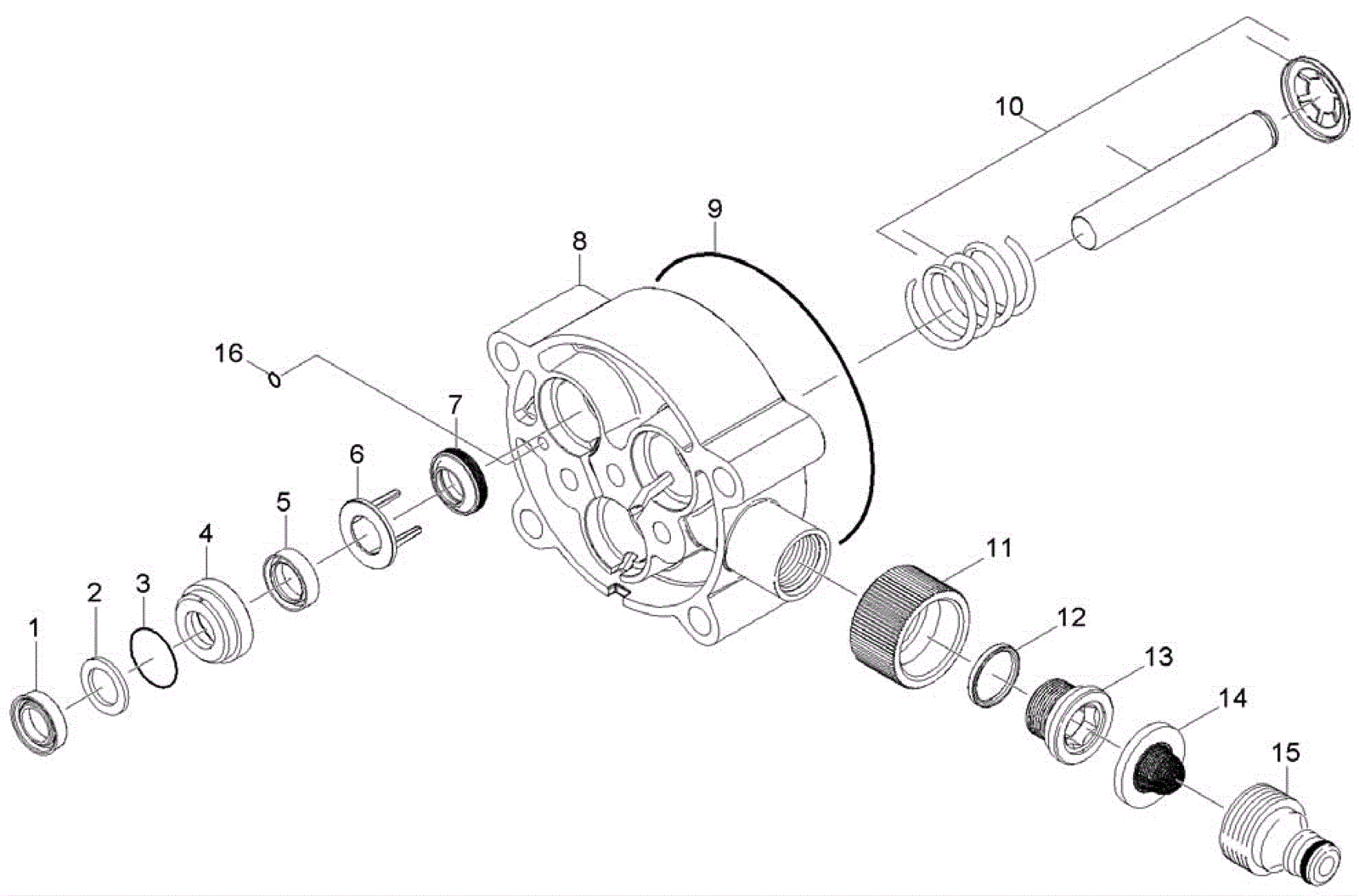

G3200 XH Piston Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-9479 High pressure seal $3.87 3 usually ships 7-19 days
2 273-9480 Rear ring high pressure seal $2.35 3 usually ships 7-19 days
3 273-9481 O-ring seal $2.00 3 usually ships 7-19 days
4 273-9482 Housing low pressure seal $4.73 3 usually ships 7-19 days
5 273-9483 Grooved ring $0.99 3 usually ships 7-19 days
6 273-9484 Oil seal and seal spacer $1.87 3 usually ships 7-19 days
7 273-7996 Grooved ring $5.89 3 usually ships 7-19 days
8 273-9485 Piston guide $29.04 1 usually ships 7-19 days
9 273-8020 Gasket $5.17 1 usually ships 7-19 days
10 273-9486 Piston pump $24.75 3 usually ships 7-19 days
11 273-8613 Female hose connector $4.13 1 usually ships 7-19 days
12 273-8614 O-ring $1.32 1 usually ships 7-19 days
13 273-8615 Male adapter $1.76 1 usually ships 7-19 days
14 273-8616 Filter $0.88 1 ships same day
15 273-8617 Garden hose adapter $2.31 1 usually ships 7-19 days
16 273-9487 O-ring seal $0.99 1 usually ships 7-19 days
