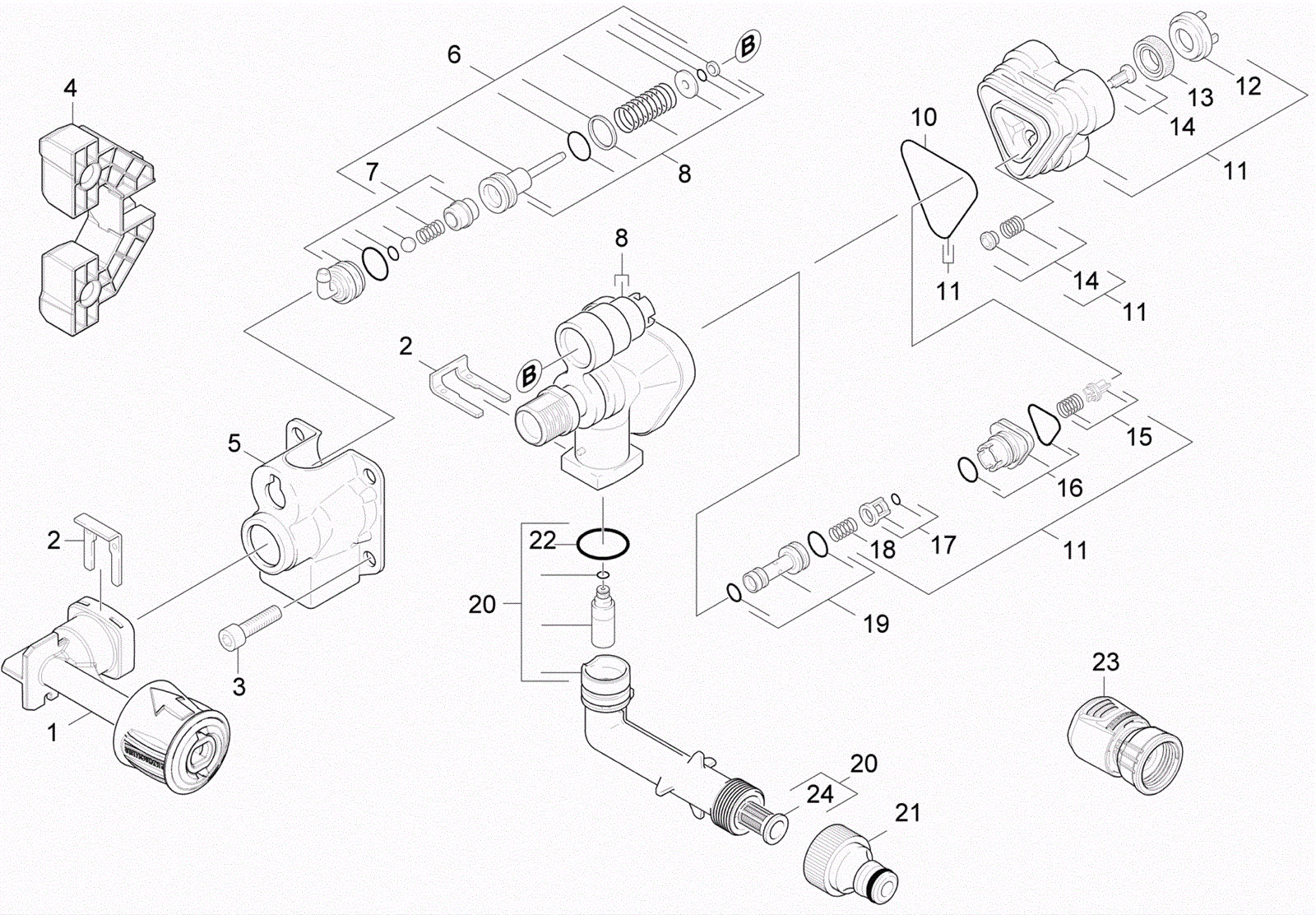

K3.740 Housing Assembly - 2

#PartDescriptionPriceReqNotesAvailability
1 273-9675 High-pressure outlet $21.37 1 usually ships 7-19 days
2 173-7653 Metal fork $2.15 2 usually ships 7-19 days
3 173-7654 Screw M8 x 55mm class 8.8 $1.50 4 usually ships 7-19 days
4 273-9676 Bracket pump (bridge) $4.39 1 usually ships 7-19 days
5 173-7655 Cover $33.07 1 usually ships 7-19 days
6 173-7661 Pressure piston and detergent nipple $32.34 1 usually ships 7-19 days
7 173-7656 Cleaning agents aspiration $8.31 1 usually ships 7-19 days
8 173-7657 Control head spare parts set $65.33 1 usually ships 7-19 days
10 173-7659 Foam seal $1.41 1 usually ships 7-19 days
11 173-7660 Cylinder head assembly $40.48 1 usually ships 7-19 days
12 173-7670 Supporting disk $4.73 3 usually ships 7-19 days
13 273-9483 Grooved ring $0.99 3 usually ships 7-19 days
14 173-7662 Moulded part assembly $11.87 1 usually ships 7-19 days
15 173-7663 Valve spare part set $8.31 1 usually ships 7-19 days
16 173-7664 Joining piece $11.87 1 usually ships 7-19 days
17 173-7665 Cage assembly $7.12 1 usually ships 7-19 days
18 273-9668 Spring $2.35 1 usually ships 7-19 days
19 173-7667 Injector assembly $17.81 1 usually ships 7-19 days
20 273-9677 Suction connection Call for price 1 usually ships 7-19 days
21 273-8517 Connection $10.89 1 usually ships 7-19 days
22 273-9678 O-ring 16x2-7 Call for price 1 usually ships 7-19 days
23 273-9139 Coupler with aqua decal $8.31 1 usually ships 7-19 days
24 173-7669 Long line filter $7.12 1 usually ships 7-19 days
