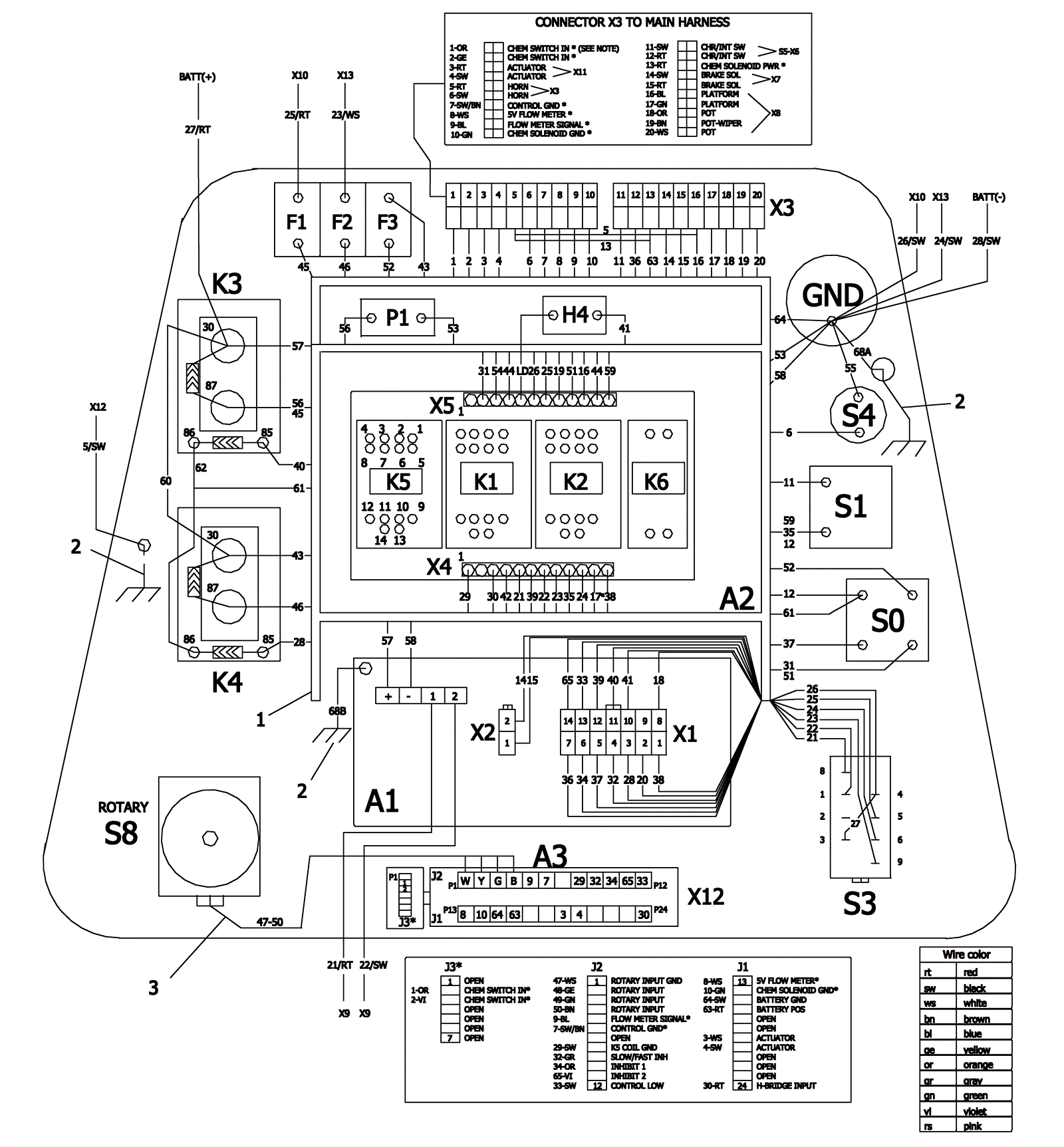

Chariot 2 iScrub 20 Deluxe Orb Wiring Diagram 2

#PartDescriptionPriceReqNotesAvailability
1 273-7607 Wiring harness $527.30 1 usually ships 1-5 days
2 273-7101 I-drive harness $33.90 1 usually ships 1-5 days
3 273-6672 Rotary switch harness $21.78 1 usually ships 14-22 days
