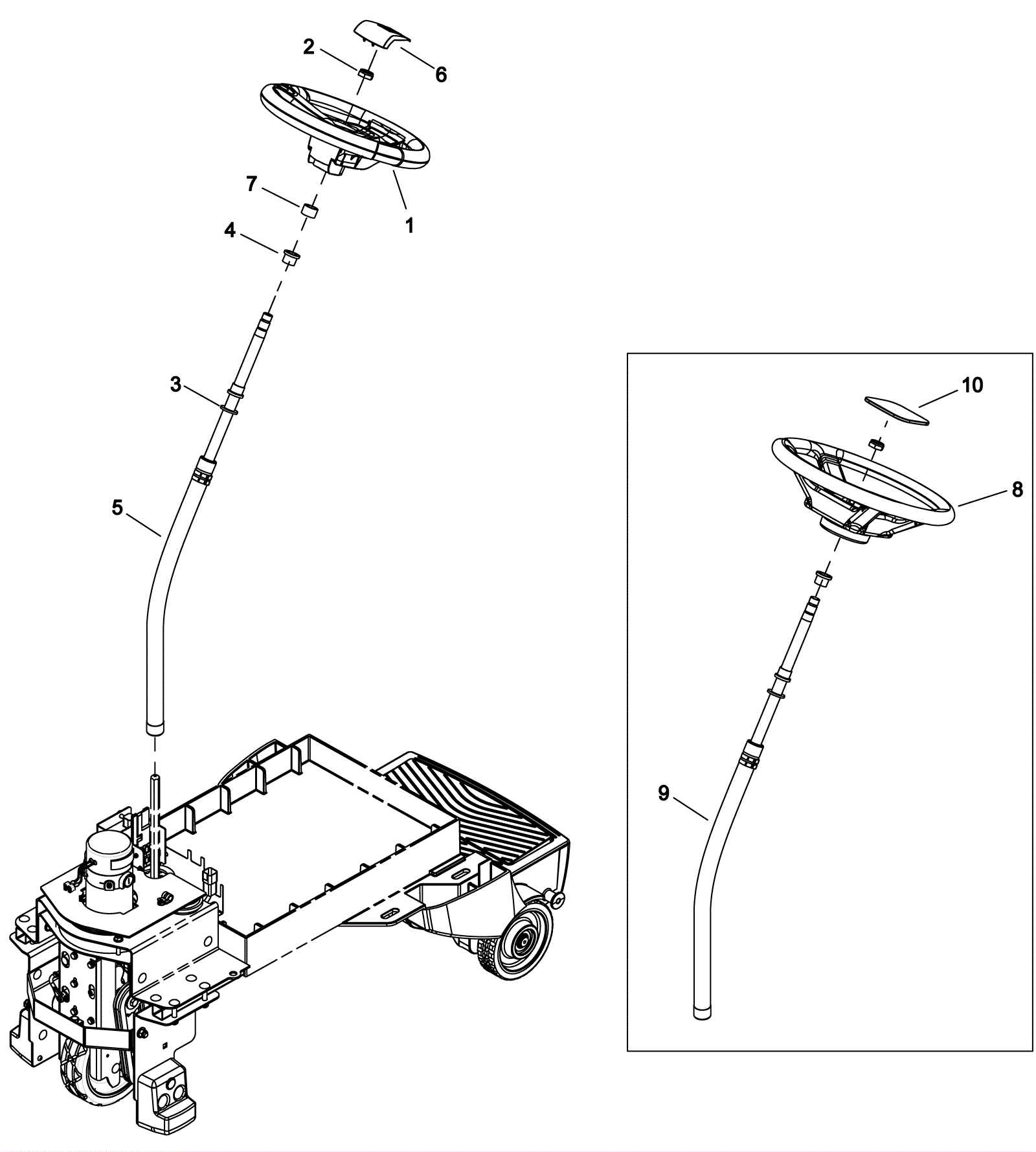

Chariot 2 iScrub 20 Deluxe Orb Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7093 Steering wheel $193.03 1 usually ships 14-22 days
2 173-5057 Nut 5/8-16 elastic stop $0.99 1 usually ships 14-22 days
3 999-9154 Washer 3/4 flat nylon $1.45 1 usually ships 12-18 days
4 173-7161 Flanged bearing $16.13 2 usually ships 14-22 days
5 273-7094 Steering shaft assembly $394.30 1 usually ships 14-22 days
6 273-3220 Steering wheel cap $36.01 1 usually ships 1-5 days
7 273-7096 Bearing 3/4 x 1 $10.19 1 usually ships 14-22 days
8 173-5551 Steering wheel $351.92 1 usually ships 14-22 days
9 273-7094 Steering shaft assembly $394.30 1 usually ships 14-22 days
10 173-5550 Steering wheel cover $20.01 1 usually ships 14-22 days
