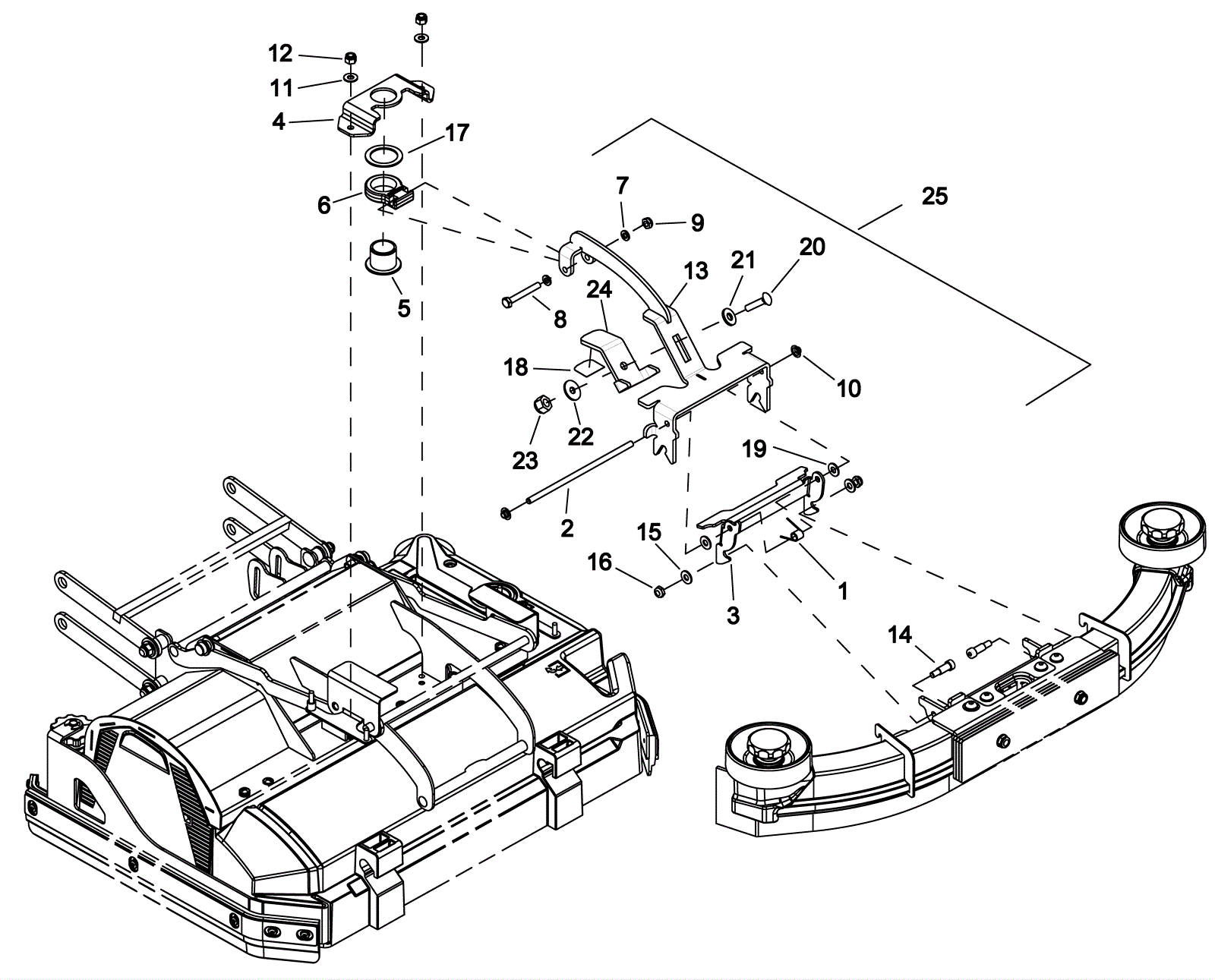

Chariot 2 iScrub 20 Deluxe Orb Squeegee Linkage Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 273-7081 Torsion spring $22.66 1 usually ships 1-5 days
2 273-7082 Squeegee latch shaft $22.66 1 usually ships 7-19 days
3 273-7083 Squeegee latch bracket $64.90 1 usually ships 1-5 days
4 273-7084 Swivel mount bracket $45.43 1 usually ships 1-5 days
5 173-7235 Flanged bushing $31.90 1 usually ships 1-5 days
6 173-7236 Bracket $43.67 1 usually ships 1-5 days
7 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
8 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 1 ships same day
9 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 1 ships same day
10 173-8413 Nut 1/4 cap $0.99 2 ships same day
11 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
12 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
13 273-7091 Squeegee mount bracket $174.93 1 usually ships 7-19 days
14 173-7252 Bolt 5/16 x 5/8 shoulder stainless steel $21.12 2 usually ships 7-19 days
15 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
16 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
17 273-7086 Washer $4.18 1 usually ships 1-5 days
18 273-7087 Squeegee lift pad $25.74 1 usually ships 7-19 days
19 273-7088 Washer nylon (black) $1.40 2 usually ships 1-5 days
20 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 1 ships same day
21 173-3985 Washer 7/16 flat stainless steel $1.21 1 usually ships 7-19 days
22 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 1 ships same day
23 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
24 273-7089 Deck adjustment bracket $28.16 1 usually ships 7-19 days
25 273-7090 Squeegee linkage assembly $336.60 1 (includes 1, 2, 3, 7, 8, 9, 10, 13, 15, 16, 18 -24) usually ships 7-19 days
